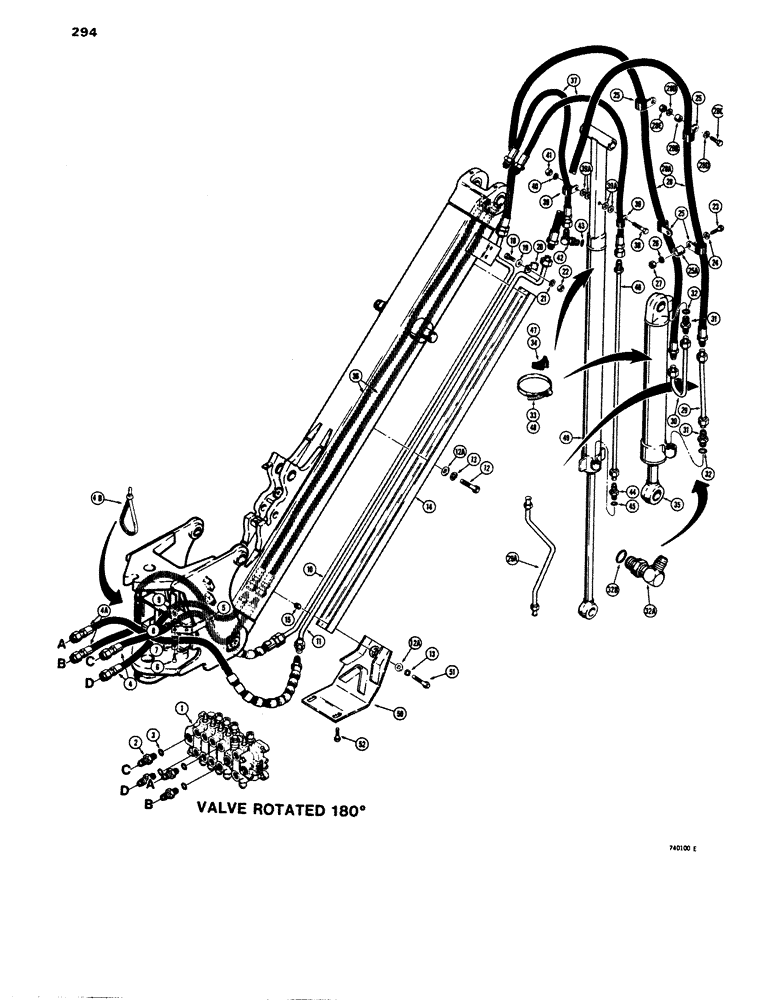

Запчасти Case 680E (294) - BACKHOE EXTENDABLE DIPPER HYDRAULIC CIRCUIT, BEFORE TRACTOR (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

VALVE - backhoe and extendable control, parts list figure 314

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - straight, male, Incl. Ref. 3

4шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting

1шт.

4

L77825

HOSE

- to extension cylinders, 58" (1473 mm) long

2шт.

On models without extendable dipper, L77825 hoses are used as bucket cylinder circuit hoses, see Figure 290 for these hoses and hose clamps.

1шт.

4a

L74090

HOSE ASSY.

HOSE - to bucket cylinders, 58" (1473 mm) long

2шт.

4b

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - hose tie

2шт.

5

L59101

BRACKET - clamp support, Serial Range: welded-tower

2шт.

6

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

7

D40471

CLAMP

- bucket cylinder hoses

4шт.

8

92-6

LOCK WASHER,3/8"

4шт.

9

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

10

L58748

TUBE,0.75" OD

- valve to bucket cylinder, R.H., used with L58351 hose

1шт.

10

L73190

HYD TUBE,0.75" OD x 95.2, 5.65" L

TUBE - valve to bucket cylinder, L.H., used with L73182 or L78165 hose

1шт.

11

L58746

TUBE,0.75" OD

- valve to bucket cylinder, L.H., used wth L58351 hose

1шт.

11

L73192

TUBE,0.75" OD x 95.2, 5.65" L

- valve to bucket cylinder, R.H., used with L73182 or L78165 hose

1шт.

12

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

12a

95-8

WASHER,1/2"

flat 1/2"

3шт.

13

92-8

LOCK WASHER,1/2"

3шт.

14

L58750

GUARD

- boom tubes, lower

1шт.

15

L58752

TUBE SPACER,13.53mm ID x 19.05mm OD x 18.28mm L

SPACER - tube, if used

3шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

19

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

20

L25930

CLAMP

- bucket tubes, upper

2шт.

21

92-6

LOCK WASHER,3/8"

2шт.

22

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

23

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2-4шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

If used Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

24

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

25

D40471

CLAMP

- bucket cylinder hoses

4шт.

25a

L14794

SPACER

- lower clamp, 1.09" (28 mm) long

2-4шт.

26

92-6

LOCK WASHER,3/8"

2-4шт.

27

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2-4шт.

28

L58351

SPARE PART

HOSE - at bucket cylinder, 108" (2743 mm) long, used before sn. 9122310 except for 9122278 and 9122290

2шт.

28

L73182

HOSE

- at bucket cylinder, 96" (2438 mm) long, used on sn. 9122278, 9122290 and 9122310 thru 9124627

2шт.

28a

L78165

HOSE

- at bucket cylinder, 98" (2489 mm) long, Start Serial: 9124628

2шт.

28b

L78175

HUB

SPACER - clamp, 1/2" (13 mm) long, if used

2шт.

28c

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2", if used

2-4шт.

28d

195-2034

WASHER,7/16" x 1 1/4" x .134"

- flat, 3/8", if used

2-4шт.

28e

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self lock, 3/8" - 16 NC, if used

2шт.

29

L57038

TUBE,0.75" OD x 18.65, 0.6" L

- bucket cylinder, at rod end

1шт.

29

L77131

TUBE,0.75" OD x 19.92, 1.75" L

- bucket cylinder, at rod end, used with Ref. 32A only

1шт.

29a

L100128

TUBE,0.79" OD

- bucket cylinder, at rod end, models with dual lever controls only, if used

1шт.

30

L58142

TUBE

- bucket cylinder, at closed end

1шт.

31

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

FITTING - male, straight, if used, Incl. Ref. 32

2шт.

32

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

32a

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

FITTING - male, 90 deg., if used, Incl. Ref. 32B

1шт.

32b

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

33

214-277

HOSE CLAMP,#100, 5.88" - 6.75", Type F Worm

CLAMP - tube to cylinder

1шт.

34

D38648

BLOCK

SPACER - tube

2шт.

35

REF

INSTRUCTION

CYLINDER - hydraulic, buck, see figure 364 or 366

1шт.

36

L58822

HOSE

- valve to extension cylinder, 107" (2718 mm) long

2шт.

On models without extendable dipper, L58822 hoses are used as bucket cylinder circuit hoses, see Figure 290 for hose clamps and hose guards used with these hoses.

1шт.

37

L76819

HOSE ASSY.,0.50" ID x 24.00", SAE 100R2

HOSE ASSY, , Valve to Extension Cylinder 0.50" ID x 24.00", SAE 100R2

2шт.

38

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

HHCS - 3/8" - 16 NC x 3-3/4"

1шт.

39

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- extension cylinder hose, subs to 515-23190

2шт.

39a

F12215

WASHER

- special, flat

4шт.

40

92-6

LOCK WASHER,3/8"

1шт.

41

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

42

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

FITTING - adjustable, 90 deg., Includes: Ref. 43

1шт.

43

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

44

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Fitting, male, straight, Incl. Ref 45 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

45

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

46

L54652

TUBE

- extension cylinder, rod end

1шт.

47

D38648

BLOCK

SPACER - tube

1шт.

48

214-265

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - tube

1шт.

49

REF

INSTRUCTION

CYLINDER - hydraulic, dipper extension, see figure 368 or 370

1шт.

50

L73034

BRACKET

GUARD - bucket tubes, if used

1шт.

51

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

HHCS - 1/2" - 13 NC x 2-1/4"

1шт.

52

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

Note at bottom of figure 296 - Should refer to part nbr L58822 (not D58822).

1шт.
