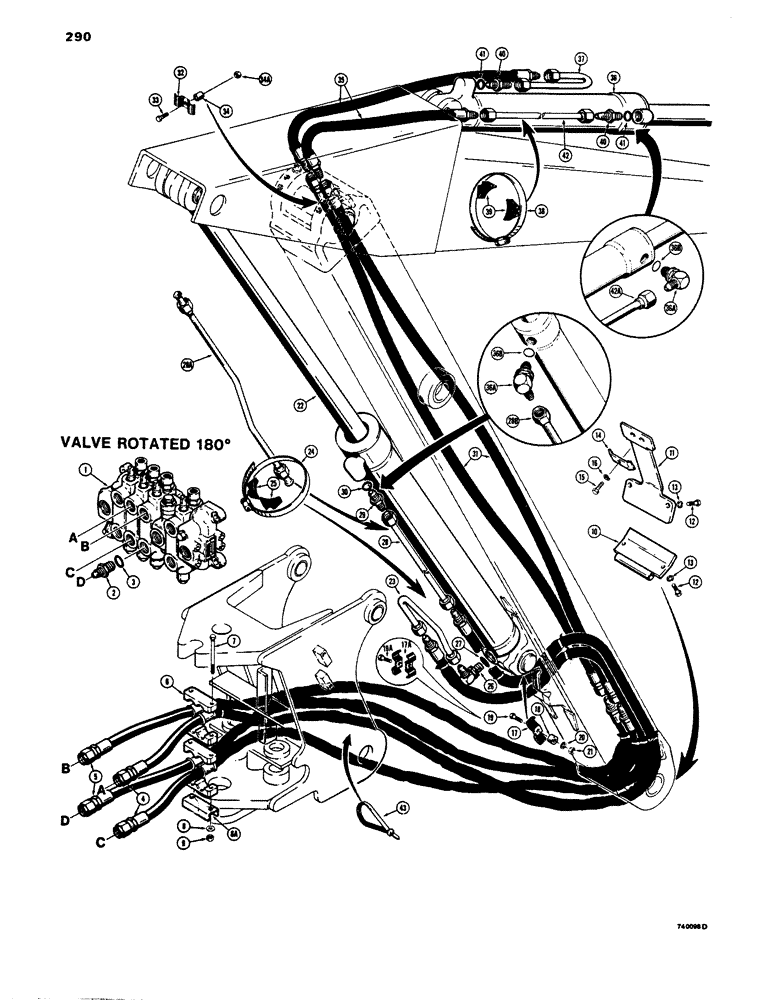

Запчасти Case 680E (290) - BACKHOE DIPPER AND BUCKET CYLINDER HYDRAULIC CIRCUIT (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

VALVE - backhoe control, parts list figure 314

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - male, straight, Incl. Ref. 3

4шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting

1шт.

4

L77824

HOSE

- valve to dipper cylinder, 102" (2597 mm) long

2шт.

5

L77825

HOSE

- valve to bucket cylinder, 58" (1473 mm) long

2шт.

On models with extendable dipper, Refs. 5 and 31 are used in the dipper extension circuit, and separate hoses are used for the bucket cylinder circuit, see Figure 294

1шт.

6

L58088

BLOCK

- hose support

4шт.

6a

L76698

ANGLE

BRACKET - support, hose block, if used

1шт.

7

13-680

CAPSCREW,Hex, 3/8" - 16 x 5", Gr 5

BOLT, Hex, 3/8"-16 x 5", G5

1-2шт.

7

13-688

BULB,Hex, 3/8" - 16 x 5 1/2", Gr 5

HHCS - 3/8" - 16 NC x 5-1/2", if used

1шт.

8

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

9

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self lock, 3/8" - 16 NC

2шт.

10

L79095

GUARD ASSY.

GUARD - hose protecting

1шт.

11

L78634

CLAMP

- hose guard

1шт.

12

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

HHCS - 1/2" - 13 NC x 3/4"

4шт.

13

92-8

LOCK WASHER,1/2"

4шт.

14

D40236

CLAMP

- hose to guard, at boom

1шт.

15

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

If used Hex, 3/8"-16 x 1 3/4", G5

1шт.

15

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

If used Hex, 3/8"-16 x 2", G5

1шт.

16

92-6

LOCK WASHER,3/8"

1шт.

17

R15257

CLAMP

- dipper hose to boom, single, if used

1шт.

17a

L78057

CLAMP

- dipper hose to boom, used in pairs, if used (Replaces D78057)

1шт.

18

D36040

BUSHING

SPACER - clamp

1шт.

19

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

19a

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

If used Hex, 3/8"-16 x 2", G5

1шт.

20

92-6

LOCK WASHER,3/8"

1шт.

21

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC

1шт.

22

REF

INSTRUCTION

CYLINDER - hydraulic, dipper, see figure 360 or 362

1шт.

23

L54749

TUBE,15, 2.4" L

- dipper cylinder, closed end

1шт.

24

214-273

HOSE CLAMP,#88, 5.12" - 6", Type F Worm

CLAMP - tube to dipper cylinder

1шт.

25

D38648

BLOCK

SPACER - tube

2шт.

26

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

FITTING - adjustable, 90 deg., Incl. Ref.

1шт.

27

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

28

L54522

TUBE - dipper cylinder, rod end, used on G34323 cylinder

1шт.

28a

L74390

TUBE,0.75" OD x 33.9, 4.8" L

- dipper cylinder, rod end, used on G100004 cylinder

1шт.

28b

L58145

TUBE,0.75" OD x 34.3, 3" L

- dipper cylinder, rod end, used on G101348 cylinder

1шт.

29

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

FITTING - male, straight, if used, Incl. Ref. 30

1шт.

30

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

31

L58822

HOSE

- bucket cylinder, middle, 104" (2642 mm) long

2шт.

On models with extendable dipper, Refs. 5 and 31 are used in the dipper extension circuit, and separate hoses are used for the bucket cylinder circuit, see Figure 294

1шт.

32

R15257

CLAMP

-, Serial Range: hose-boom

1шт.

32a

L79113

CLAMP

AND NUT ASSEMBLY - option to Ref. 32, if used, not shown

1шт.

33

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

1шт.

34

L59005

SPACER

- clamp, if used

1шт.

34a

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self lock, 3/8" - 16 NC, if used

1шт.

35

L58821

HOSE

- bucket cylinder, 47" (1194 mm) long

2шт.

36

REF

INSTRUCTION

CYLINDER - hydraulic, bucket, see page 365 or 367

1шт.

36a

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

FITTING - 90 deg., adjustable, cylinder port, if used, Incl. Ref. 36B

2шт.

36b

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

37

L58142

TUBE

- bucket cylinder, closed end

1шт.

38

214-277

HOSE CLAMP,#100, 5.88" - 6.75", Type F Worm

CLAMP - tube to cylinder

1шт.

39

D38648

BLOCK

SPACER - tube

2шт.

40

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

FITTING - male, straight, if used, Incl. Ref. 41

2шт.

41

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

42

L57038

TUBE,0.75" OD x 18.65, 0.6" L

- bucket cylinder, rod end

1шт.

42a

L77131

TUBE,0.75" OD x 19.92, 1.75" L

- bucket cylinder, rod end, used with Ref. 36A only

1шт.

43

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - hose tie

1шт.
