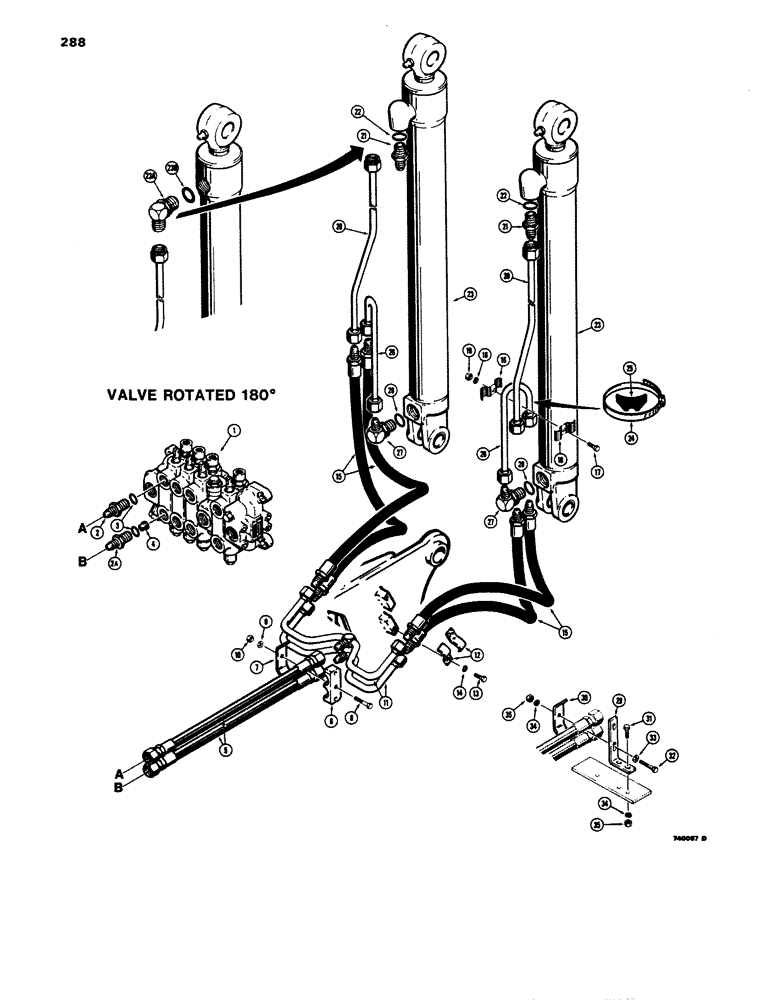

Запчасти Case 680E (288) - BACKHOE BOOM CYLINDER HYDRAULIC CIRCUIT, USED ON SN. 9125069 (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

VALVE - backhoe control, parts list figure 314

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - male, straight

1шт.

2a

L55143

FITTING

FITTING - male, straight, special, Includes: Ref. 3

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 218-5077 and L55143 fittings

1шт.

4

L58934

RESTRICTOR

- boom drop

1шт.

5

L55955

HOSE ASSY.

HOSE - backhoe valve to boom manifold, 26-1/2" (673 mm) long

2шт.

6

L58202

BLOCK - boom manifold support, Serial Range: -9125069

1шт.

7

L59126

CLAMP - boom manifold, Serial Range: -9125069

1шт.

8

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - 3/8" - 16 NC x 2-3/4"

1шт.

9

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

10

131-6

LOCK NUT,3/8"-16, GC

NUT - hex., self lock, 3/8" - 16 NC

1шт.

11

L58132

MANIFOLD

- boom cylinder

2шт.

12

L58147

CLAMP

- boom cylinder, Serial Range: hose-tower

4шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

14

92-6

LOCK WASHER,3/8"

4шт.

15

T41362

HYDRAULIC HOSE,0.63" ID x 27.50", SAE 100R2

- Boom cylinder manifold to boom cylinder 0.63" ID x 27.50", SAE 100R2

4шт.

16

R15257

CLAMP

- tube

4шт.

17

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC

2шт.

20

L58145

TUBE,0.75" OD x 34.3, 3" L

- boom cylinder, rod end

2шт.

21

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - male, straight, Incl. Ref. 22

2шт.

22

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting

1шт.

23

REF

INSTRUCTION

CYLINDER - hydraulic, boom, see figure 356 or 358

2шт.

23a

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

FITTING - 90 deg., adjustable, used on cylinders requiring four 90 degree fittings, Incl. Ref. 23B

42шт.

23b

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

24

214-273

HOSE CLAMP,#88, 5.12" - 6", Type F Worm

CLAMP - tubes to boom cylinder

2шт.

25

D38648

BLOCK

SPACER - tube

2шт.

26

L58142

TUBE

- boom cylinder, closed end

2шт.

27

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adjustable, if used, see Ref. 23A and 28 90º, 1 1/16"-12, 37º x 1 5/16"-12, O-Ring

2шт.

28

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting

1шт.

29

L78210

BRACKET - hose support, Start Serial: 9125069

1шт.

30

L78057

CLAMP

- hose, Start Serial: 9125069

1шт.

31

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2", Start Serial: 9125069

1шт.

32

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

, Start Serial: 9125069

1шт.

33

95-6

WASHER,3/8"

- flat, 3/8", Start Serial: 9125069

1шт.

34

92-6

LOCK WASHER,3/8"

, Start Serial: 9125069

2шт.

35

25-106

NUT,3/8"-16, G5

- 3/8" - 16 NC, Start Serial: 9125069

2шт.
