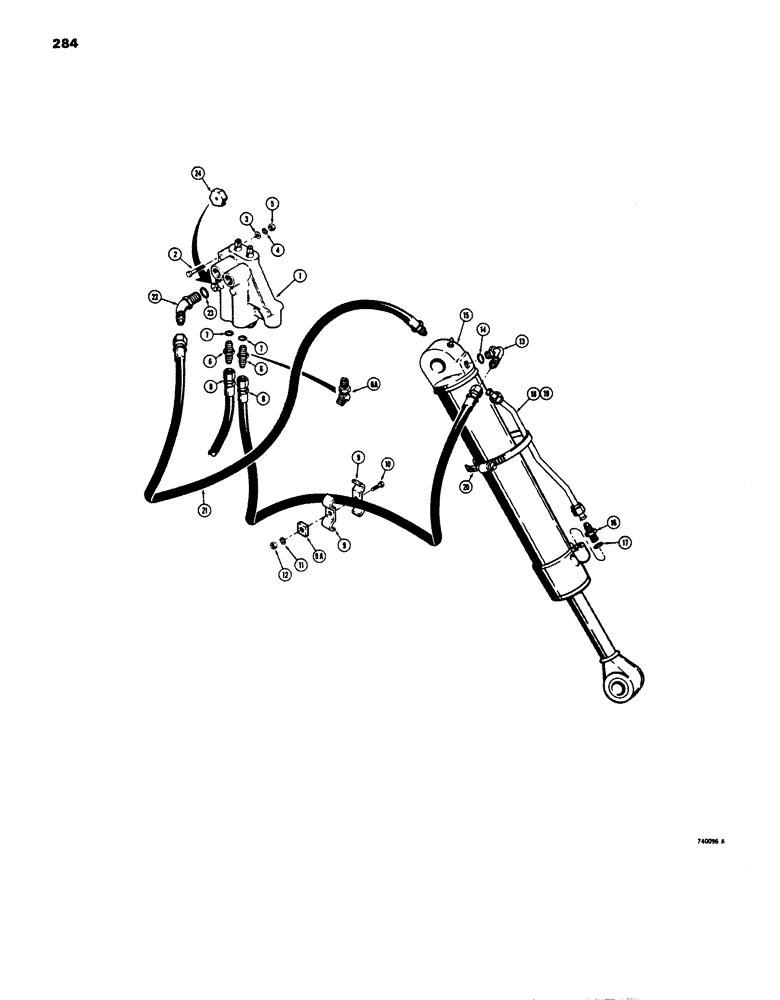

Запчасти Case 680E (284) - BACKHOE STABILIZER CYLINDER HYDRAULIC CIRCUIT (35) - HYDRAULIC SYSTEMS

1

D62348

VALVE

- stabilizer control, parts list figure 312

1шт.

2

13-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

Valve mounting Hex, 5/16"-18 x 2 3/4", G5

2шт.

3

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

2шт.

4

92-5

LOCK WASHER,5/16"

2шт.

5

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

6

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Fitting, male, straight, early production 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

6a

218-5146

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

FITTING - 45 deg., adjustable, late production, Includes: Ref. 7

2шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

8

L54790

HOSE ASSY.

HOSE - stabilizer valve to stabilizer cylinder, closed end, 63" (1600 mm) long

2шт.

9

L26312

CLAMP

- hose to chassis, if used

2шт.

9a

D56781

SPACER - clamp to frame, if used

2шт.

10

13-924

BOLT,Hex, 9/16" - 12 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2", clamp mounting, if used

2шт.

11

92-6

LOCK WASHER,3/8"

if used 3/8"

2шт.

12

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC, if used

2шт.

13

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

FITTING - 90 deg., adjustable, Includes: Ref. 14

2шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

15

REF

INSTRUCTION

CYLINDER - hydraulic, stabilizer, parts list see figure 348

2шт.

16

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

FITTING - male, straight, Includes: Ref. 17

2шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

18

L54786

TUBE,0.625" OD

- L.H. stabilizer cylinder

1шт.

19

L54788

TUBE,0.625" OD

- R.H. stabilizer cylinder

1шт.

20

214-273

HOSE CLAMP,#88, 5.12" - 6", Type F Worm

CLAMP - tube to cylinder

2шт.

21

L54789

HOSE ASSY.

HOSE - stabilizer valve to rod end of stabilizer cylinder, 42" (1067 mm) long, if used

2шт.

21

L71092

HOSE ASSY.

HOSE - stabilizer valve to rod end of stabilizer cylinder, 58" (1473 mm) long, if used

2шт.

22

218-5146

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

FITTING - 45 deg., adjustable, Includes: Ref. 23

2шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

24

L59006

PLATE ASSY.

ORIFICE - stabilizer cylinder, 1/8" (3.17 mm) dia. orifice

2шт.

24

D61933

RESTRICTOR

ORIFICE - stabilizer cylinder, 5/32" (3.96 mm) dia. orifice

2шт.
