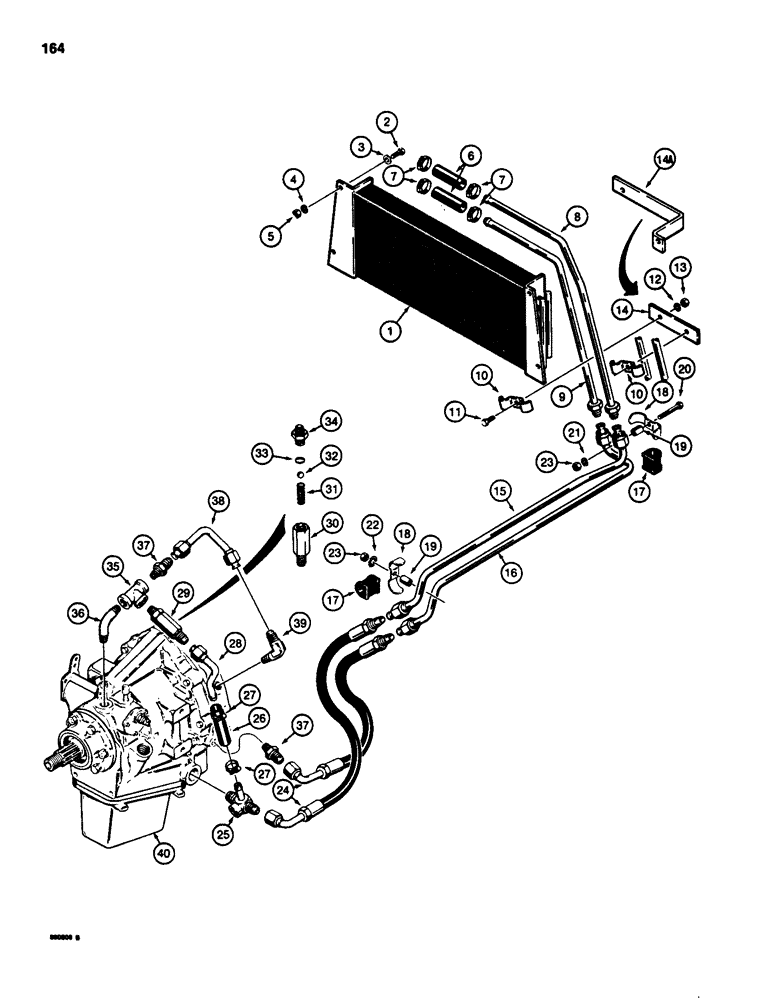

Запчасти Case 580D (164) - POWER SHUTTLE COOLING SYSTEM (06) - POWER TRAIN

1

D90967

COOLER

OIL COOLER - power shuttle and hydraulic oil, for hydraulic oil cooler lines, see Figure 264

1шт.

2

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

3

195-103

WASHER,5/16"

- flat, , plated 5/16"

4шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

5

9635082

NUT,5/16" - 18, Gr 5

4шт.

6

REF

INSTRUCTION

HOSE - 1/2" (13 mm) ID x 4" (102 mm) long, oil cooler to tubes, cut from S118388 bulk hose, see below

2шт.

7

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

4шт.

8

D93867

TUBE,12.7 mm OD x 517, 200 mm L

- power shuttle to oil cooler, upper

1шт.

9

D93871

TUBE,12.7 mm OD x 407, 206 mm L

- oil cooler to power shuttle, upper

1шт.

10

D90270

CLAMP

- double tube

1-2шт.

11

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

13

9635082

NUT,5/16" - 18, Gr 5

2шт.

14

D90271

PLATE

- tube clamp support, used on models with loader

1шт.

14a

D120452

BRACKET - tube clamp support, used on models without loader only

1шт.

15

D93865

TUBE,12.7 mm OD x 771, 416 mm L

- power shuttle to oil cooler, lower

1шт.

16

D93869

TUBE,12.7 mm OD x 802, 292 mm L

- oil cooler to power shuttle, lower

1шт.

17

D67296

GROMMET

INSULATOR - tube

4шт.

18

D68646

CLAMP

- double tube

2шт.

19

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- tube clamp

2шт.

20

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

22

193-72

LOCK WASHER

- internal-external tooth lock, 3/8", plated, if used

1шт.

23

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

24

D69051

HOSE

- 18" (457 mm) long, power, Serial Range: shuttle-tubes

2шт.

25

D68972

CONNECTOR, ELEC

FITTING - 4-way

1шт.

26

REF

INSTRUCTION

HOSE - 1/2" (13 mm) ID x 4" (102 mm) long, power shuttle, cut from S118388 bulk hose, see below

1шт.

27

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

28

D68973

HYD TUBE,0.5" OD x 4.84, 2.51" L

TUBE - at relief valve

1шт.

29

D48540

VALVE POPPET

RELIEF VALVE ASSEMBLY - power shuttle, Includes: Ref. 30 - 34

1шт.

30

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

31

S73472

SPRING

- relief valve

1шт.

32

211-212

BALL

- 7/16", grade 25, chrome alloy steel

1шт.

33

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- seat

1шт.

34

S73469

SEAT, VALVE

SEAT - spring

1шт.

35

221-423

TEE,3/8" NPT

pipe 3/8" NPT

1шт.

36

D48539

FITTING

ELBOW - special

1шт.

37

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER - straight, male

2шт.

38

D48523

TUBE

- power shuttle inlet

1шт.

39

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

- 90 degree, male

1шт.

40

REF

INSTRUCTION

POWER SHUTTLE - parts list Figures 168-176

1шт.

S118388

HOSE,0.50" ID x 168.00", SAE 100R3

Bulk 0.50" ID x 168.00", SAE 100R3

1шт.
