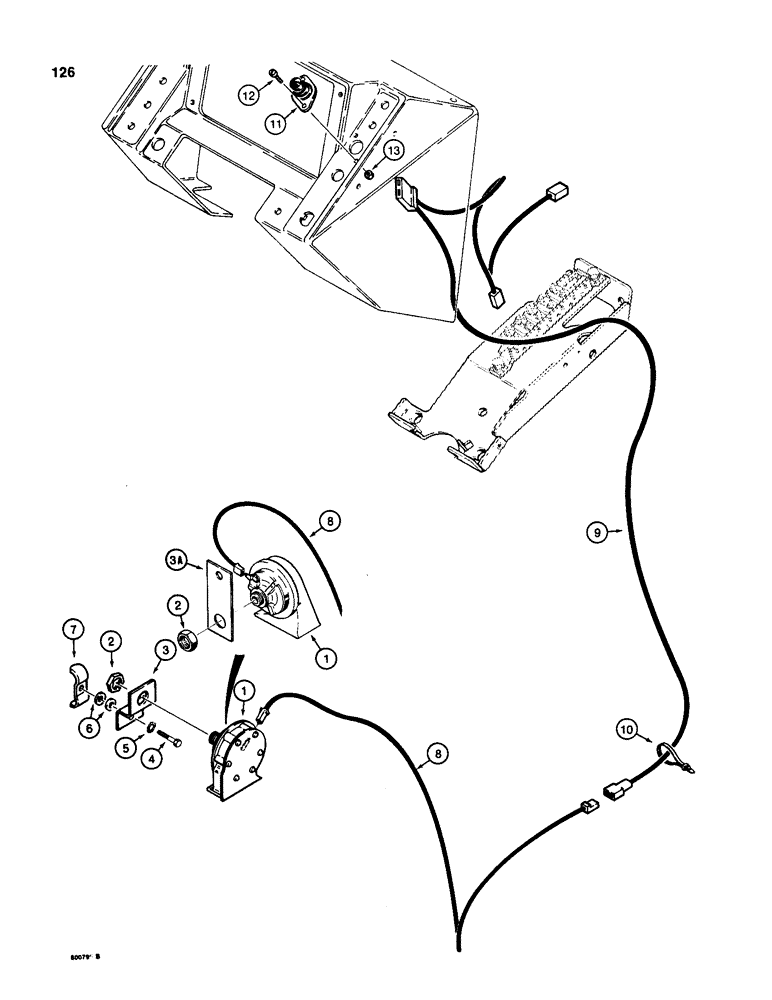

Запчасти Case 580D (126) - HORN (04) - ELECTRICAL SYSTEMS

1

D123205

HORN

- 12 volt

1шт.

2

L30866

LOCK NUT

- horn mounting, 7/8" - 20

1шт.

3

NSS

NOT SOLD SEPARAT

BRACKET - horn mounting, fastens to steering tube clamp, order Ref. 3A and relocate horn to transaxle mounting strap, instruction sheet included with Ref. 3A

1шт.

3a

D122734

SUPPORT

BRACKET - horn mounting, fastens to transmission support strap, for attatching hardware see Figure 182, includes instruction sheet

1шт.

4

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Used with Ref. 3 only Hex, 3/8"-16 x 1 1/2", G5

1шт.

5

193-72

LOCK WASHER

- internal-external tooth lock, 3/8", plated, used with Ref. 3 only

1шт.

6

195-525

WASHER,3/8", SAE

- flat, 3/8", plated, used with Ref. 3 only

2шт.

7

REF

INSTRUCTION

CLAMP - steering tubes, see Figure 144 for clamp, insulators and spacer

1шт.

8

D91176

ELECTRICAL WIRE

WIRE - horn to switch wire

1шт.

9

D75818

ELECTRICAL WIRE

WIRE - from switch and circuit breaker

1шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

11

D67872

SWITCH

- push button, horn

1шт.

12

163-15

SCREW,Hex, #10 - 24 x 5/8"

MACHINE SCREW - No. 10 - 24 NC x 5/8"

2шт.

13

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT AND LOCK WASHER - No. 10 - 24 NC, plated

2шт.
