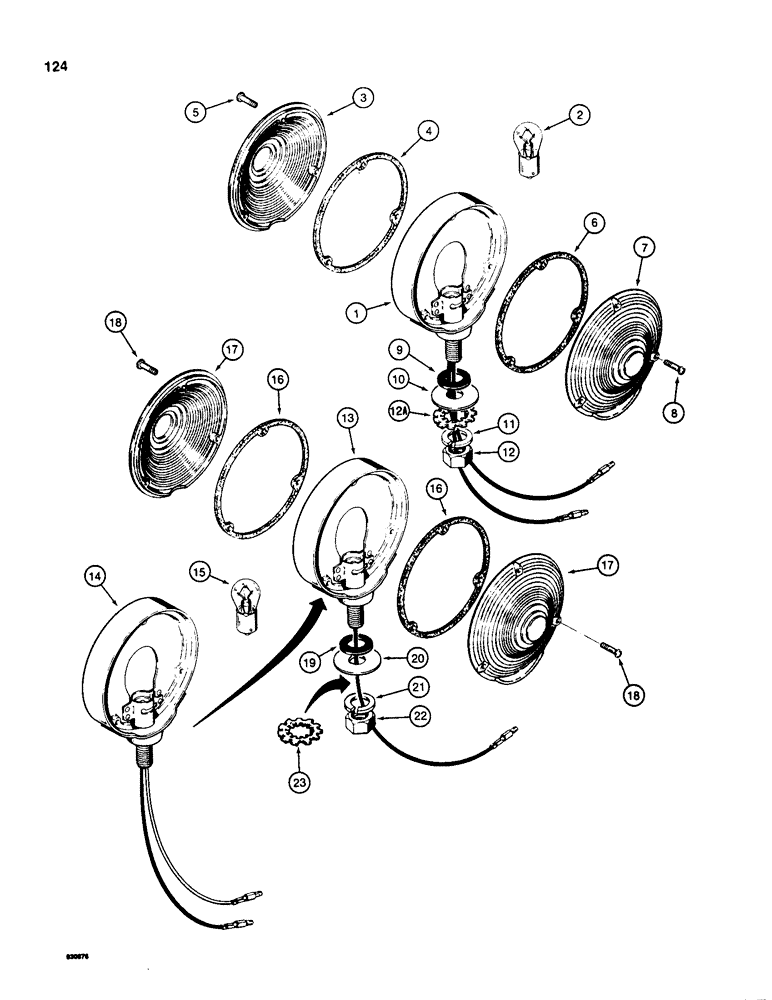

Запчасти Case 580D (124) - TRACTOR LAMPS, STOP AND TAIL AND FLASHER LAMPS (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

D49733 STOP AND TAIL LAMP

1шт.

D49733

LAMP

ASSEMBLY - stop and tail, used on models without cab or canopy, Inlcudes: Ref. 1 - 12

2шт.

For stop and tail lamp on models with cab or canopy, see Figure 122.

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - lamp, complete

1шт.

2

T34857

BULB,C6, #1157, 12.8V

- stop and tail, No. 1157

1шт.

L32213

LENS

KIT - lens replacement, red, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

LENS - red

1шт.

4

NSS

NOT SOLD SEPARAT

GASKET - lens

1шт.

5

182-565

SCREW,Sltd Pan Hd, #8-32 x 5/8"

- round head, No. 6 - 32 NC x 5/8", plated

3шт.

L32214

LENS

KIT - lens replacement, amber, Includes: Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

GASKET - lens

1шт.

7

NSS

NOT SOLD SEPARAT

LENS - amber

1шт.

8

182-565

SCREW,Sltd Pan Hd, #8-32 x 5/8"

- round head, No. 6 - 32 NC x 5/8", plated

3шт.

9

L32256

WASHER

BUSHING - rubber, if used

1шт.

10

195-105

WASHER,7/16"

- flat, 1/2", plated

1шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

12

129-125

NUT,1/2"-20, G5

1шт.

12a

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

REF

INSTRUCTION

D49734 AND D122121 FLASHER LAMPS

1шт.

D49734

LAMP

ASSEMBLY - flasher, no longer available, order D122121 lamp, Inlcudes: Ref. 13 - 22

2шт.

D122121

LAMP,12V

ASSEMBLY - flasher, Includes: Ref. 13 - 22

2шт.

13

NSS

NOT SOLD SEPARAT

BODY - D49734 lamp assembly, without ground wire, D49734 and D122121 flasher lamps

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - D122121 lamp assembly, with additional ground wire, D49734 and D122121 flasher lamps

1шт.

15

A41264

BULB,#1156, 12V

Flasher, D49734 and D122121 flasher lamps #1156, 12V

1шт.

L32214

LENS

KIT - lens replacement, D49734 and flasher lamps, Includes: Ref. 16 - 18

2шт.

16

NSS

NOT SOLD SEPARAT

GASKET - lens, D49734 and D122121 flasher lamps

1шт.

17

NSS

NOT SOLD SEPARAT

LENS - amber, D49734 and D122121 flasher lamps

1шт.

18

182-565

SCREW,Sltd Pan Hd, #8-32 x 5/8"

- round head, No. 6 - 32 NC x 5/8", plated, D49734 and D122121 flasher lamps

3шт.

19

L32256

WASHER

BUSHING - rubber, if used, D49734 and D122121 flasher lamps

1шт.

20

195-105

WASHER,7/16"

- flat, 1/2", plated, D49734 and D122121 flasher lamps

1шт.

21

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , D49734 and D122121 flasher lamps 1/2"

1шт.

22

129-125

NUT,1/2"-20, G5

D49734 and D122121 Flasher lamps 1/2"-20, G5

1шт.

23

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , D49734 and D122121 flasher lamps Ext-Int Tooth, 1/2"

2шт.
