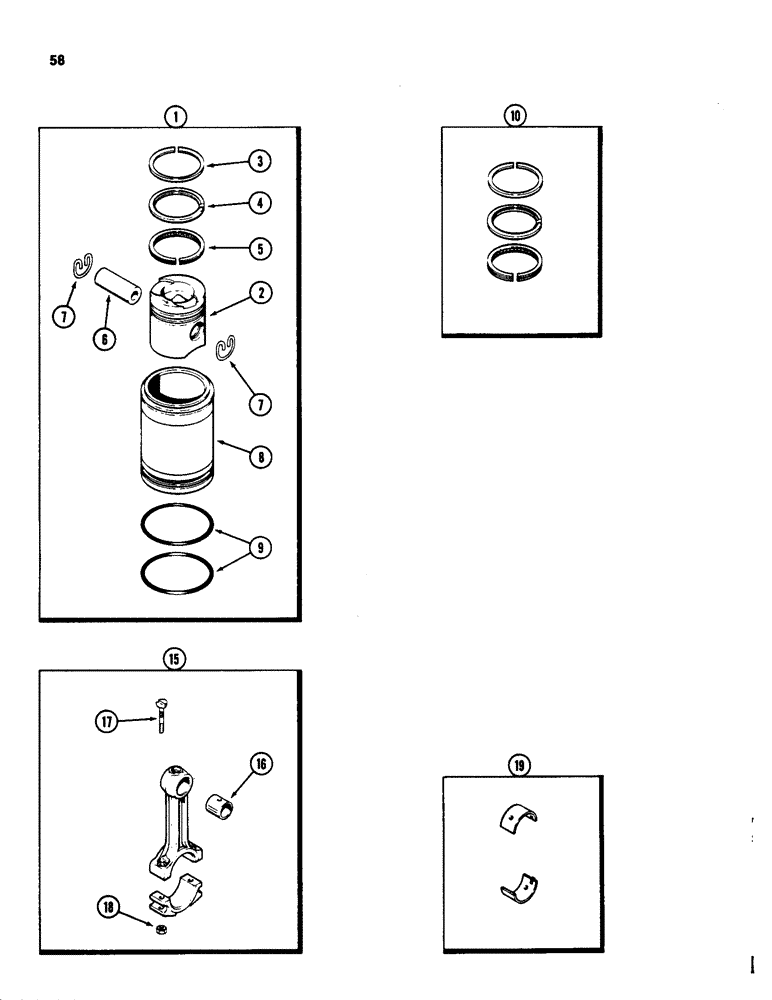

Запчасти Case 580D (058) - PISTONS, 207 NATURALLY ASPIRATED DIESEL ENGINE (02) - ENGINE

1

A46382

PACKAGE, REPAIR

PISTON KIT - single piston, Includes: Ref. 2 - 9

4шт.

2

A151244

PISTON

- engine

1шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, top groove (Order A151892) (Reference No. A142982)

1шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, second groove (Order A151892) (Reference No. A142350)

1шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control, third groove (Order A151892) (Reference No. A138348)

1шт.

6

A35770

PISTON PIN,31.75mm OD x 80.44mm L

PIN - piston

1шт.

7

G46702

RING, LOCKING

RING - piston pin retaining

2шт.

8

A136474

SLEEVE CYLINDER

SLEEVE - piston

1шт.

395949R1

SHIM

.004" - .005" thick

1шт.

Outside edge may need to be trimmed to fit into cylinder bore. This is acceptable. Do not fold the edges over.

1шт.

395948R1

SHIM

.007" thick

1шт.

Outside edge may need to be trimmed to fit into cylinder bore. This is acceptable. Do not fold the edges over.

1шт.

395947R1

SHIM

.012" thick

1шт.

Outside edge may need to be trimmed to fit into cylinder bore. This is acceptable. Do not fold the edges over.

1шт.

395946R1

SHIM

.030" thick

1шт.

Outside edge may need to be trimmed to fit into cylinder bore. This is acceptable. Do not fold the edges over.

1шт.

9

A51916

O-RING,4.115" ID x 4.281" OD

- 4-1/4 inch (108 mm)

2шт.

10

A151892

RING

KIT - single piston re-ring

4шт.

REF

INSTRUCTION

CONNECTING RODS

1шт.

15

A51913

RING

ROD ASSEMBLY - connecting, Includes: Ref. 16 - 18

4шт.

16

A136712

BUSHING

- piston pin (Order A44083, set of 4 kit)

1шт.

17

A51914

BOLT

- connecting rod

2шт.

18

A51904

NUT

NUT - retaining, Grade 8

2шт.

19

A50975

BEARING LINER,58.67mm ID x 62.48mm OD x 27.69mm W

LINER - connecting rod bearing, standard (Set of 2)

4шт.

19

A50976

BEARING

LINER - connecting rod bearing, 0.002 inch (0.051 mm) undersize (Set of 2)

4шт.

19

A50977

BEARING,58.42mm ID x 62.48mm OD x 27.69mm W

LINER - connecting rod bearing, 0.010 inch (0.254 mm) undersize (Set of 2)

4шт.

19

A50978

BEARING,58.17mm ID x 62.48mm OD x 27.69mm W

LINER - connecting rod bearing, 0.020 inch (0.508 mm) undersize (Set of 2)

4шт.

19

A50979

BEARING

LINER - connecting rod bearing, 0.030 inch (0.762 mm) undersize (Set of 2)

4шт.
