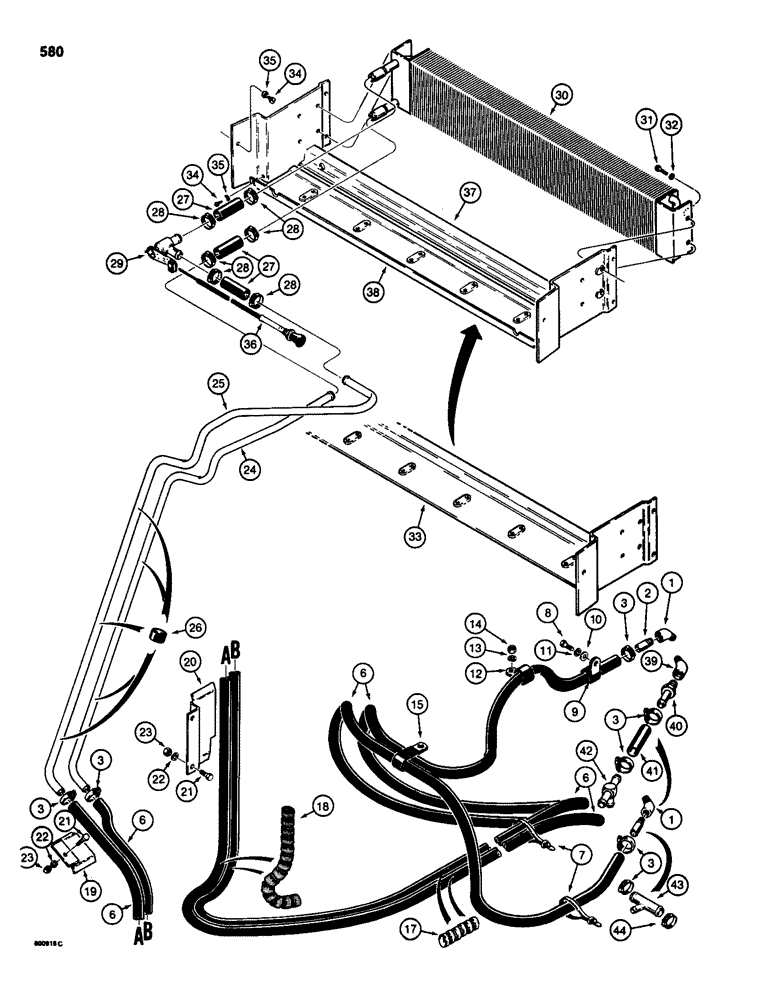

Запчасти Case 580D (580) - CAB HEATING SYSTEM (09) - CHASSIS/ATTACHMENTS

1

D73369

FITTING

STREET ELBOW - 45 degree, 3/8" NPT

1-2шт.

2

L17985

FITTING,3/8" - 18 NPT

NIPPLE - 3/8" NPT

1-2шт.

3

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, worm screw type

4-6шт.

4

RESERVED

1шт.

5

RESERVED

1шт.

6

REF

INSTRUCTION

HOSE - heater, 137-3/4" (3500 mm) long, cut from A42610, see below

2шт.

Part of hose P/N A42610

1шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

8

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

9

R14668

CLAMP

- P-style, heater return hose, used on models with air conditioning

1шт.

10

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

12

R14668

CLAMP

- P-style, heater return hose to engine cylinder head cover

1шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

15

D120080

COLLAR CLAMP

CLAMP - P-style, double, uses flywheel housing hardware

1шт.

16

RESERVED

1шт.

17

D94364

BOOT

GUARD - heater hoses, 9-7/8" (250 mm) long, front

2шт.

18

D120221

GUARD

- heater hoses, 27-1/2" (700 mm) long, rear

2шт.

19

D87758

BRACKET

- small, hose retaining, left-hand side of cab

1шт.

20

D87759

BRACKET

- large, hose retaining, left-hand side of cab

1шт.

21

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

23

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

24

F44938

HEATER TUBE

TUBE - supply

1шт.

25

F44939

HEATER TUBE

TUBE - return

1шт.

26

F64347

SEAL

GUARD - heater tubes

5шт.

27

REF

INSTRUCTION

HOSE - heater tubes to valve and core, 2" (51 mm) long, cut from A42610 bulk

3шт.

Part of hose P/N A42610

1шт.

28

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, adjustable

6шт.

29

F63865

VALVE

FLOW CONTROL VALVE - heater

1шт.

30

F45204

HEAT-EXCHANGER

CORE - heater, interchangeable with F44713 or F45210 heater cores

1шт.

31

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

4шт.

32

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

33

F96715

SHEET

BRACKET - mounting, heater core, no longer used, order Refs. 37 and 38

1шт.

34

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, No. 10 - 16 NC x 1/2", plated

6-8шт.

35

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

6-8шт.

36

REF

INSTRUCTION

CABLE - heater control, see Figure 562

1шт.

37

F96821

BRACKET

- heater core

1шт.

38

F96820

PANEL

- lower, heater core

1шт.

39

D73369

FITTING

ELBOW - 45 degree, turbocharged engine only, if used

1шт.

Ref. 39 - 42 are used on turbocharged engines with return tee in oil cooler line. Ref. 43 and 44 are used on turbocharged engines with return tee in lower radiator hose.

1шт.

40

217-376

FITTING,5/8" Hose Barb x 3/8" Male NPTF

BARB FITTING - elbow to hose, turbocharged engine only, if used

1шт.

Ref. 39 - 42 are used on turbocharged engines with return tee in oil cooler line. Ref. 43 and 44 are used on turbocharged engines with return tee in lower radiator hose.

1шт.

41

REF

INSTRUCTION

HOSE - to tee, 4" (102 mm) long, turbocharged engine only, cut from A42610 bulk, if used

1шт.

Ref. 39 - 42 are used on turbocharged engines with return tee in oil cooler line. Ref. 43 and 44 are used on turbocharged engines with return tee in lower radiator hose.

1шт.

42

L106087

TEE - hose, turbocharged engine only, if used

1шт.

Ref. 39 - 42 are used on turbocharged engines with return tee in oil cooler line. Ref. 43 and 44 are used on turbocharged engines with return tee in lower radiator hose.

1шт.

43

D124014

TEE - hose, turbocharged engine only, if used

1шт.

Ref. 39 - 42 are used on turbocharged engines with return tee in oil cooler line. Ref. 43 and 44 are used on turbocharged engines with return tee in lower radiator hose.

1шт.

44

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

if used #36, 1.81/2.75 Type F Worm

2шт.

Ref. 39 - 42 are used on turbocharged engines with return tee in oil cooler line. Ref. 43 and 44 are used on turbocharged engines with return tee in lower radiator hose.

1шт.

A42610

LARGE HOSE

HOSE - bulk, 5/8" (16 mm) ID x 1" (25 mm) OD x 50 ft (1524 cm) long, Includes: Refs. 6 and 27

1шт.
