Запчасти Case 580D (566) - CAB FRONT WINDSHIELD WIPER, ROBERT BOSCH PARTS (09) - CHASSIS/ATTACHMENTS

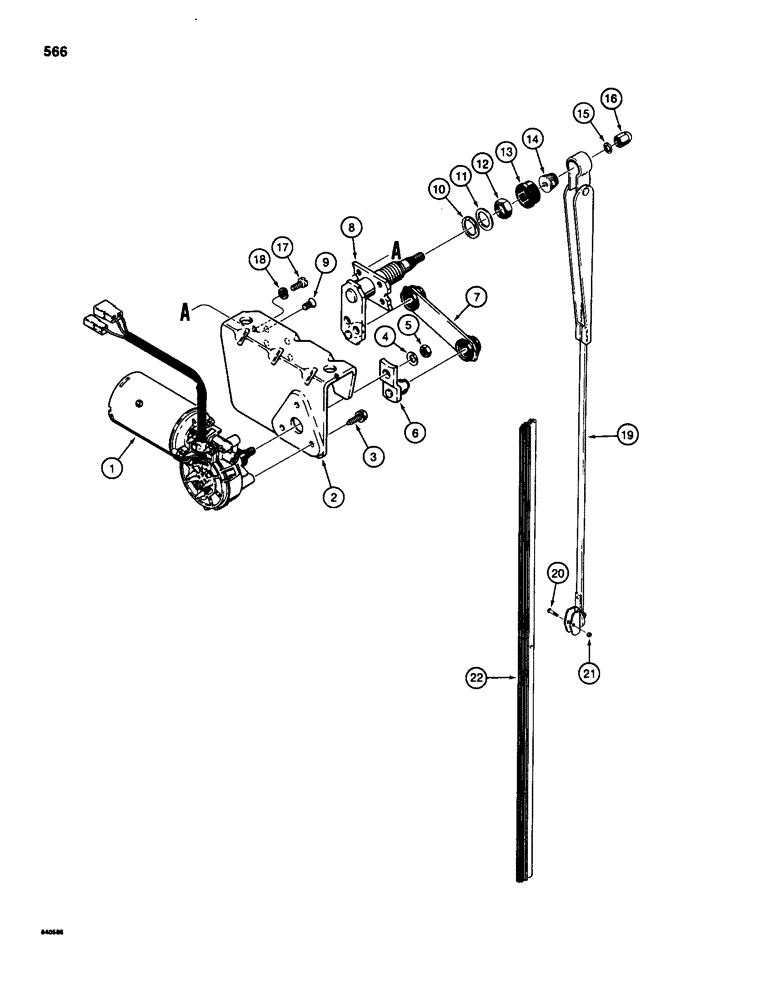

Схема запчастей Case 580D - (566) - CAB FRONT WINDSHIELD WIPER, ROBERT BOSCH PARTS (09) - CHASSIS/ATTACHMENTS
12
15
10
20
9
13
17
18
19
7
4
1
14
8
11
21
22
6
3
16
5
2

Артикул

Название

Примечание

Количество

F96898

WIPER

MOTOR AND BRACKET ASSEMBLY - complete, front windshield wiper, 12 volt, Robert Bosch No. 9 397 235 014, (parts list below) or American Bosch No.19251-21-MO12WC (parts list Figure 565), Includes: Ref. 1 - 16

1шт.

1

F96890

WIPER MOTOR

MOTOR - windshield wiper, 12 volt

1шт.

2

N8359

SUPPORT

BRACKET - windshield wiper assembly

1шт.

3

N8362

CAPTIVE WASHER SCREW,Hex, M6 x 18.50mm, Gr 10.9

SCREW AND WASHER - special, motor to bracket

3шт.

4

N8361

SPRING WASHER

- bent, special

1шт.

5

L112090

NUT

- hex, special, 8 mm

1шт.

6

N8360

SUPPORT

ARM - drive

1шт.

7

N9089

DRAG LINK

LINK - wiper

1шт.

8

N9090

WIPER BLADE

SHAFT - pivot

1шт.

9

N8356

SCREW,Phillips Drive, Flat HD, M5 x 8mm

- special, pivot shaft to bracket

4шт.

10

N6749

WASHER

- fiber

1шт.

11

N6750

WASHER

- steel

1шт.

12

N6751

NUT

- shaft

1шт.

13

N6752

CAP

- shaft, rubber

1шт.

14

N6753

BLOCK DRIVER

DRIVER - knurled

1шт.

15

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

16

N6754

NUT

DOME NUT - special

1шт.

17

182-548

SCREW,Slotted Pan Hd, 1/4"-28 x 3/8"

MACHINE SCREW - pan head slotted, 1/4" - 28 NF x 3/8", plated

2шт.

18

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

19

F44928

WIPER

ARM - windshield wiper, 22" (559 mm) long, Includes: Ref. 20 and 21

1шт.

20

182-567

SCREW,Sltd Pan Hd, #5-40 x 1/2"

MACHINE SCREW - pan head, No. 5 - 40 NC x 1/2", plated

1шт.

21

129-14

NUT,#5-40

1шт.

22

F43938

WIPER BLADE

BLADE - windshield wiper, 22" (559 mm) long

1шт.

Выбрано товаров: 23
