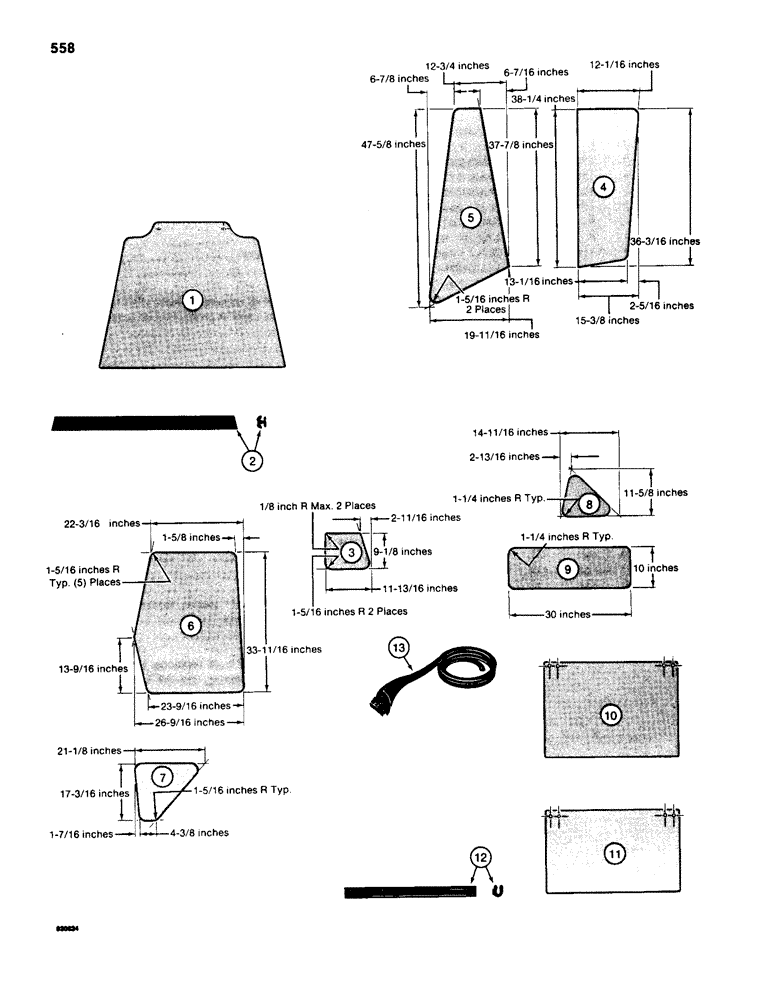

Запчасти Case 580D (558) - CAB GLASS, UNITED STATES DIMENSIONS (09) - CHASSIS/ATTACHMENTS

1

F44623

WINDSHIELD

GLASS - windshield, upper

1шт.

2

F44621

MOLDING

SUPPORT - windshield, bottom of upper windshield

1шт.

3

REF

INSTRUCTION

GLASS - windshield, lower

2шт.

4

REF

INSTRUCTION

GLASS - side, rear

2шт.

NOT SHOWN VERY CLEAR SEE PRINT F44627 FOR ACTUAL OUTLINE DIMENSIONS.

1шт.

5

REF

INSTRUCTION

GLASS - panel, next to rear window

2шт.

6

REF

INSTRUCTION

GLASS - side windows

2шт.

7

REF

INSTRUCTION

GLASS - side, front and lower

2шт.

8

REF

INSTRUCTION

GLASS - rear fenders

2шт.

9

REF

INSTRUCTION

GLASS - rear closure panel, models without backhoe only

1шт.

10

F44629

GLASS

- rear window, upper

1шт.

Ref. 10 and 11... if either one is ordered, you must also get the other glass and replace channel that glass slides in. Dimensional change in width was made in 1982. See IMSPROD for details..

1шт.

11

F44630

GLASS

- rear window, lower

1шт.

12

F44710

SEAL

SUPPORT - seal, lower rear window, attaches to top of glass

1шт.

13

A42677

MOLDING

SEAL - used around all glass except rear window glass, bulk roll, 100 ft.

1шт.
