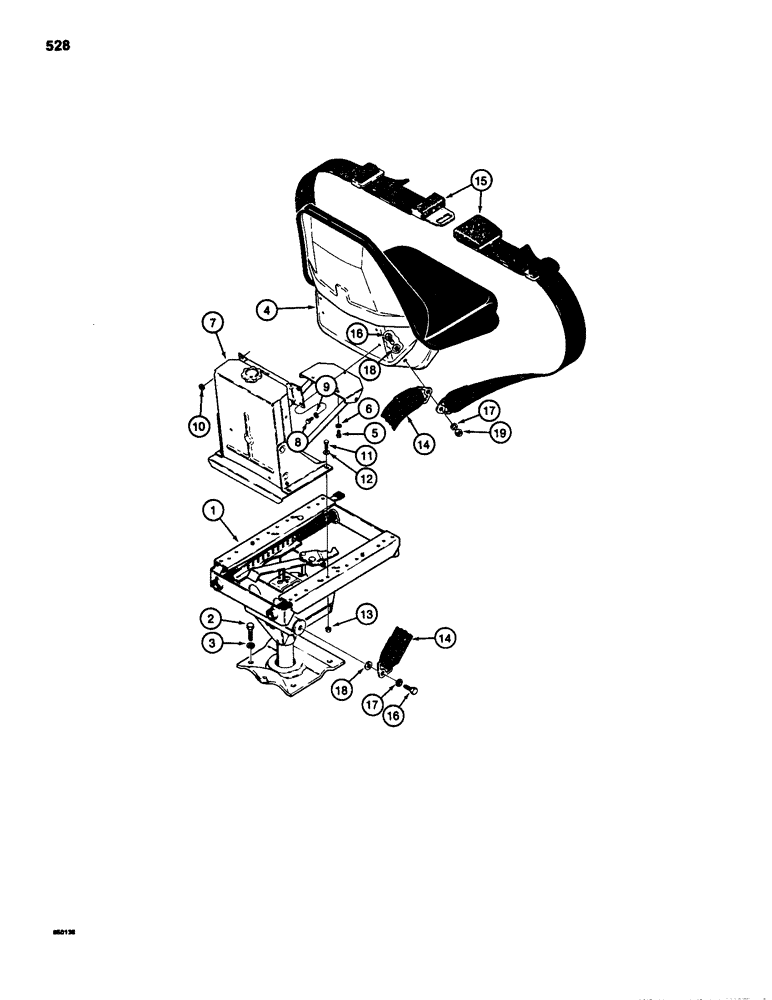

Запчасти Case 580D (528) - SUSPENSION SEAT AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

D123289

PEDESTAL

SUPPORT ASSEMBLY - suspension seat, parts list Figure 540, used with D123290 adjuster only

1шт.

2

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

4

D123291

SEAT

ASSEMBLY - suspension, vinyl, see parts list Figure 532 for identification

1шт.

5

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

3шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

7

D123290

SUSPENSION

ADJUSTER ASSEMBLY - suspension seat, parts list Figure 542, used with D123289 seat support only

1шт.

8

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

10

195-521

WASHER,5/16", SAE

- flat, 5/16", plated, left-hand side only

2шт.

11

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

12

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

4шт.

13

193-1009

NUT,Keps, w/LW, 5/16"-18

- hex, with external tooth lock washer, 5/16" - 18 NC, plated, replaces lock washer with separate nut on some models

4шт.

14

D123292

SAFETY BELT

SAFETY BELT, Support to seat, 13" (330 mm) long, Used with D123289 seat support only

2шт.

15

D85816

SAFETY BELT

SEAT BELT - 3" (76 mm) wide

1шт.

16

114-301

BOLT,Hex, 7/16" - 20 x 1", Gr 5, Full Thd

4шт.

17

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

18

195-529

WASHER,7/16", SAE

- flat, 7/16", plated

4шт.

19

425-117

NUT,7/16"-20, G5

- hex, 7/16" - 20 NF, plated

2шт.
