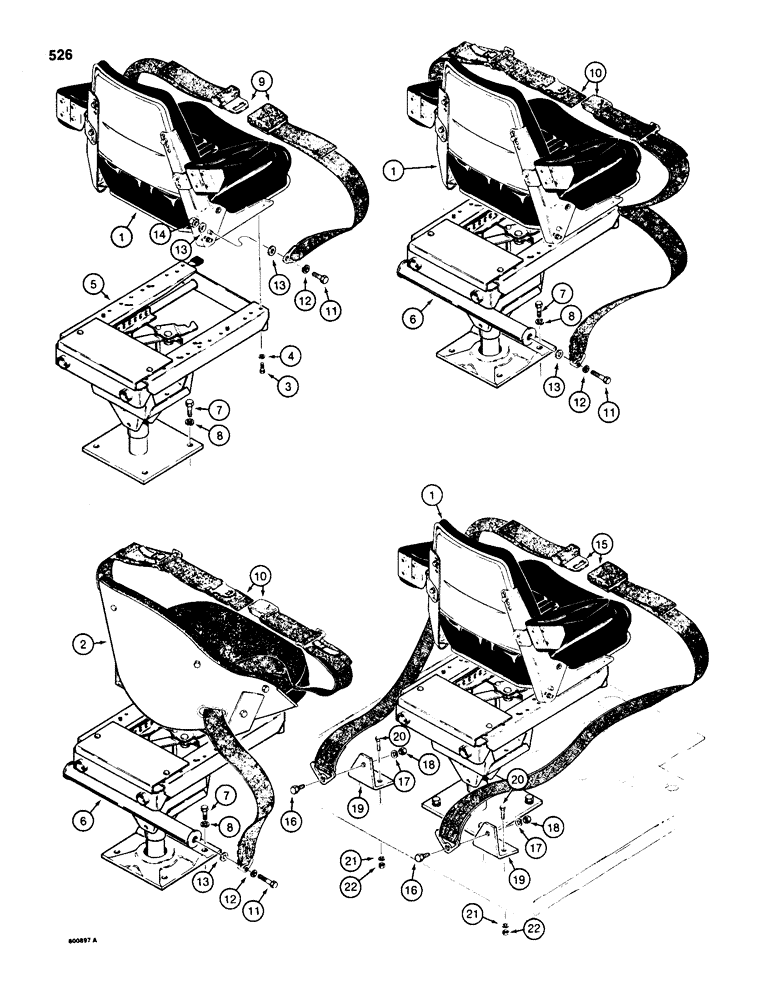

Запчасти Case 580D (526) - SEAT MOUNTING PARTS AND SEAT BELTS (09) - CHASSIS/ATTACHMENTS

1

D81519

SEAT

ASSEMBLY - operators, standard, has bolt-on cushions, armrests are optional, parts list Figure 530

1шт.

1a

D120255

SEAT

ASSEMBLY - operators, standard, has one piece shell, will not accept armrests, not shown, see Figure 532 for illustration and parts list

1шт.

2

D93313

DRIVER SEAT

SEAT ASSEMBLY - operators, deluxe, parts list Figure 534

1шт.

3

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

5

D124103

PEDESTAL

SUPPORT ASSEMBLY - without tube for seat belt mounting, Ref. 1 or 1A seat assembly only, parts list Figure 536

1шт.

6

D124104

SUPPORT ASSY.

SUPPORT ASSEMBLY - with tube for seat belt mounting, used with either seat assembly parts list Figure 536

1шт.

7

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

9

D87964

SAFETY BELT

SEAT BELT - 2" (51 mm) wide, use with D124103 seat support only

1шт.

10

R36488

SAFETY BELT

SAFETY BELT, 3" (76 mm) wide, Use with D124104 seat support only

1шт.

11

114-301

BOLT,Hex, 7/16" - 20 x 1", Gr 5, Full Thd

2шт.

12

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

13

195-529

WASHER,7/16", SAE

- flat, 7/16", two used with D124104 seat support, four used with D124103 seat support

2-4шт.

14

425-117

NUT,7/16"-20, G5

- hex, 7/16" - 20 NF, plated, used with D124103 seat support only

2шт.

REF

INSTRUCTION

FLOOR MOUNTED SEAT BELT OPTION - USED WITH D81519 SEAT AND D124103 SEAT SUPPORT

1шт.

15

D83760

SAFETY BELT

SEAT BELT - 3" (76 mm) wide

1шт.

16

F42236

STEP BOLT

BOLT - shoulder, 7/16" - 20 NF x 1-1/4"

2шт.

17

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

18

425-117

NUT,7/16"-20, G5

- hex, 7/16" - 20 NF, plated

2шт.

19

D75008

BRACKET

- mounting, seat belt

2шт.

20

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

22

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.
