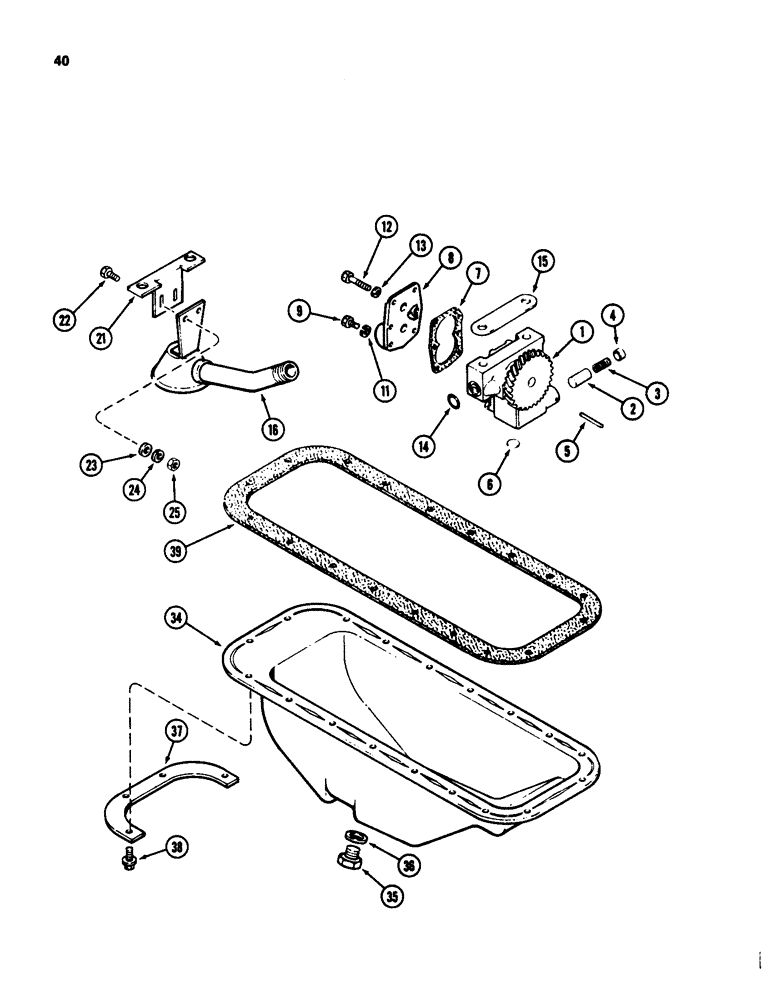

Запчасти Case 580D (040) - OIL PUMP, 207 TURBOCHARGED DIESEL ENGINE (02) - ENGINE

REF

INSTRUCTION

OIL PUMP

1шт.

1

A155145

PUMP, ENGINE OIL

PUMP ASSEMBLY - engine oil, Includes: Ref. 2 - 13

1шт.

2

A155144

VALVE, PRESSURE RELI

VALVE - relief

1шт.

3

G48500

SPRING

- relief valve

1шт.

4

A155550

RETAINER

- relief valve spring

1шт.

5

138-62

LOCK PIN,1/8" x 1 1/8", Slotted

PIN, 1/8" x 1 1/8", Slotted

1шт.

6

A39321

PLUG,Cup, 7/16"

- cup type, body, 1/2 inch (13 mm)

1шт.

7

A153572

GASKET

- pump cover

1шт.

8

NSS

NOT SOLD SEPARAT

COVER - pump body (Order A155145) (Reference No. G11838)

1шт.

9

164-530

SCREW,Btn Hd, 1/4" - 20 x 5/8"

BOLT - hex socket head, 1/4 NC x 5/8 inch

1шт.

9

164-531

HEX SOC SCREW,Btn Hd, 1/4" - 20 x 3/4"

BOLT - hex socket head, 1/4 NC x 3/4 inch

3шт.

11

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

12

164-534

HEX SOC SCREW,Btn Hd, 1/4" - 20 x 1 1/2"

BOLT - hex socket head, 1/4 NC x 1-1/2

2шт.

13

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER - 1/4 inch internal Shakeproof

2шт.

14

A153571

O-RING,0.799" ID x 1.005" OD x 0.103"

- oil port, 1 inch (25 mm)

1шт.

15

A153574

SHIM

- pump to bearing cap, 0.002 inch (0.06 mm)

1шт.

15

A153575

SHIM

- pump to bearing cap, 0.005 inch (0.13 mm)

1шт.

16

A156419

SCREEN

- oil pump

1шт.

21

A155757

BRACKET

- support

1шт.

22

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

23

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

2шт.

24

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

25

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

REF

INSTRUCTION

OIL PAN

1шт.

34

A156420

SUMP

PAN ASSEMBLY - oil, oil pan, Includes: Ref. 35 and 36

1шт.

35

A140222

PLUG

- drain, oil pan

1шт.

36

A58608

GASKET

- drain plug, oil pan

1шт.

37

A151279

REINFORCEMENT

STRAP - pan reinforcement, oil pan

1шт.

38

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT ASSEMBLY - hex Sems, 5/16 NC x 3/4 inch, oil pan

14шт.

38

193-552

BOLT

- hex socket head, 5/16 NC x 7/8 inch, oil pan

4шт.

39

A51891

OIL PAN GASKET SET

- oil pan, oil pan

1шт.
