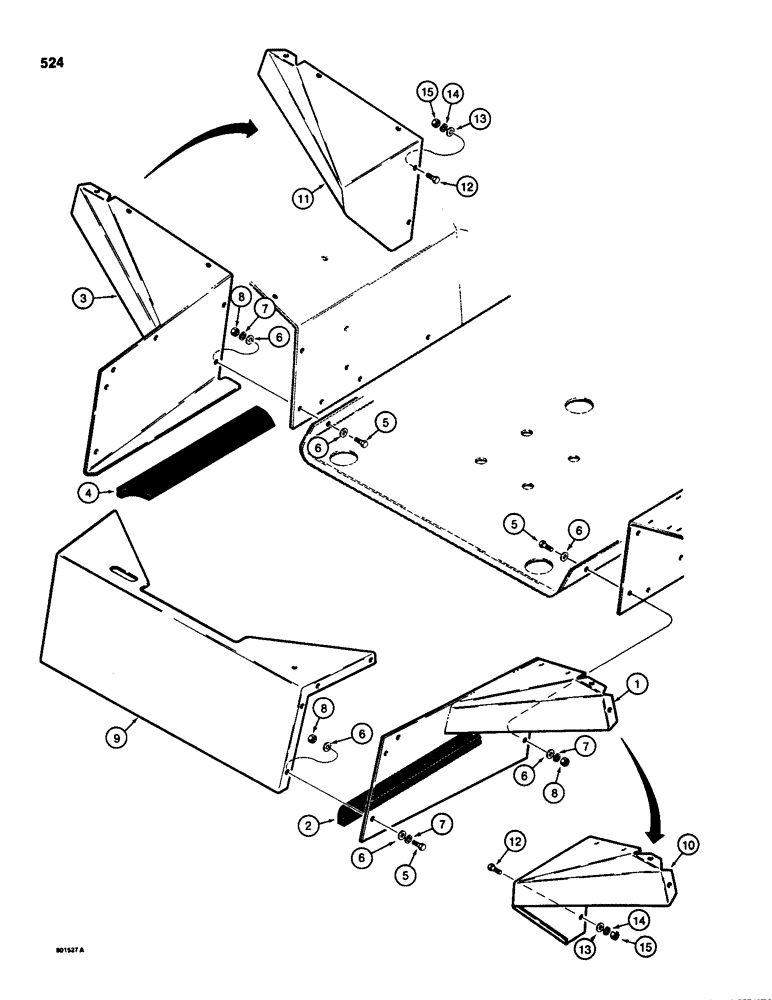

Запчасти Case 580D (524) - REAR CLOSURE PANELS, MODELS WITH CANOPY (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

USED ON MODELS WITH BACKHOE

1шт.

1

D90560

PANEL

- side closure, right-hand

1шт.

2

REF

INSTRUCTION

SEAL - right-hand panel, 19-11/16" (500 mm) long, cut from D90976

1шт.

3

D90561

PANEL

- side closure, left-hand

1шт.

4

REF

INSTRUCTION

SEAL - left-hand panel, 19-11/16" (500 mm) long, cut from D90976

1шт.

5

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

20шт.

6

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

40шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

20шт.

8

9635082

NUT,5/16" - 18, Gr 5

20шт.

9

D92241

PANEL

- rear closure, includes decals, see Figures 602 and 604

1шт.

REF

INSTRUCTION

USED ON MODELS WITHOUT BACKHOE

1шт.

10

D91154

PANEL

- side closure, right-hand, used on models without backhoe

1шт.

11

D91155

PANEL

- side closure, left-hand, used on models without backhoe

1шт.

12

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Used on models without backhoe

12шт.

13

195-521

WASHER,5/16", SAE

- flat, 5/16", plated, used on models without backhoe

12шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Used on models without backhoe 5/16"

12шт.

15

9635082

NUT,5/16" - 18, Gr 5

Used on models without backhoe 5/16"-18, G5

12шт.

D90976

SEAL

- bulk, 295-1/4" (7500 mm) long, used on models without backhoe

1шт.
