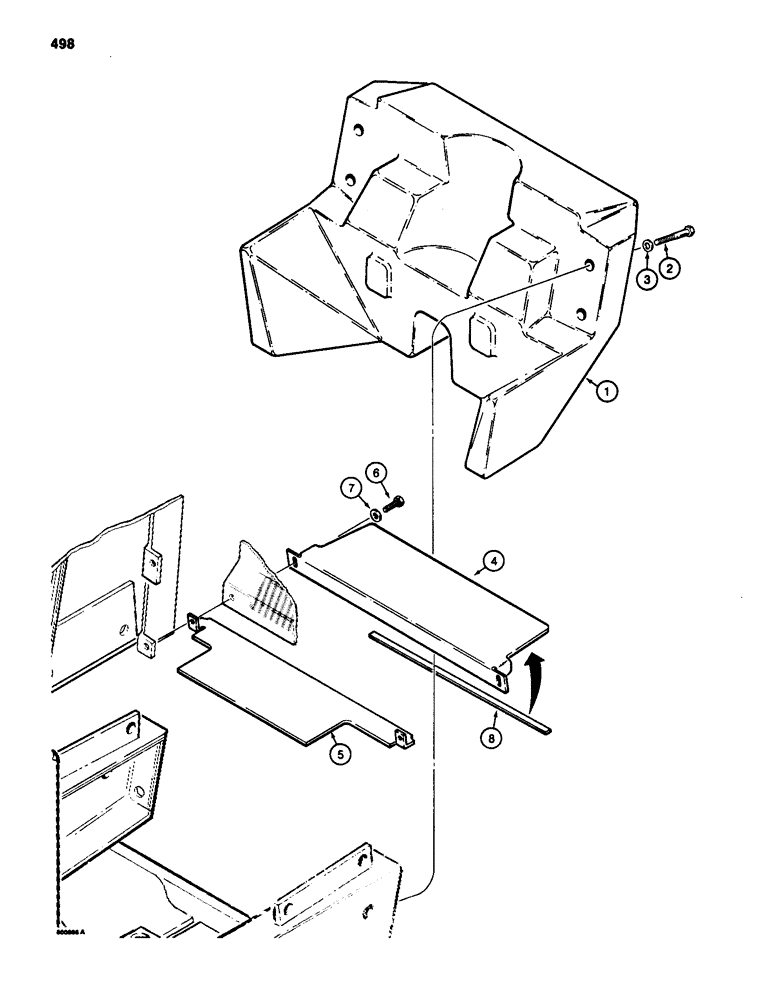

Запчасти Case 580D (498) - FRONT COUNTERWEIGHT (09) - CHASSIS/ATTACHMENTS

1

D93145

WEIGHT

COUNTERWEIGHT - front, 800 lbs. (362.4 kg), two wheel drive models

1шт.

1

D120757

WEIGHT

COUNTERWEIGHT - front, 700 lbs. (317.5 kg), four wheel drive models

1шт.

2

113-710

BOLT,Hex, 3/4" - 10 x 4", Gr 5

If used Hex, 3/4"-10 x 4", G5

4шт.

2

113-718

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

If used Hex, 3/4"-10 x 4 1/2", G5

4шт.

3

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

4шт.

4

D93492

PLATE

COVER - counterweight, in front of grille

1шт.

5

D88431

PLATE

COVER - counterweight, behind grille

1шт.

6

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

7

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

8

D91137

STRIP

- vibration cushion, if used, 600 mm long, cut to 500 mm

1шт.
