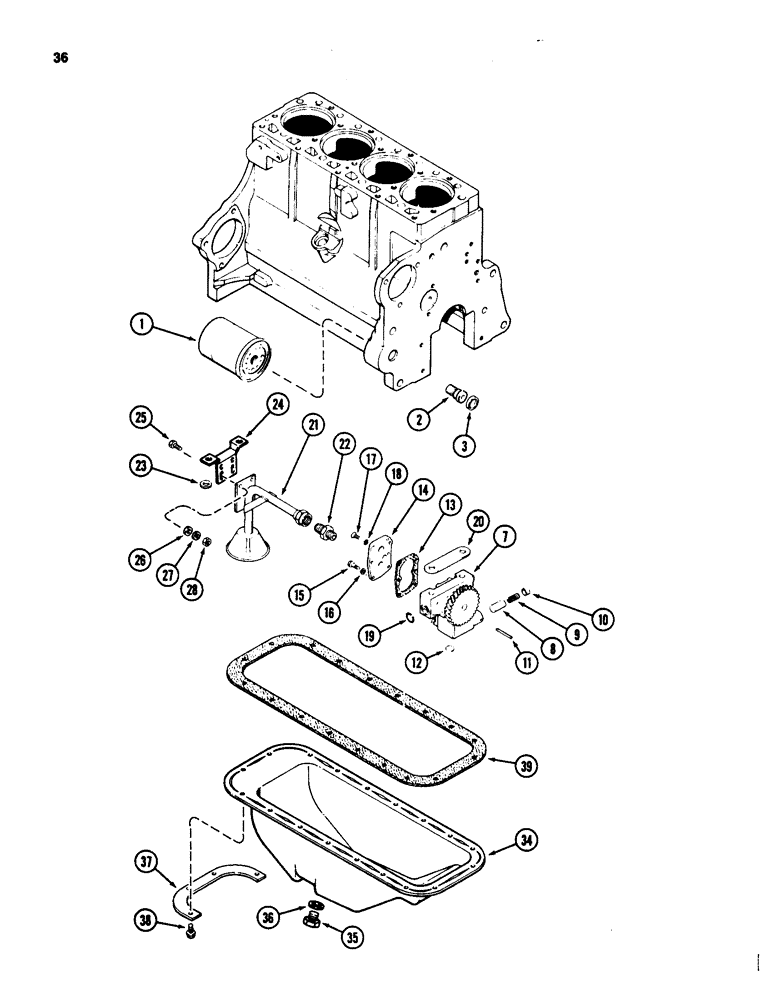

Запчасти Case 580D (036) - OIL FILTER, 207 NATURALLY ASPIRATED DIESEL ENGINE (02) - ENGINE

1

A146696

ENGINE OIL FILTER

FILTER - engine oil

1шт.

2

A153552

ADAPTER

ADAPTER -, Serial Range: filter-block

1шт.

3

41-1016

PLUG,Cup, 1"

PLUG - cup type, adapter hole, 1 inch (25 mm)

1шт.

7

A38372

PUMP

PUMP ASSEMBLY - engine oil, Includes: Ref. 8 - 18

1шт.

7

AR38372

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

7

AC38372

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

8

A155144

VALVE, PRESSURE RELI

EF VALVE - relief (Replaces A29279)

1шт.

9

G48500

SPRING

SPRING - relief valve, 2-1/8 inch free length (54 mm)

1шт.

10

A29260

RETAINER

RETAINER - relief valve spring

1шт.

11

138-62

LOCK PIN,1/8" x 1 1/8", Slotted

PIN, 1/8" x 1 1/8", Slotted

1шт.

12

A39321

PLUG,Cup, 7/16"

PLUG - cup type, body, 1/2 inch (13 mm)

1шт.

13

G46852

GASKET

GASKET - pump cover

1шт.

14

NSS

NOT SOLD SEPARAT

COVER - pump body (Order A38372) (Reference No. 611838)

1шт.

15

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

BOLT, Hex, 1/4"-20 x 1 1/4", G5

1шт.

15

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

BOLT, Hex, 1/4"-20 x 3/4", G5, Full Thd

3шт.

16

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

17

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

SCREW - flat head, 1/4 NC x 5/8 inch

1шт.

18

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, Ext Csk Tooth, 1/4"

2шт.

19

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

O-RING - oil port, 15/16 inch (24 mm)

1шт.

20

G11337

SHIM,.002" Thk

SHIM, , Pump to bearing cap (0.06 mm) .002" Thk

1шт.

20

G11338

SHIM,.005" Thk

SHIM, , Pump to bearing cap (0.13 mm) .005" Thk

1шт.

21

A156794

FILTER SCREEN

SCREEN - oil pump

1шт.

22

218-1026

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, NPTF

CONNECTOR - 3/8 inch PT

1шт.

23

G35009

WASHER

WASHER - hardened, 1-1/16 inch (27 mm) (Replaces G49404)

2шт.

24

A156845

BRACKET

BRACKET - support (Replaces A155169)

1шт.

25

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT, Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

26

195-102

WASHER,1/4"

WASHER - 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

2шт.

27

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

28

7770

NUT,Hex, 1/4 - 20, Cl 5

NUT, 1/4"-20, G5

2шт.

34

A156420

SUMP

PAN ASSEMBLY - oil (Replaces A36782), Includes: Ref. 35 and 36

1шт.

A156420 oil pan assy - Remove reference to "replaces A36782".

1шт.

35

A140222

PLUG

PLUG - drain

1шт.

36

A58608

GASKET

GASKET - drain plug

1шт.

37

A151279

REINFORCEMENT

STRAP - pan reinforcement

1шт.

38

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT ASSEMBLY - hex Sems, 5/16 NC x 3/4 inch

14шт.

38

193-552

BOLT

BOLT - hex, socket head, 5/16 NC x 7/8 inch

4шт.

39

A51891

OIL PAN GASKET SET

GASKET - oil pan

1шт.
