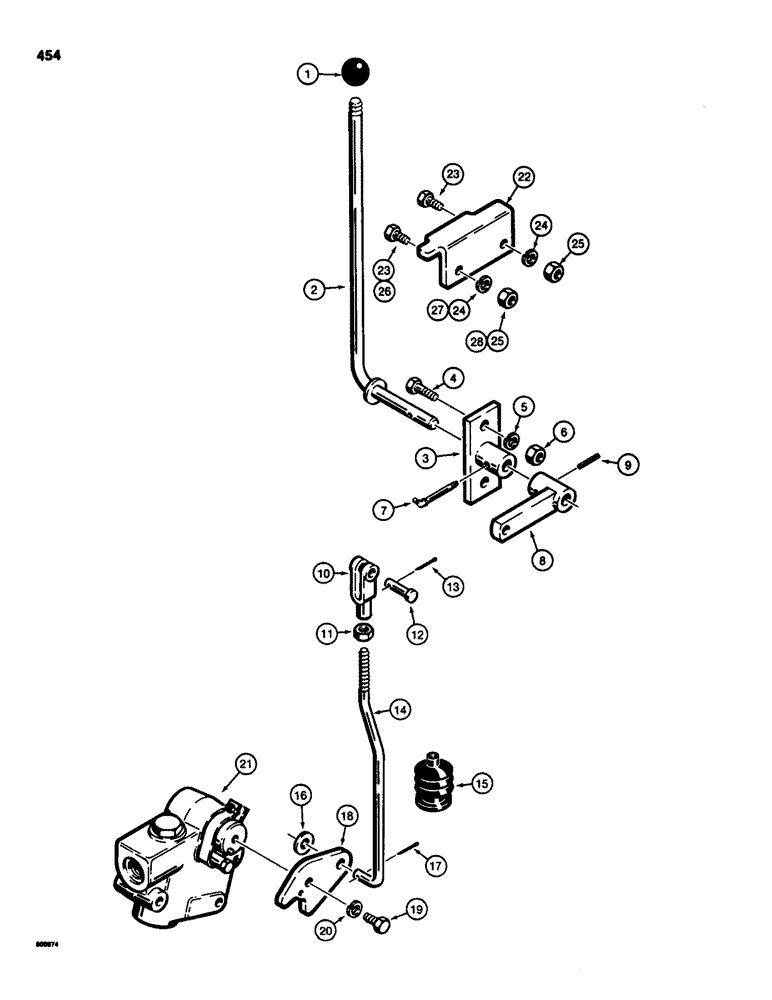

Запчасти Case 580D (454) - BACKHOE BOOM LOCK CONTROL (09) - CHASSIS/ATTACHMENTS

1

D59912

KNOB

- control lever

1шт.

2

D89994

LEVER

CONTROL LEVER - boom lock

1шт.

3

D89341

BRACKET

SUPPORT - boom lock control

1шт.

4

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

7

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 90 degree, 1/8" NPT

1шт.

8

D89344

CRANK

LEVER - pivot

1шт.

9

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

10

213-41

ADJUSTABLE CLEVIS,3/8"-24

metal, plated, replaces fiberglass clevis on some models 3/8"-24

1шт.

11

129-123

NUT,3/8"-24, G5

1шт.

12

141-54

CLEVIS PIN,3/8" x 1 1/16"

1шт.

13

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

14

D89346

ROD

- boom lock control

1шт.

15

D85869

BELLOWS

BOOT - rod

1шт.

16

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

17

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

18

D89888

LEVER

- valve

1шт.

19

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

1шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

22

D93422

BRACKET

- lever latch

1шт.

23

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

1-2шт.

24

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1-2шт.

25

9635082

NUT,5/16" - 18, Gr 5

1-2шт.

26

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

If used Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

28

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.
