Запчасти Case 580D (440) - LOADER BLADE / PALLET FORKS (09) - CHASSIS/ATTACHMENTS

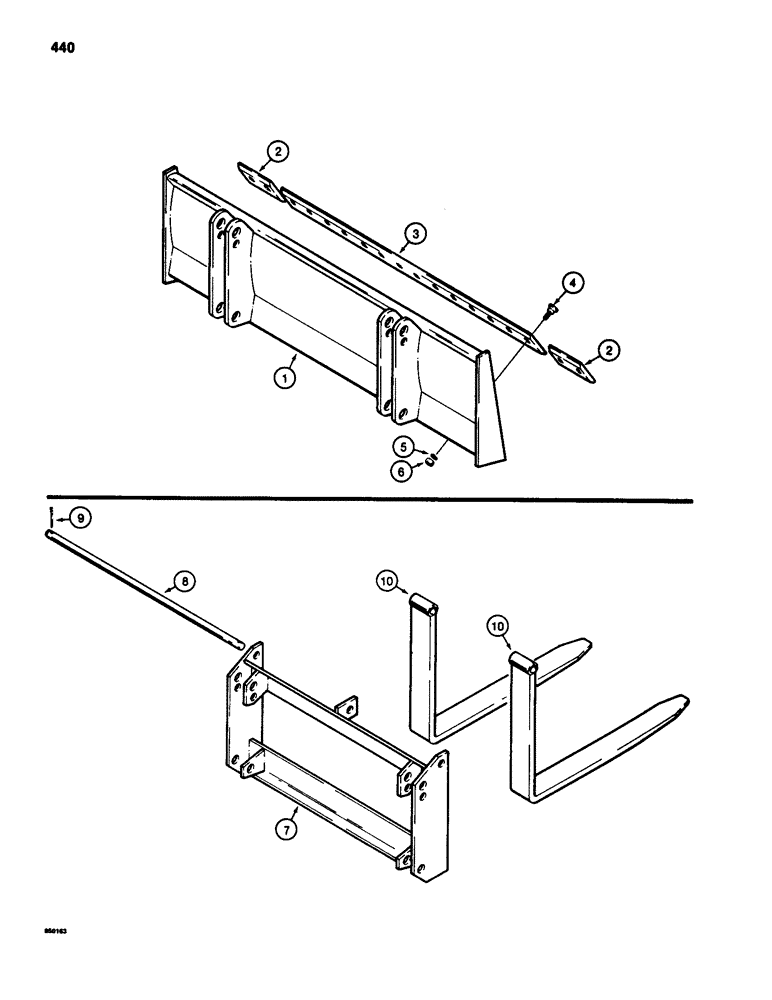

Схема запчастей Case 580D - (440) - LOADER BLADE / PALLET FORKS (09) - CHASSIS/ATTACHMENTS
10
8
4
1
10
7
3
2
5
2
6
9

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

BLADE ASSEMBLY - loader, machinery item, see Figure 002 for ordering, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

BLADE - loader

1шт.

2

38150

EDGE

CUTTING EDGE - blade, end

2шт.

3

NLS

NO LONGER SERVICED

CUTTING EDGE - blade, center

1шт.

4

118-331

PLOW BOLT,1/2"-13 x 1 3/4", G5

- 1/2" - 13 NC x 1-3/4", plated

18шт.

5

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

18шт.

6

129-105

NUT,Hex, 1/2" - 13, Gr 5

18шт.

REF

INSTRUCTION

PALLET FORK

1шт.

7

D69200

FRAME

- pallet fork

1шт.

8

D69201

BAR

SHAFT - fork mounting

1шт.

9

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

2шт.

10

D47999

FORK

- pallet

2шт.

Выбрано товаров: 12
