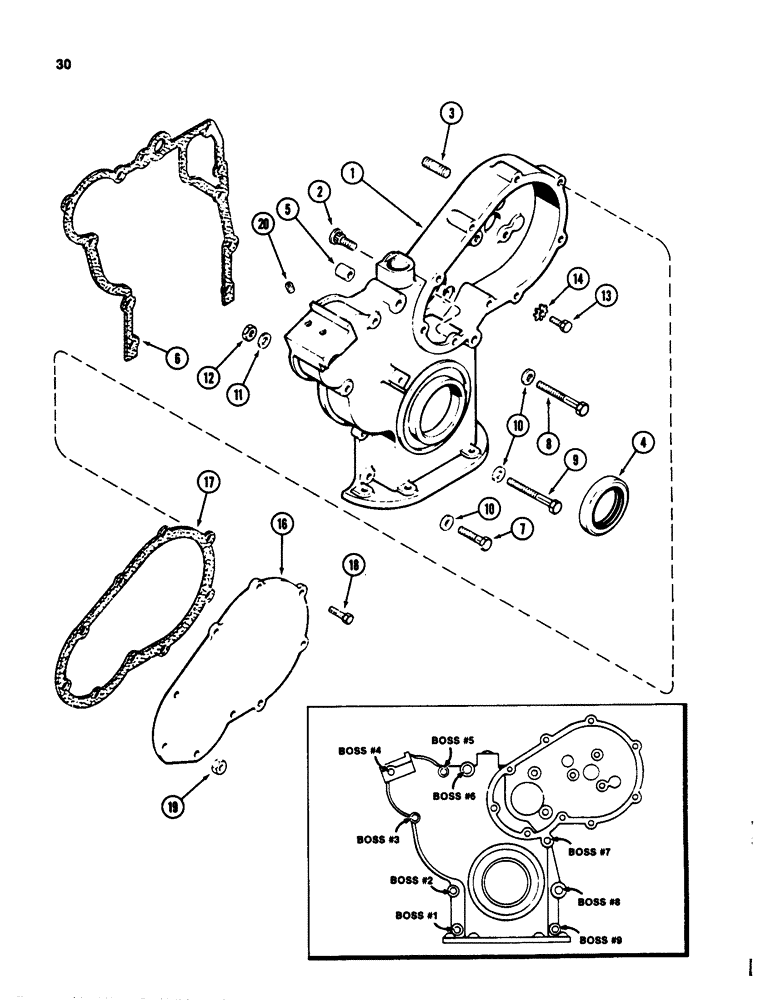

Запчасти Case 580D (030) - TIMING GEAR COVER, 207 TURBOCHARGED DIESEL ENGINE, 207 NATURALLY ASPIRATED DIESEL ENGINE (02) - ENGINE

1

A51981

COVER

ASSEMBLY - timing gears, Includes: Ref. 2 - 4

1шт.

2

A51649

STUD

- cover

1шт.

3

G102128

BOLT

- injection pump, 3/8 NC x 1-7/16 inch

3шт.

4

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, crankshaft, front, 3 inch (76 mm)

1шт.

5

A29442

RING

DOWEL - cover locating, 3/8 x 9/16 x 5/8 inch

2шт.

6

A51529

GASKET

-, Serial Range: cover-block

1шт.

7

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

(Boss 1, 2 and 9) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

7

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

(Boss 8) Hex, 3/8"-16 x 1 1/2", G5

1шт.

8

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

(Boss 7) Hex, 3/8"-16 x 2 3/4", G5

1шт.

8

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

(Boss 6) Hex, 3/8"-16 x 3", G5

1шт.

9

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

(Boss 3, 4 and 5) Hex, 3/8"-16 x 3 1/2", G5

3шт.

10

A50820

WASHER

- hardened, 3/4 inch (19 mm)

9шт.

10

195-104

WASHER,3/8"

- 3/8 x 1 x 1/16 inch (10 x 25 x 2 mm)

1шт.

11

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm) (Boss 3, 4 and 5)

3шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, (Boss 3, 4 and 5) 3/8"-16, G5

3шт.

13

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

Inside cover Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

14

193-53

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

16

A51908

COVER

PLATE - cover, injection pump gears

1шт.

17

A39925

GASKET

-, Serial Range: plate-cover

1шт.

18

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

7шт.

19

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

20

178-821

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

PLUG - socket head, 3/8 inch NC

2шт.
