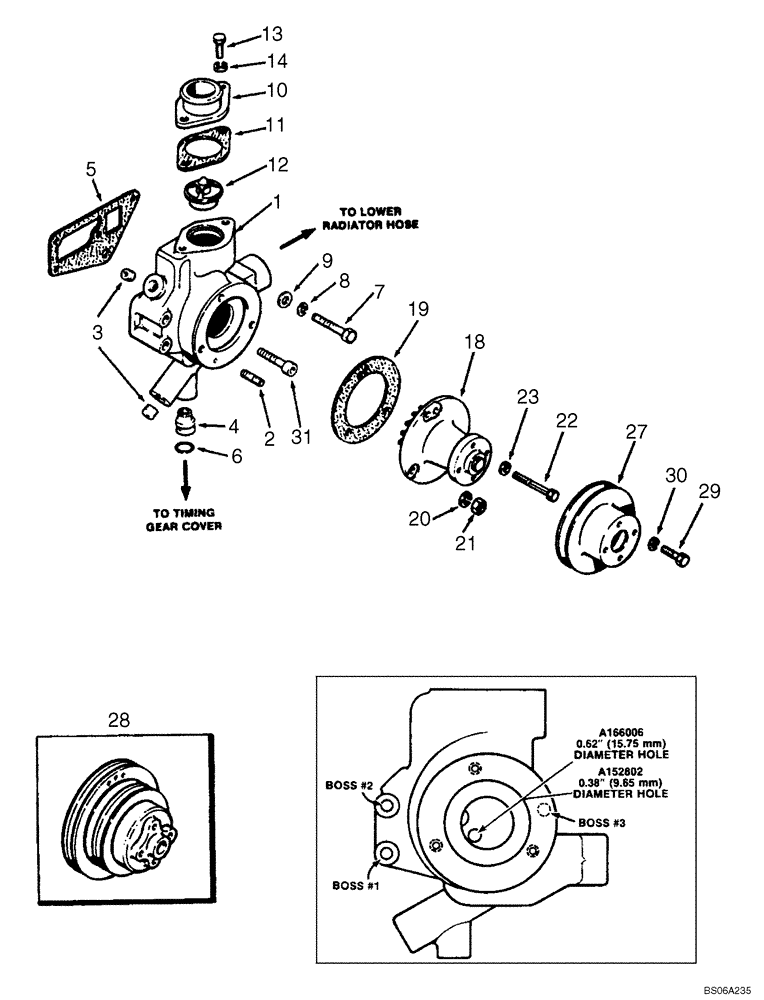

Запчасти Case 580D (028) - WATER PUMP, 207 TURBOCHARGED DIESEL ENGINE, 207 NATURALLY ASPIRATED DIESEL ENGINE (02) - ENGINE

1

A152802

PUMP

BODY ASSEMBLY - water pump (Used with A150384 cast numbered cylinder head. See Figure 042) (Includes: Ref. 2 - 4)

1шт.

1

A166006

BODY

BODY ASSEMBLY - water pump (Used with A155925 cast numbered cylinder head. See Figure 042) (Includes: Ref. 2 - 4)

1шт.

2

A29433

STUD

STUD - 3/8 NC x 1 inch

2шт.

3

221-843

PLUG,Hex Soc, 3/8"-18

PLUG - socket head, body, 3/8 inch PT

1шт.

4

A152715

COUPLING

FITTING - body to timing gear cover

1шт.

5

A38084

GASKET,1.27mm Thk

GASKET - body to cylinder head

1шт.

6

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

O-RING - 3/4 x 1 x 1/8 inch (19 x 25 x 3 mm)

1шт.

7

13-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

BOLT - hex, 3/8 NC x 1-7/8 inch

1шт.

7

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT, Hex, 3/8"-16 x 2 3/4", G5

1шт.

7

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

BOLT, Hex, 3/8"-16 x 3", G5

1шт.

7

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

BOLT, Hex, 3/8"-16 x 3 1/2", G5

1шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

9

195-525

WASHER,3/8", SAE

WASHER - 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm) (Used with 113-203 bolt only)

1шт.

10

G2144

FITTING

HOUSING - thermostat and water outlet

1шт.

11

G46907

GASKET

GASKET -, Serial Range: housing-body

1шт.

12

A57641

THERMOSTAT

THERMOSTAT - 180 degree F; 82 degree C

1шт.

13

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, , Housing Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

18

A146584

PUMP, WATER

PUMP ASSEMBLY - water (without turbocharger) (Includes: Ref. 19)

1шт.

18

A146584GV

WATER PUMP

Value, Water Pump Assy.

1шт.

18

A146584R

REMAN-WATER PUMP

Reman For New P/N A146584, Pump Assembly

1шт.

18

A146584C

CORE-WATER PUMP

Return Part Number

1шт.

18

A48363

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

18

A48323

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

18

A153509

PUMP

PUMP ASSEMBLY - water (with turbocharger)

1шт.

19

A38083

GASKET

GASKET -, Serial Range: pump-body

1шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, (w/o air-conditioning) 3/8"-16, G5

2шт.

21

25-146

JAM NUT,Jam, 3/8"-16, G5

NUT - jam, 3/8 inch NC (with air-conditioning)

2шт.

22

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT, Hex, 3/8"-16 x 2 3/4", G5

1шт.

23

A22317

WASHER

WASHER - 11/16 inch (18 mm)

1шт.

27

G11339

PULLEY

PULLEY - fan drive (without air-conditioning)

1шт.

28

A155641

PULLEY

PULLEY - fan drive (with air-conditioning)

1шт.

29

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/4", G5

4шт.

30

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

31

61-632

HEX SOC SCREW,3/8"-16 x 2"

BOLT - hex socket head, (inside body) 3/8 NC x 2 inch

1шт.
