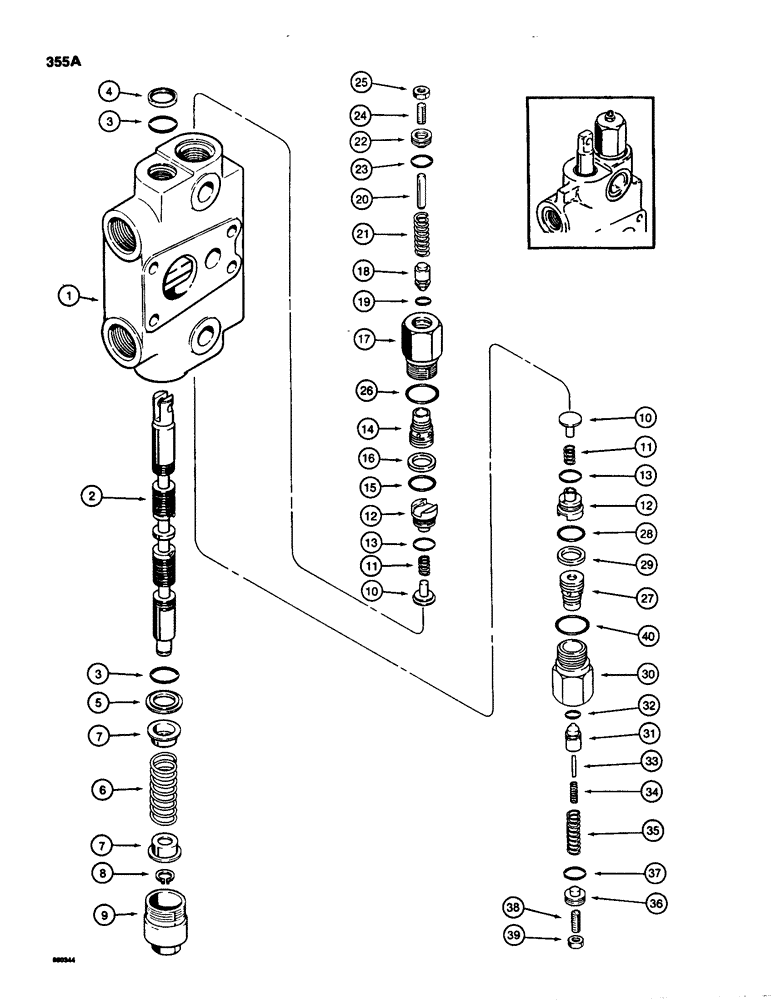

Запчасти Case 580D (355A) - BACKHOE CONTROL VALVE, BOOM SECTION, NOT USED ON SUPER D MODELS (08) - HYDRAULICS

G103398

VALVE BLOCK

SECTION ASSEMBLY - boom, circuit relief valve with one piece cap, see Figure 352 for circuit relief valves with round retainer and snap ring at outer end of circuit relief cap, Includes: Ref. 1 - 26

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - boom section

1шт.

3

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- body

2шт.

4

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

- spool

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

- O-ring

1шт.

6

G34463

SPRING

CENTERING SPRING - spool

1шт.

7

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT - centering spring

2шт.

8

G33077

SNAP RING,#47, Ext

Ring, Snap, , retainer #47, Ext

1шт.

9

G33080

CAP

- centering spring

1шт.

10

G33081

VALVE POPPET

POPPET - load check valve

2шт.

11

G33573

SPRING

- load check valve

2шт.

12

G33084

PLUG

- load check valve

2шт.

13

G33686

O-RING,0.07" Thk x 0.61" ID

- plug

2шт.

G109441

KIT

CIRCUIT RELIEF VALVE ASSEMBLY - upper, one piece cap, replaces G103396 valve in production, see Figure 352, order G109448 kit for service, Includes: Ref. 14 - 26

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.

14

NSS

NOT SOLD SEPARAT

SEAT - circuit relief valve

1шт.

15

G107675

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- small, seat

1шт.

16

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

BACKUP RING - small O-ring, seat

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - circuit relief valve

1шт.

18

NSS

NOT SOLD SEPARAT

POPPET - circuit relief valve

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - poppet

1шт.

20

NSS

NOT SOLD SEPARAT

PIN - stop, circuit relief valve spring

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING - circuit relief valve

1шт.

22

NSS

NOT SOLD SEPARAT

PISTON - circuit relief valve

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

24

178-890

SET SCREW,Hex Soc, 5/16"-24 x 1"

- hex socket headless, 5/16" - 24 NF x 1", oval point, plated

1шт.

25

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

26

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- large, body

1шт.

G109448

KIT

- service for G109441, includes G109446 relief valve assembly (Refs. 14-26) and an instruction sheet

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.

G109445

CIRCUIT RELIEF VALVE ASSEMBLY - lower, one piece cap, replaces G34672 valve in production, see Figure 352, order G109449 kit for service, Includes: Ref. 27 - 40

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.

27

NSS

NOT SOLD SEPARAT

SEAT - circuit relief valve

1шт.

28

G107675

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- small, seat

1шт.

29

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

BACKUP RING - small O-ring, seat

1шт.

30

NSS

NOT SOLD SEPARAT

BODY - circuit relief valve

1шт.

31

NSS

NOT SOLD SEPARAT

POPPET - circuit relief valve

1шт.

32

NSS

NOT SOLD SEPARAT

O-RING - poppet

1шт.

33

NSS

NOT SOLD SEPARAT

PIN - relief stop

1шт.

34

NSS

NOT SOLD SEPARAT

SPRING - circuit relief valve, inner

1шт.

35

NSS

NOT SOLD SEPARAT

SPRING - circuit relief valve, outer

1шт.

36

NSS

NOT SOLD SEPARAT

PISTON - circuit relief valve

1шт.

37

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

38

178-890

SET SCREW,Hex Soc, 5/16"-24 x 1"

- hex socket headless, 5/16" - 24 NF x 1", oval point, plated

1шт.

39

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

40

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- large, body

1шт.

G109449

KIT

- service for G109445, includes G109447 relief valve assembly (Refs. 27-40) and an instruciton sheet

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.
