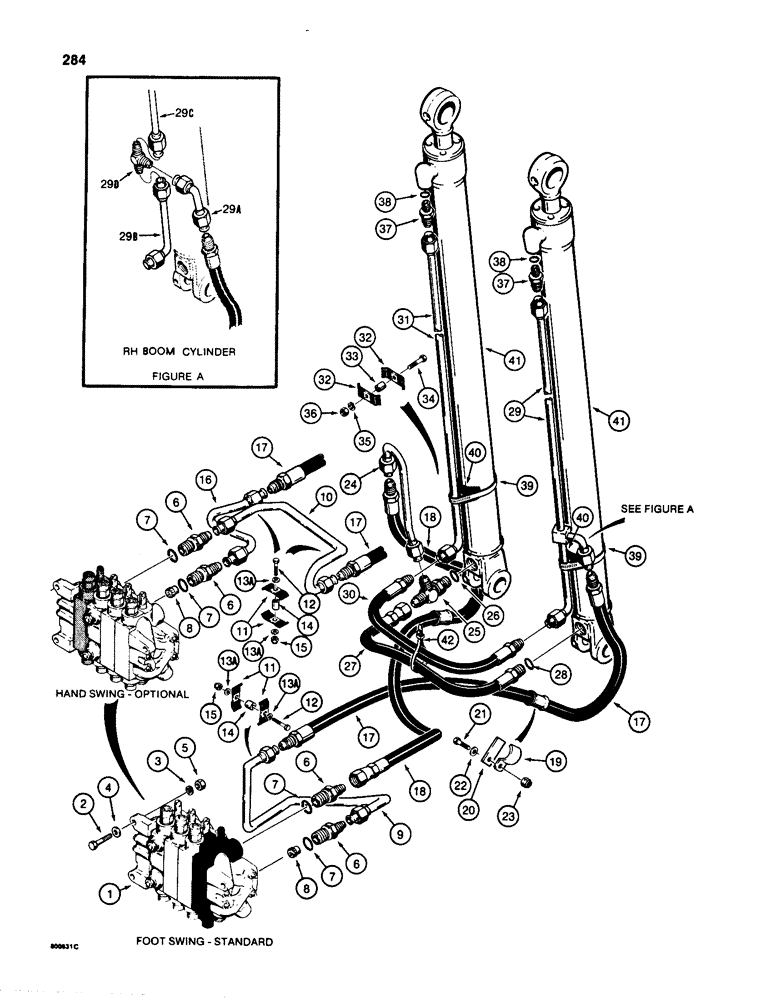

Запчасти Case 580D (284) - BACKHOE BOOM CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
CONTROL VALVE - backhoe, parts list Figure 340 or 342, for mounting plate see Figure 278, valves shown are for models without extendable dipper, for correct valve section location in other valves, see Figure 340 or 342
1шт.
2
113-421
BOLT,Hex, 1/2" - 13 x 2", Gr 5
3шт.
3
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
3шт.
4
95-8
WASHER,1/2"
flat 1/2"
3шт.
5
129-105
NUT,Hex, 1/2" - 13, Gr 5
3шт.
6
HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC
ADAPTER - straight, male, Incl. Ref. 7
2шт.
8
D77182
FITTING
RESTRICTOR - check, lower port, not used on Super D models, Serial Range: -D93207
1шт.
8
D93207
FITTING
RESTRICTOR - check, lower port, used on Super D models only, Start Serial: D77182
1шт.
9
D88964
TUBE,0.75" OD
- bottom port, models with foot swing
1шт.
For special parts used with hydraulic boom lock, see Figure 298.
1шт.
10
D91817
HYD TUBE,19.05 mm OD x 80, 242 mm L
TUBE - top port, models with hand swing
1шт.
For special parts used with hydraulic boom lock, see Figure 298.
1шт.
11
D40236
CLAMP
- metal, boom tube to swing tube, replaces plastic tube clamp on some models
2-4шт.
12
113-219
BOLT,Hex, 3/8" - 16 x 2", Gr 5
1-2шт.
13
RESERVED
1шт.
13a
95-6
WASHER,3/8"
- flat, 3/8"
2шт.
14
D76195
SPACER,10.31mm ID x 15.88mm OD x 17.78mm L
- tube clamps
1-2шт.
15
131-666
LOCK NUT,3/8"-16, GB
NUT - hex, self-locking, 3/8" - 16 NC, plated
1-2шт.
16
D120444
TUBE
- bottom port, models with hand swing
1шт.
17
D88977
HOSE,15.88mm ID x 1300mm L, SAE 100R2
- 51-1/8" (1300 mm) long, to right-hand cylinder on models with
1шт.
*
foot swing or both cylinders on models with hand swing
1-2шт.
18
D88978
HOSE,15.88mm ID x 1350mm L, SAE 100R2
- to left-hand cylinder on models with foot swing
1шт.
19
D93472
CLAMP
- hose, at swing tower
2шт.
20
D93471
PLATE
- clamp
2шт.
21
113-213
BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5
2шт.
22
D41740
WASHER
- flat, 3/8", hardened
2шт.
23
131-52
NUT,3/8"-16, GC
NUT - hex, self-locking, 3/8" - 16 NC, plated
2шт.
24
D69421
HYD TUBE,0.75" OD
TUBE - closed end of left-hand cylinder
1шт.
25
218-5239
TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
- adjustable, male, Includes: Ref. 26
1шт.
26
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
- tee
1шт.
27
D50732
HOSE,12.7mm ID x 652.78mm L, SAE 100R2
- 25-11/16" (653 mm) long, crossover, closed end circuit, Includes: Ref. 28
1шт.
28
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
- hose end
1шт.
29
D69237
TUBE
- to rod end of right-hand cylinder, one piece design, see Refs. 29A-29D, if used
1шт.
29a
D121777
TUBE
- hose to right-hand cylinder tee, if used
1шт.
29b
D121779
TUBE
- tee at right-hand cylinder to crossover hose, if used
1шт.
29c
S207953
TUBE,19.05 mm OD x 760 mm L
- to rod end of right-hand cylinder, if used
1шт.
29d
218-596
TEE,1 1/16"-12 37 Degree
- right-hand cylinder tubes, if used
1шт.
30
D65886
HOSE,12.7mm ID x 457.2mm L, SAE 100R2
- 18" (457 mm) long, crossover, rod end circuit
1шт.
31
D69234
HYD TUBE,0.75" OD x 41.4, 2.75" L
TUBE - to rod end of left-hand cylinder
1шт.
32
D40236
CLAMP
- metal, tube, replaces plastic tube clamps used on some models
2шт.
33
D76195
SPACER,10.31mm ID x 15.88mm OD x 17.78mm L
- tube clamp
1шт.
34
113-213
BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5
1шт.
35
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
36
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
1шт.
37
218-5065
HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB
ADAPTER - straight, male, Includes: Ref. 38
2шт.
38
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
- adapter
1шт.
39
214-267
HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm
CLAMP - cylinder tube
2шт.
40
D38648
BLOCK
SPACER - clamp
2шт.
41
REF
INSTRUCTION
CYLINDER - boom, for correct assembly and components, see parts list Figure 402 or 404
2шт.
42
L18337
CABLE TIE,9.95"-12.1" lg
STRAP - tie, 15 inch, nylon
1шт.
