Запчасти Case 580D (264) - EQUIPMENT HYDRAULIC SYSTEM, OIL COOLER LINES, RETURN LINES AND FILTER (08) - HYDRAULICS

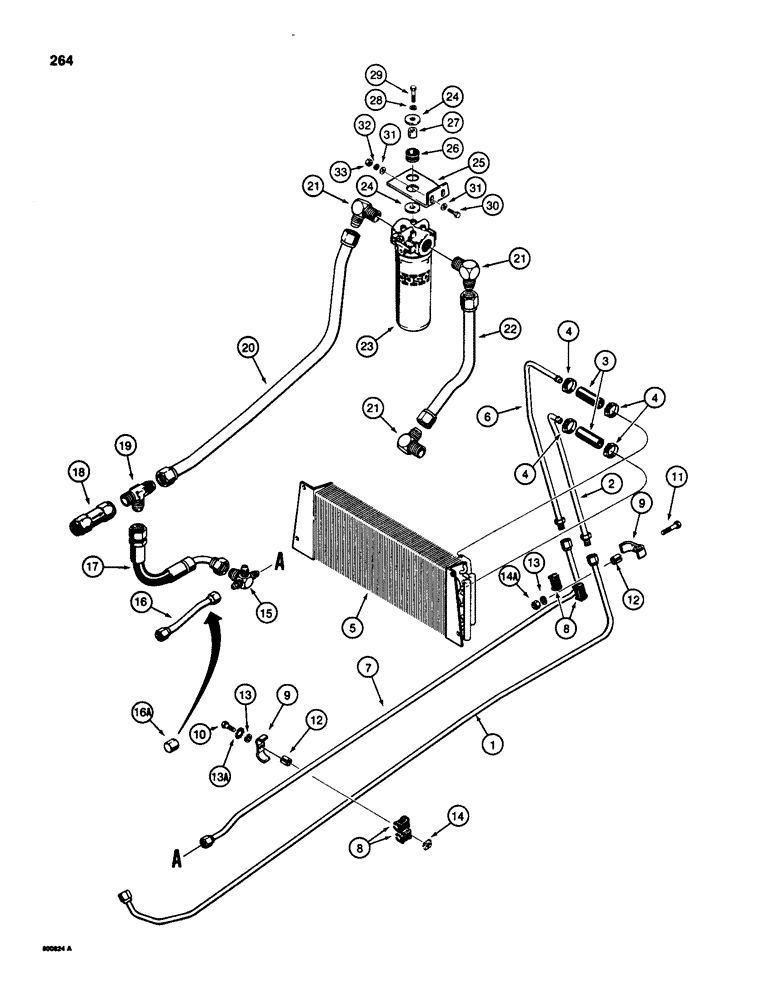

Схема запчастей Case 580D - (264) - EQUIPMENT HYDRAULIC SYSTEM, OIL COOLER LINES, RETURN LINES AND FILTER (08) - HYDRAULICS
22
5
21
14a
12
20
13a
32
4
19
23
8
18
8
33
14
9
17
29
24
16a
9
3
4
25
10
13
16
4
7
15
1
13
27
21
26
6
21
24
2
31
11
30
31
28
12

Артикул

Название

Примечание

Количество

1

D93941

TUBE,12.7 mm OD x 1785, 270 mm L

- from equipment return line

1шт.

2

D93943

TUBE,12.7 mm OD x 291, 58 mm L

- to oil cooler

1шт.

3

REF

INSTRUCTION

HOSE - 1/2" (13 mm) ID x 4" (102 mm) long, oil cooler to tubes, cut from S118388 bulk, see below

2шт.

For connecting steering hydraulic parts see Figure 142. For oil cooler mounting and power shuttle cooling lines see Figure 164.

1шт.

4

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

4шт.

5

D90967

COOLER

OIL COOLER - for oil cooler mounting and power shuttle cooling lines, see Figure 164

1шт.

6

D93939

TUBE,12.7 mm OD x 421, 137 mm L

- from oil cooler

1шт.

7

D93937

TUBE,12.7 mm OD x 1136, 243 mm L

- to equipment return line

1шт.

8

D67296

GROMMET

INSULATOR - oil cooler tubes

4шт.

9

D68646

CLAMP

- oil cooler tubes

2шт.

10

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

11

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

12

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- tube clamps

2шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

13a

193-72

LOCK WASHER

- internal-external tooth lock, 3/8", plated, if used

1шт.

14

25-226

SQUARE NUT,Sq, 3/8"-16

- square, 3/8" - 16 NC, if used

1шт.

14a

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

15

D90059

FITTING

- four-way, special

1шт.

16

D90293

HYD TUBE,15.88 mm OD x 20, 179 mm L

TUBE - unloading valve return, if used

1шт.

16a

218-756

CAP,37 Degree, 7/8"-14

Used in place of Ref. 16 on models without unloading valve 37º, 7/8"-14

1шт.

17

D90273

HOSE

- special, to main return tube

1шт.

18

D89332

VALVE

CHECK VALVE - return line

1шт.

19

218-618

TEE,1 1/16"-12, 37º x 1"-11 1/2, NPTF Run

- male, return line

1шт.

20

D89900

TUBE,25.4 mm OD x 446, 590 mm L

- return, to filter

1шт.

21

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree, at filter and reservoir

3шт.

22

D89902

HYD TUBE,25.4 mm OD x 354, 78 mm L

TUBE - filter to reservoir

1шт.

23

D122362

FILTER

- hydraulic oil, parts list Figure 384

1шт.

24

195-2042

WASHER,.469" x 1 1/2" x .134"

- flat, 3/8", special

4шт.

25

D89897

BRACKET

- filter mounting

1шт.

26

D67915

GROMMET

- filter mounting bracket

2шт.

27

D89934

BUSHING

SPACER - filter mounting

2шт.

28

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

29

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

30

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

31

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

4шт.

32

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

33

9635082

NUT,5/16" - 18, Gr 5

2шт.

S118388

HOSE,0.50" ID x 168.00", SAE 100R3

Bulk 0.50" ID x 168.00", SAE 100R3

1шт.

For connecting steering hydraulic parts see Figure 142. For oil cooler mounting and power shuttle cooling lines see Figure 164.

1шт.

Выбрано товаров: 39
