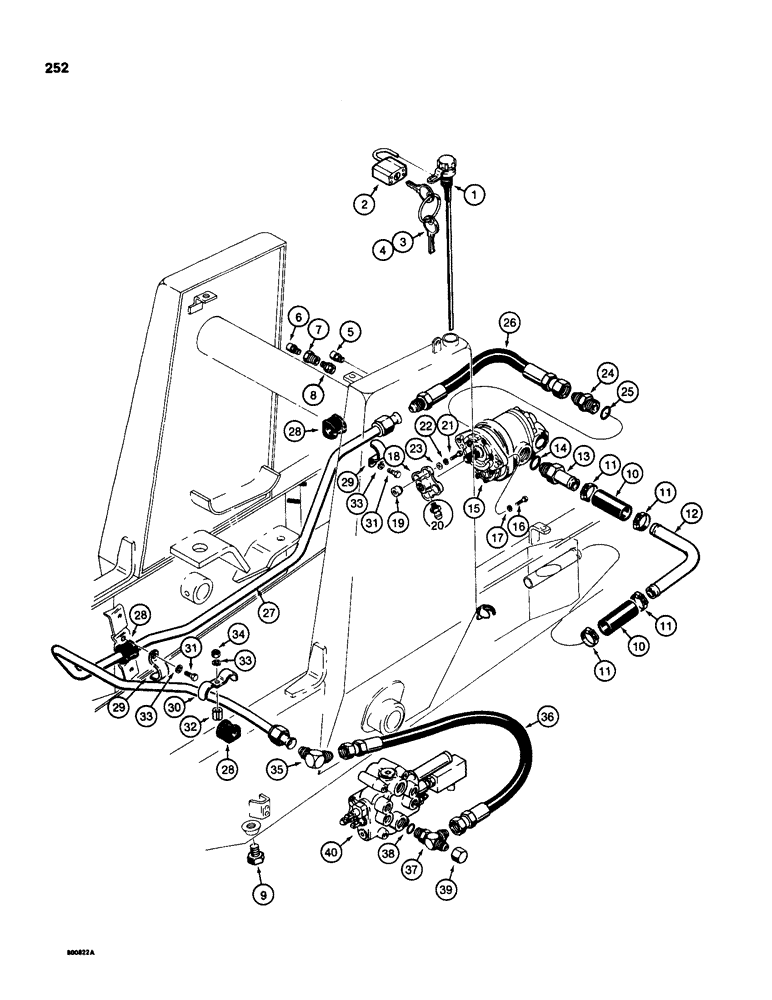

Запчасти Case 580D (252) - EQUIPMENT HYDRAULIC SYSTEM, RESERVOIR TO LOADER CONTROL VALVE (08) - HYDRAULICS

1

D94386

DIPSTICK

- reservoir

1шт.

2

D93753

PADLOCK

- includes keys, if used, Includes: Ref. 3 and 4

1шт.

3

R29555

KEY

- for Master padlock only

2шт.

4

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

5

D94060

VALVE

RELIEF VALVE - air outlet

1шт.

6

R15538

VALVE

BREATHER - air inlet

1шт.

7

D63506

ADAPTER

- relief valve

1шт.

8

D63543

BREATHER

FILTER - relief valve

1шт.

9

D123893

PLUG

DRAIN PLUG - reservoir, hex head, 3/4" NPT

1шт.

10

REF

INSTRUCTION

HOSE - suction, 1-1/4" (32 mm) ID x 4" (102 mm) long, cut to required length from S118465, see below

1шт.

11

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

4шт.

12

D89585

HYD TUBE,31.8 mm OD x 190, 206 mm L

TUBE - suction

1шт.

13

217-178

FITTING,1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

STEM FITTING - at pump, Incl. Ref. 14

1шт.

14

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- stem fitting

1шт.

15

REF

INSTRUCTION

HYDRAULIC PUMP - equipment, parts list Figure 308

1шт.

16

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

17

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

18

D90883

SPLINED COUPLING

COUPLING - hydraulic pump, Includes: Ref. 19 and 20

1шт.

19

A45216

BUSHING

- coupling

4шт.

20

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

GREASE FITTING - straight, 1/4" - 28 NF

1шт.

21

113-311

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

4шт.

22

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

23

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- flat, special

4шт.

24

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, male, Incl. Ref. 25

1шт.

25

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

26

D68547

HOSE,19.05mm ID x 200mm L, SAE 100R2

- 20" (508 mm) long, pump pressure

1шт.

27

D94523

TUBE

- pressure, used with Parker control valve

1шт.

27

D94529

HYD TUBE,25.4 mm OD x 1247, 660 mm L

TUBE - pressure, used with Hydreco control valve

1шт.

28

D67297

BLOCK

INSULATOR -, Serial Range: tube-clamp

4шт.

29

D68846

CLAMP

- tube, single

2шт.

30

D83594

CLAMP

- tube, double

1шт.

31

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

32

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

- double clamp

1шт.

33

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

34

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

35

218-478

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC

- 90 degree

1шт.

36

D86791

HOSE

- 23-5/8" (600 mm) long, to loader control valve

1шт.

37

218-5298

TEE,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring Run

- valve inlet, Includes: Ref. 38

1шт.

38

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- tee

1шт.

39

218-335

CAP,37 Degree, 1 1/16"-12

Tee 37º, 1 1/16"-12

1шт.

40

REF

INSTRUCTION

CONTROL VALVE - loader, for correct assembly and components, see parts list Figures 310, 312, 326, 328

1шт.

S118465

HOSE,1.25" ID x 180.00", SAE 100R3

1.25" ID x 180.00", SAE 100R3

1шт.
