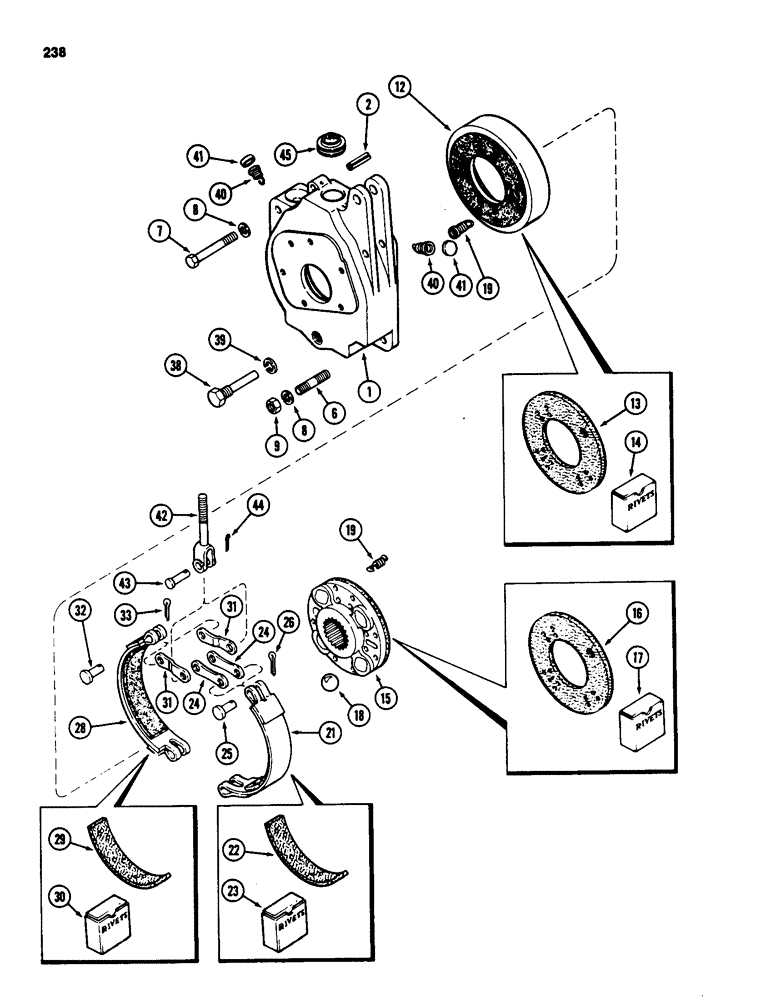

Запчасти Case 580D (238) - TRANSAXLE DIFFERENTIAL BRAKE HOUSING AND BRAKE, WITHOUT TURBOCHARGER (07) - BRAKES

1

A152924

COVER

HOUSING - brake, right

1шт.

1

A152923

BRAKE

HOUSING - brake, left

1шт.

2

138-2068

PIN,3/8" x 2 1/2", Coiled

Spring anchor 3/8" x 2 1/2", Coiled

2шт.

6

A27637

STUD

- brake housing, 1/2 NC x 2-5/8 inch

4шт.

7

113-450

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

- hex, brake housing, 1/2 x 3-3/4 inch NC

2шт.

7

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

Brake housing Hex, 1/2"-13 x 4", G5

2шт.

8

92-8

LOCK WASHER,1/2"

8шт.

9

25-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

4шт.

A157157

BRAKE

ASSEMBLY - (Replaces A156383), Includes: Ref. 12 - 33

2шт.

12

A47886

BRAKE DRUM

DRUM ASSEMBLY - brake, with lining, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

LINING - brake drum (Order A44720, set of 2 linings, and 35 rivets)

1шт.

14

A48195

RIVET

- lining retaining, brass

16шт.

15

A47885

BRAKE DISC

DISC ASSEMBLY - brake, with lining, Includes: Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

LINING - brake disc (Order A44720, set of 2 linings, and 35 rivets)

1шт.

17

A48195

RIVET

- lining retaining, brass

16шт.

18

211-21

BALL

- 1 inch (25 mm) diameter

4шт.

19

A47524

SPRING

- disc return

2шт.

NSS

NOT SOLD SEPARAT

BAND ASSEMBLY - brake, inner (Order A48372, set of 2) (Reference No. A47883), Includes: Ref. 21 - 26

1шт.

21

NSS

NOT SOLD SEPARAT

BAND - brake, with lining (Reference No. A47938), Includes: Ref. 22 and 23

1шт.

22

NSS

NOT SOLD SEPARAT

LINING - brake band

1шт.

23

A47682

RIVET

- lining retaining, steel (Package of 18)

8шт.

24

G46345

LINK

- inner band actuating

2шт.

25

G49082

PIN,14.22mm OD x 40.03mm L

- clevis, Serial Range: link-band

1шт.

26

132-30

COTTER PIN,3/32" x 1 1/4"

PIN - cotter, 3/32 x 3/4 inch

1шт.

NSS

NOT SOLD SEPARAT

BAND ASSEMBLY - brake, outer (Order A48372, set of 2) (Reference No. A47884), Includes: Ref. 28 - 33

1шт.

28

NSS

NOT SOLD SEPARAT

BAND - brake, with lining (Reference No. A47938), Includes: Ref. 29 and 30

1шт.

29

NSS

NOT SOLD SEPARAT

LINING - brake band

1шт.

30

A47682

RIVET

- lining retaining, steel (Package of 18)

8шт.

31

G46344

LINK

- outer band actuating

2шт.

32

G49082

PIN,14.22mm OD x 40.03mm L

- clevis, Serial Range: link-band

1шт.

33

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

38

G15801

BOLT

ANCHOR - brake bands

2шт.

39

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

40

A157705

SPRING

- brake band return (Replaces A156105)

4шт.

41

41-13

GUARD,Exp, 13/16"

- return spring hole, 13/16 inch expansion (21 mm)

4шт.

42

A154737

ROD

- brake actuating

2шт.

43

141-64

CLEVIS PIN,7/16" x 1.190"

rod to brake links 7/16" x 1.190"

2шт.

44

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

45

A135946

DUST CAP

SEAL - dust, brake housing

2шт.
