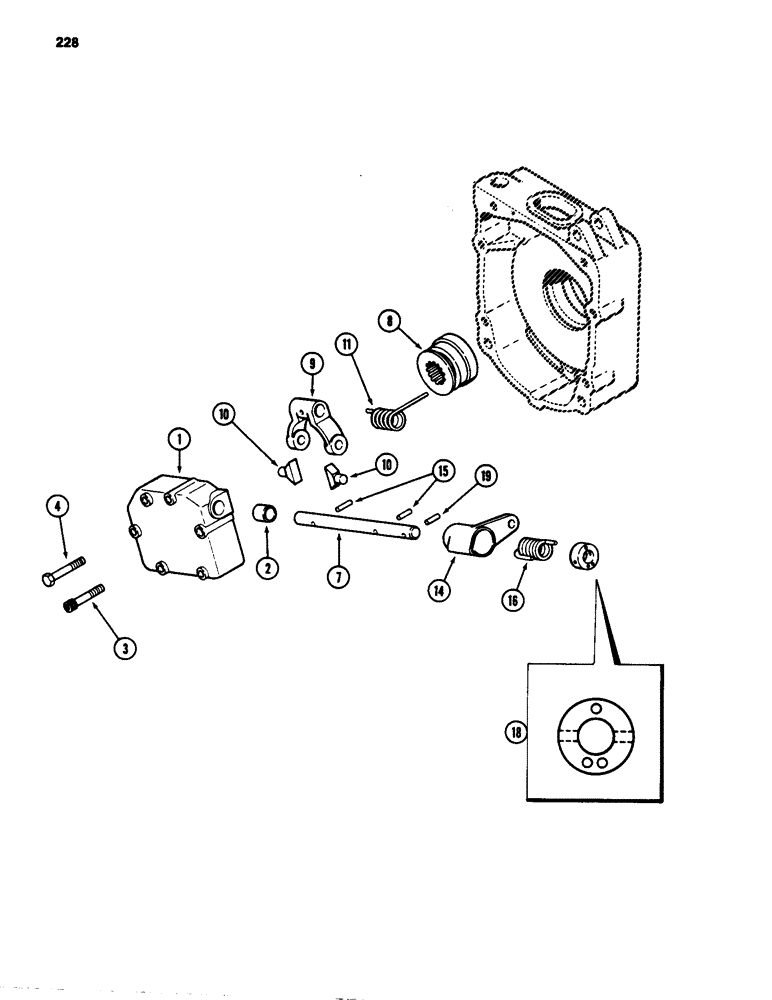

Запчасти Case 580D (228) - TRANSAXLE DIFFERENTIAL LOCK, WITH TURBOCHARGER (06) - POWER TRAIN

1

A155606

COVER

ASSEMBLY - lock (on RH brake housing), Includes: Ref. 2

1шт.

2

A35925

BUSHING

- cover, 5/8 x 3/4 x 3/4 inch (16 x 19 x 19 mm)

1шт.

3

61-536

HEX SOC SCREW,5/16"-18 x 2 1/4"

SCREW - hex cover, 5/16 NC x 2-1/4 inch

5шт.

4

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

Cover Hex, 5/16"-18 x 2 1/2", G5

5шт.

7

A158385

SHAFT

- actuating (Replaces A155597)

1шт.

8

A156373

COLLAR

- differential lock (Replaces A155100)

1шт.

9

A38749

LEVER

- collar throw-out

1шт.

10

A65101

FINGER

S - lever to collar (Replaces A65101)

2шт.

11

A156559

SPRING

- throw-out lever (Replaces A35933)

1шт.

14

A148426

LEVER

- actuating

1шт.

15

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, , Levers to shaft 3/16" x 1", Slotted

2шт.

16

A36446

SPRING

- actuating lever

1шт.

18

A148619

RETAINER

- actuating lever spring (Replaces A148619)

1шт.

19

138-319

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, , Retainer to shaft 3/16" x 1 1/4", Slotted

1шт.
