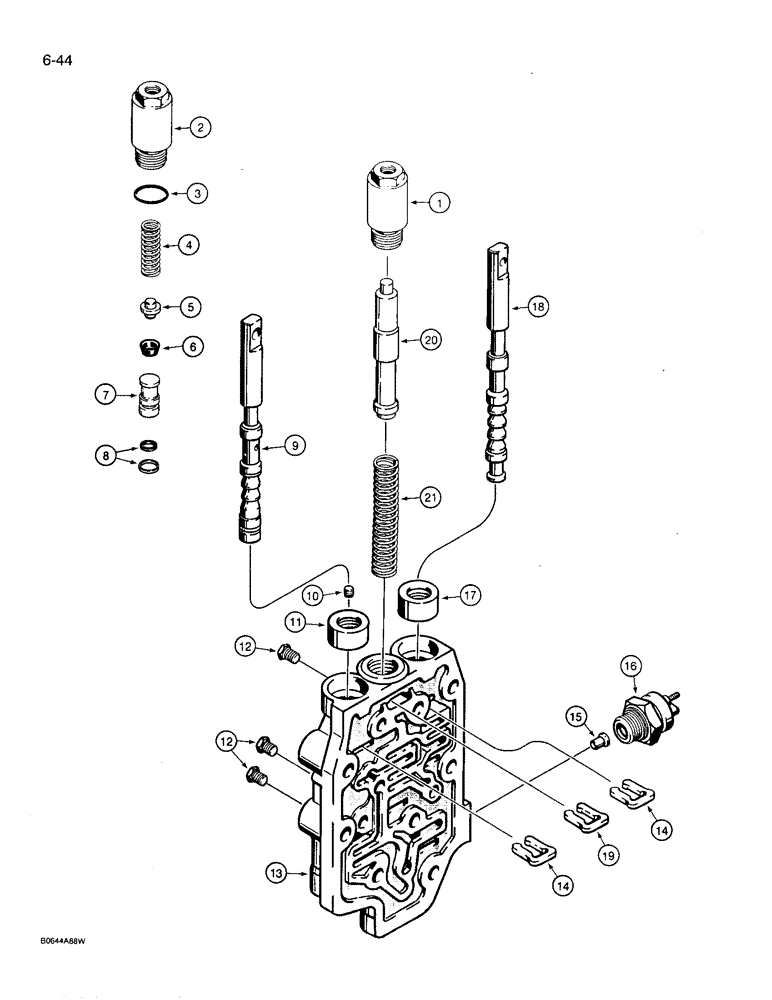

Запчасти Case 780D (6-44) - TRANSMISSION CONTROL VALVE ASSEMBLY, TWO WHEEL AND FOUR WHEEL DRIVE MODELS (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - two wheel and four wheel drive, see Figure 6-22 for transmission options, parts list Figures 6-22 - 6-46, Includes: Ref. 1 - 21

1шт.

N14399

CHECK VALVE

CONTROL VALVE ASSEMBLY - transmission, forward and reverse, Includes: Ref. 1 - 21

1шт.

1

N7711

ACTUATOR

ASSEMBLY - hydraulic, Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - actuator

1шт.

3

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- actuator body

1шт.

N14401

PIN

KIT - pin and spring, piston balance, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING - piston balance

1шт.

5

NSS

NOT SOLD SEPARAT

PIN - spring retaining

1шт.

6

D87210

SEAL

CUP - actuator

1шт.

7

N7712

PISTON

- inching

1шт.

8

D87218

SEAL

- piston

1шт.

9

E114395

SPOOL

- range selector, Includes: Ref. 10

1шт.

10

221-850

PLUG,Hex Soc, 1/16"-27

- hex socket head, 1/16" NPT

1шт.

11

D63387

OIL SEAL,15.88mm ID x 28.7mm OD x 13.87mm Thk

- oil, body

1шт.

12

221-660

PLUG,Hex Hd, 1/16"-27

- hex head, 1/16" NPT

3шт.

13

NSS

NOT SOLD SEPARAT

BODY - transmission control valve

1шт.

14

E114397

STOP

- spool

2шт.

15

E114398

PIN

- neutral start switch

1шт.

16

E114399

SWITCH

- neutral start

1шт.

17

D63387

OIL SEAL,15.88mm ID x 28.7mm OD x 13.87mm Thk

- oil, body

1шт.

18

N7205

SPOOL

- control valve, forward and reverse

1шт.

19

E114397

STOP

- spool

1шт.

20

E114401

SPOOL

- clutch cutout

1шт.

21

D87217

SPRING

- control valve

1шт.
