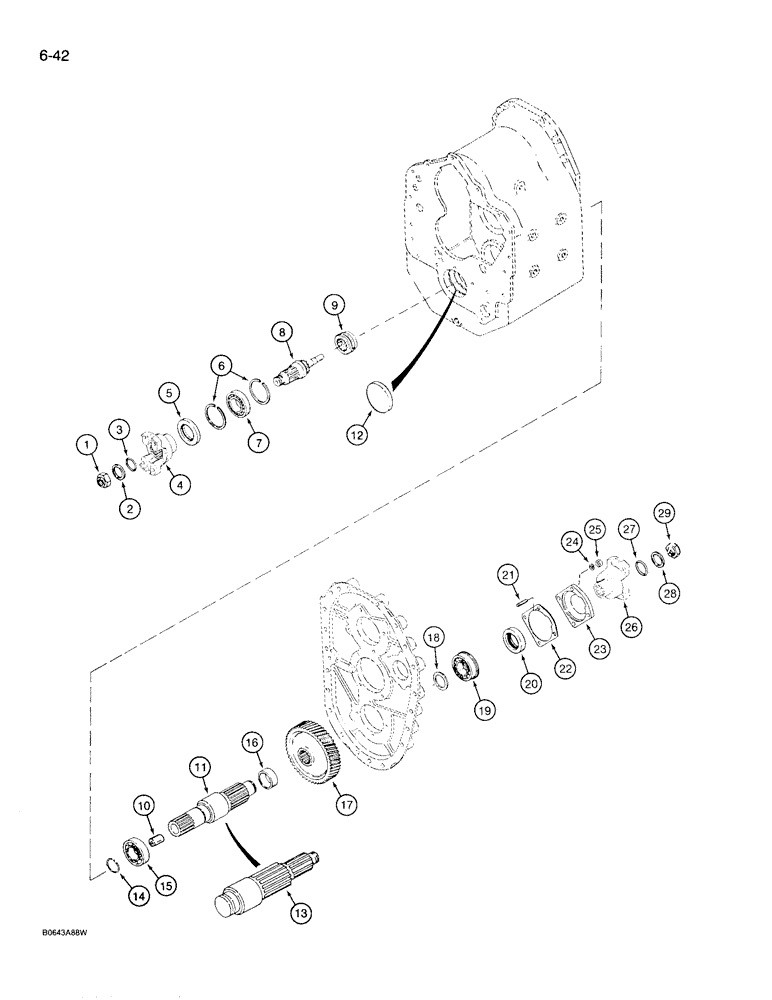

Запчасти Case 780D (6-42) - TRANSMISSION OUTPUT SHAFT, 2W & 4WD MODELS (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - two wheel and four wheel drive, see Figure 6-22 for transmission options, parts list Figures 6-22 - 6-46, Includes: Ref. 1 - 29

1шт.

1

131-487

LOCK NUT,1 1/4"-18

NUT - hex, 1-1/4" - 18 National Extra Fine, 4wd models only

1шт.

2

A55828

WASHER

- special, flange, 4wd models only

1шт.

3

A30916

O-RING,1.475" ID x 1.875" OD x 0.21"

- flange, 4wd models only

1шт.

4

E105010

CLAMP

FLANGE - front output, 4wd models only

1шт.

5

D77023

SEAL

- oil, front output, 4wd models only

1шт.

6

D47486

SNAP RING

RING - retaining, bearing, 4wd models only

2шт.

7

S97381

BALL BEARING

BEARING - disconnect shaft, 4wd models only

1шт.

8

D142597

SHAFT

- front, disconnect, 4wd models only

1шт.

9

D142598

HUB

- shift, 4wd models only

1шт.

D142599

SHAFT

ASSEMBLY - output, 4wd models only, Includes: Ref. 10 and 11

1шт.

10

A17976

BUSHING

- output shaft

1шт.

11

NSS

NOT SOLD SEPARAT

SHAFT - output, 4wd models only

1шт.

12

L33529

PLUG

- bore, output shaft front bearing, 2wd models only

1шт.

13

D142552

SHAFT

- output, 2wd models only

1шт.

14

E104161

RING

- retaining, bearing, 2wd & 4wd models only

1шт.

15

E114340

BALL BEARING

BEARING - front, output shaft, 2wd & 4wd models only

1шт.

16

N8141

SPACER

- gear, 2wd & 4wd models only

1шт.

17

D142553

GEAR

- output shaft, 2wd & 4wd models only

1шт.

18

N8139

SPACER

WASHER - thrust, gear, 2wd & 4wd models only

1шт.

19

S98375

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

BEARING - rear, output shaft, 2wd & 4wd models only

1шт.

20

E114372

OIL SEAL,53.98mm ID x 79.55mm OD x 9.53mm Thk

- oil, rear bearing, 2wd & 4wd models only

1шт.

21

N7210

STUD

- bearing cap, 2wd & 4wd models only

4шт.

22

N7206

GASKET

- bearing cap, 2wd & 4wd models only

1шт.

23

N7207

BEARING CAP

CAP CYLINDER END - bearing, 2wd & 4wd models only

1шт.

24

192-24

LOCK WASHER,9/16"

WASHER, LOCK, , 2WD & 4WD models only 9/16"

4шт.

25

129-126

NUT,9/16"-18, G8

- hex, 9/16" - 18 NF, plated, 2wd & 4wd models only

4шт.

26

A19928

FLANGE

- output, rear, 2wd & 4wd models only

1шт.

27

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

- flange, 2wd & 4wd models only

1шт.

28

A17938

WASHER

- flange, 2wd & 4wd models only

1шт.

29

A55863

LOCK NUT

- hex, 1" - 20 NF, 2wd & 4wd models only

1шт.
