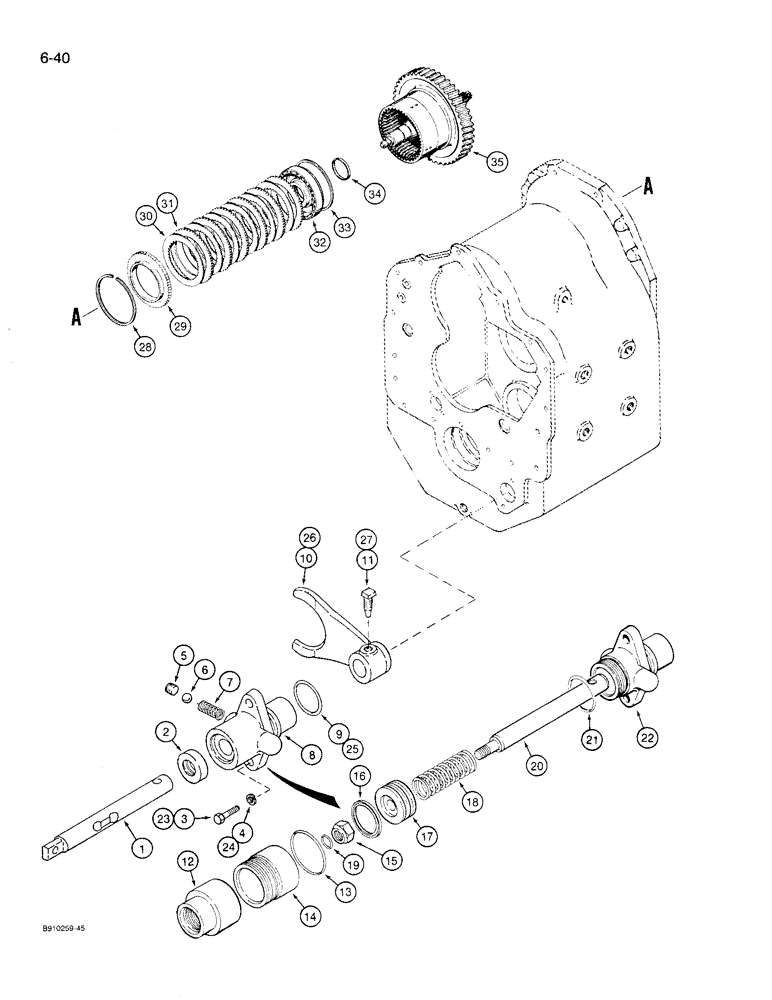

Запчасти Case 780D (6-40) - TRANS THIRD CLUTCH & 4WD SHIFT MECHANISM, 2W & 4WD MODELS (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
REF
INSTRUCTION
TRANSMISSION ASSEMBLY - two wheel and four wheel drive, see Figure 6-22 for transmission options, parts list Figures 6-22 - 6-46, Includes: Ref. 1 - 35
1шт.
1
D142600
RAIL
- shift, 4wd models only prior pin JJG0070953
1шт.
2
N13104
OIL SEAL
SEAL, OIL - shift rail, 4wd models only prior pin JJG0070953
1шт.
3
13-618
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5
4WD models only prior pin JJG0070953 Hex, 3/8"-16 x 1 1/8", G5, Full Thd
2шт.
4
192-21
LOCK WASHER,3/8"
WASHER, LOCK, , 4wd models only prior pin JJG0070953 3/8"
2шт.
5
221-841
PLUG
- hex socket head, 1/4" NPT, 4wd models only prior pin JJG0070953
1шт.
6
211-212
BALL
- 7/16", grade 25, chrome alloy steel, detent, 4wd models only prior pin JJG0070953
1шт.
7
S89686
SPRING
- detent, 4wd models only prior pin JJG0070953
1шт.
8
S89684
SUPPORT
- shift rail, 4wd models only prior pin JJG0070953
1шт.
9
A30915
O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro
- shift rail support, 4wd models only prior pin JJG0070953
1шт.
10
S92358
FORK
LEVER - shift, 4wd models only prior pin JJG0070953
1шт.
11
A17958
LOCK SCREW,3/8" - 24 x 27/32"
SCREW - special, 3/8 inch NF, lock, shift lever, 4wd models only prior pin JJG0070953
1шт.
D150524
CYLINDER
ASSEMBLY - 18.789 mm ID x 15.87 mm stroke, airshift, 4wd models only prior pin JJG0070953, Includes: Ref. 12 - 22
1шт.
12
D150525
GLAND
ASSEMBLY - cylinder, 4wd models only prior pin JJG0070953 & aft, Includes: Ref. 13
1шт.
13
238-9131
O-RING,1 11/16" ID X 1 7/8" OD, Cl 9
- 1-5/8 ID x 3/32 inch wide, (Replaces 238-9130), 4wd models only prior pin JJG0070953 & aft
1шт.
Ref #13 - 238-9130 O-ring - Replaced by part number 238-9131 O-ring
1шт.
14
D150526
TUBE
- cylinder, 4wd models only prior pin JJG0070953 & after
1шт.
15
D150527
LOCK NUT
NUT, LOCK - piston rod, 4wd models only prior pin JJG0070953 & after
1шт.
16
D150528
SEAL
- piston, 4wd models only prior pin JJG0070953 & after
1шт.
17
D150530
PISTON
- cylinder, 4wd models only prior pin JJG0070953 & after
1шт.
18
D150529
SPRING
- cylinder, 4wd models only prior pin JJG0070953 & after
1шт.
19
355967R1
O-RING,0.364" ID x 0.003" Width
- 3/8 x 1/2 inch, 4wd models only prior pin JJG0070953 & after
1шт.
20
D150531
ROD
- piston, 4wd models only prior pin JJG0070953 & after
1шт.
21
238-5126
O-RING,0.103" Thk x 1.362" ID, -126, Cl 5, 75 Duro
4WD models only prior pin JJG0070953 & after -126, 70 Duro, 1.362" ID x .103" Thk
1шт.
22
D150533
HOUSING
- cylinder, 4wd models only prior pin JJG0070953 & after
1шт.
23
13-618
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5
4WD models only prior pin JJG0070953 & after Hex, 3/8"-16 x 1 1/8", G5, Full Thd
2шт.
24
192-21
LOCK WASHER,3/8"
WASHER, LOCK, , 4wd models only prior pin JJG0070953 & after 3/8"
2шт.
25
A30915
O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro
- shift lever to cylinder housing, 4wd models only prior pin JJG0070953 & after
1шт.
26
S92358
FORK
LEVER - shift, 4wd models only prior pin JJG0070953 & after
1шт.
27
A17958
LOCK SCREW,3/8" - 24 x 27/32"
SCREW - special, 3/8 inch NF, lock, shift lever, 4wd models only prior pin JJG0070953 & after, shift lever
1шт.
NSS
NOT SOLD SEPARAT
CLUTCH ASSEMBLY - third, Includes: Ref. 28 - 35
1шт.
28
E114380
RING, SNAP
SNAP RING - retaining, backing plate, 2wd & 4wd models
1шт.
29
E114381
PLATE
- gear - backing , clutch disc, 2wd & 4wd models
1шт.
30
N7217
DISC,92.66mm ID x 133.6mm OD x 2.41mm Thk
- clutch, friction, inner teeth, 2wd & 4wd models
6шт.
31
E114383
CLUTCH DISC
DISC - , metal, outer teeth, 2wd & 4wd models
6шт.
32
E114392
PISTON
- clutch, 2wd & 4wd models
1шт.
33
E114385
SEAL,123.49mm ID x 133.17mm OD x 9.68mm Thk
RING - piston, outer clutch, 2wd & 4wd models
1шт.
34
E114386
SEAL,50.98mm ID x 58.03mm OD x 3.3mm Thk
- piston, inner clutch, 2wd & 4wd models
1шт.
35
D142551
DRUM
SHAFT - clutch, 2wd & 4wd models
1шт.
Выбрано товаров: 39
