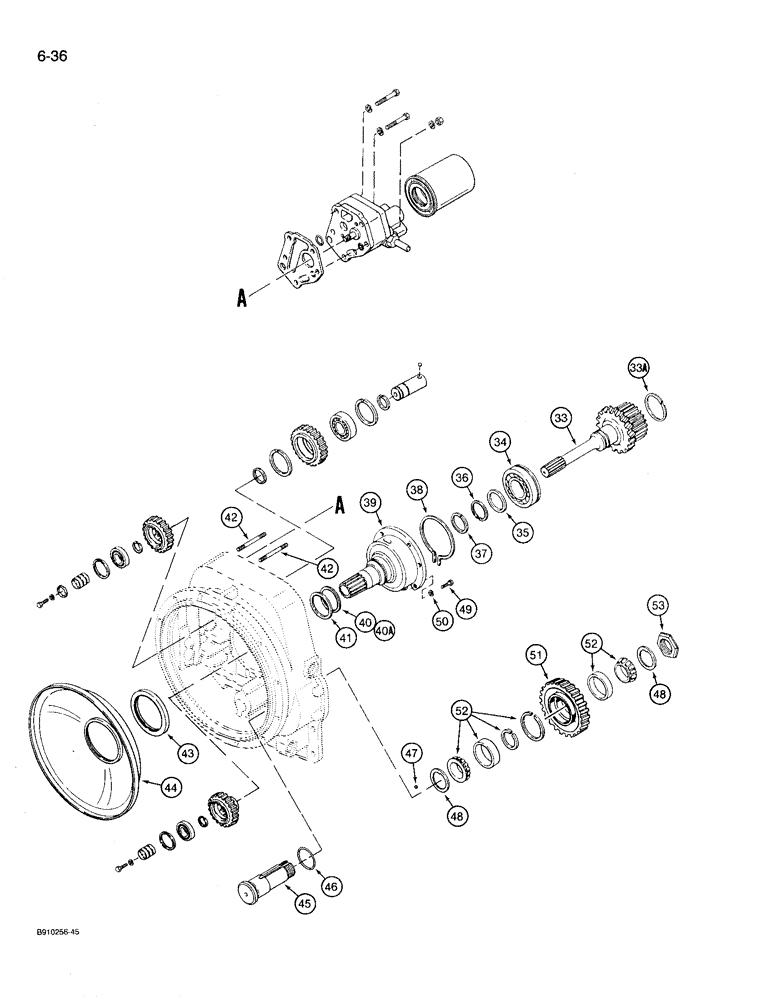

Запчасти Case 780D (6-36) - CHARGING PUMP AND REVERSE IDLER, TWO WHEEL AND FOUR WHEEL DRIVE MODELS (CONT) (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - two wheel and four wheel drive, see Figure 6-22 for transmission options, parts list Figures 6-22 - 6-46, Includes: Ref. 33 - 53

1шт.

33

N7150

SHAFT

- turbine and hub, Includes: Ref. 33A

1шт.

33a

N13129

RING

- retaining, turbine and hub shaft

1шт.

The Oil Retaining Ring is an internal part of the Shaft and it is recommended that the ring should not be removed.

1шт.

34

N7486

BALL BEARING,1.9685" ID x 4.3307" OD x 1.063"

BEARING - turbine shaft

1шт.

35

E114268

BEARING WASHER

WASHER - bearing locating

1шт.

36

E104161

RING

- bearing retaining

1шт.

37

A17901

SEAL

RING - piston

1шт.

38

E114266

RING

- locating, bearing

1шт.

39

N8545

SUPPORT

- stator

1шт.

40

D87245

RING

SPRING - piston ring expander, D141242 and D141243 transmission, see Figure 6-22 for correct transmission

1шт.

40a

D149061

SPRING

- piston ring expander, D147319 transmission, see Figure 6-22 for correct transmission

1шт.

41

N7152

RING

- piston

1шт.

42

N7153

STUD

- pump mounting

3шт.

43

D87224

OIL SEAL,101.6mm ID x 127.2mm OD x 7.92mm Thk

- oil, baffle

1шт.

44

E114272

BAFFLE

- housing

1шт.

45

D142275

SHAFT

- reverse idler

1шт.

46

D27878

O-RING,1.609" ID x 1.887" OD

- idler shaft

1шт.

47

211-208

BALL,5/16" Dia

- 5/16", grade 25, chrome alloy steel

1шт.

48

D142277

PLATE ASSY.

PLATE - thrust

2шт.

49

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

50

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

51

N7155

GEAR

- reverse idler

1шт.

52

N7190

BEARING ASSY,45.24mm ID x 77.81mm OD x 44.67mm W

BEARING - reverse idler gear, matched parts not serviced separately

1шт.

53

D142278

BEARING LOCK NUT

NUT - special

1шт.
