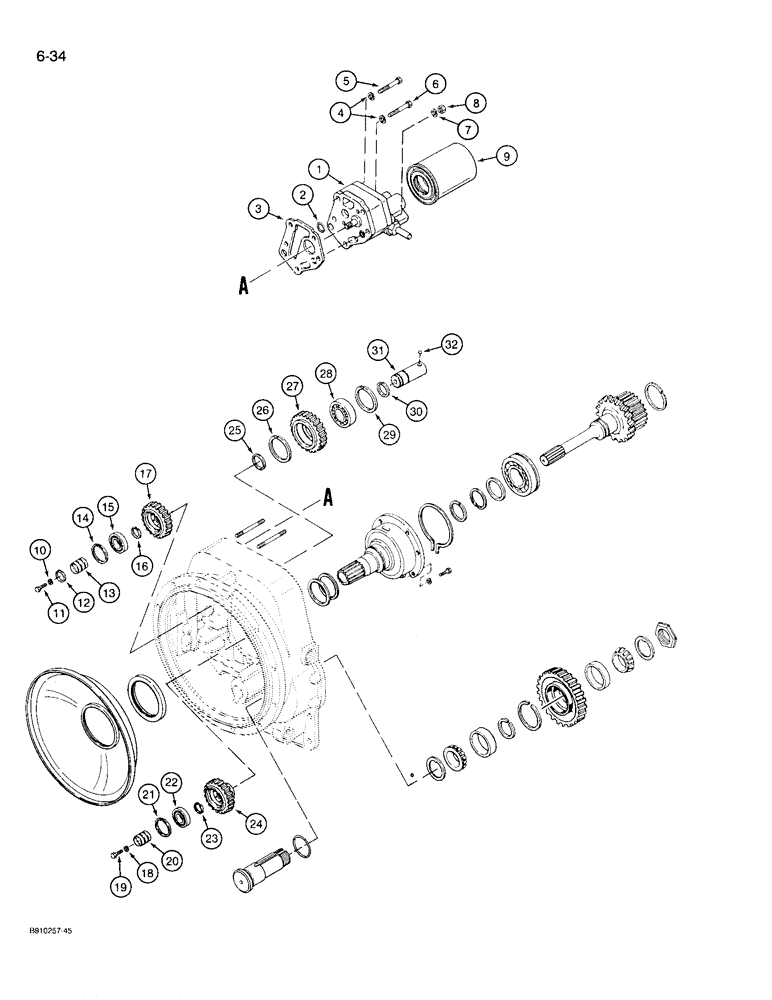

Запчасти Case 780D (6-34) - CHARGING PUMP AND REVERSE IDLER, TWO WHEEL AND FOUR WHEEL DRIVE MODELS (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
REF
INSTRUCTION
TRANSMISSION ASSEMBLY - two wheel and four wheel drive, see Figure 6-22 for transmission options, parts list Figures 6-22 - 6-46, Includes: Ref. 1 - 32
1шт.
1
D87252
PUMP
charging, transmission, uses service kit S301656
1шт.
2
E114251
O-RING
- charging pump
1шт.
3
E114250
GASKET
- charging pump to converter housing
1шт.
4
192-22
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
2шт.
5
113-352
BOLT,Hex, 7/16" - 14 x 4-1/2", Gr 5
1шт.
6
113-321
BOLT,Hex, 7/16" - 14 x 4", Gr 5
2шт.
7
192-22
LOCK WASHER,7/16"
WASHER, LOCK, , Pump mounting stud 7/16"
3шт.
8
25-117
NUT,7/16"-20, G5
- hex, 7/16" - 20 NF, pump mounting stud
3шт.
9
D146735
FILTER
- charging pump
1шт.
10
92-6
LOCK WASHER,3/8"
2шт.
11
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
2шт.
12
E114258
RING
- bearing locating
1шт.
13
E114259
SUPPORT
- pump drive bearing
1шт.
14
L30725
RING
- bearing retaining
1шт.
15
40025
BALL BEARING,1.378" ID x 2.4409" OD x 0.5512"
- pump drive gear
1шт.
16
E114258
RING
- bearing locating
1шт.
17
N7147
GEAR
- pump drive
1шт.
18
92-6
LOCK WASHER,3/8"
2шт.
19
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
2шт.
20
E114259
SUPPORT
- auxiliary pump drive bearing
1шт.
21
E114261
RING
- bearing retaining
1шт.
22
N7254
BALL BEARING,35 mm ID x 71.998 mm OD x 17 mm
BEARING - pump drive gear
1шт.
23
E114258
RING
- bearing locating
1шт.
24
N7203
GEAR
- auxiliary pump drive
1шт.
25
E114258
RING
- bearing locating, idler gear, small
1шт.
26
S89658
RING
- bearing locating, idler gear, large
1шт.
27
N7148
GEAR
- pump drive idler
1шт.
28
A26537
BALL BEARING,34.99mm ID x 80mm OD x 21mm W
BEARING - idler stub shaft
1шт.
29
S89658
RING
- bearing retaining
1шт.
30
E114258
RING
- bearing locating
1шт.
31
N7149
SHAFT
- stub, idler gear
1шт.
32
211-357
BALL,1/4" Dia
- 1/4", grade 200, carbon steel, lock, stub shaft
1шт.
S301656
PACKAGE, REPAIR
KIT service, charging pump shim and gasket, for Ref. 1 D87252 pump
1шт.
Service kit S301656 contains a shaft seal that is nss. Goes between charge pump and conv hsg.
1шт.
