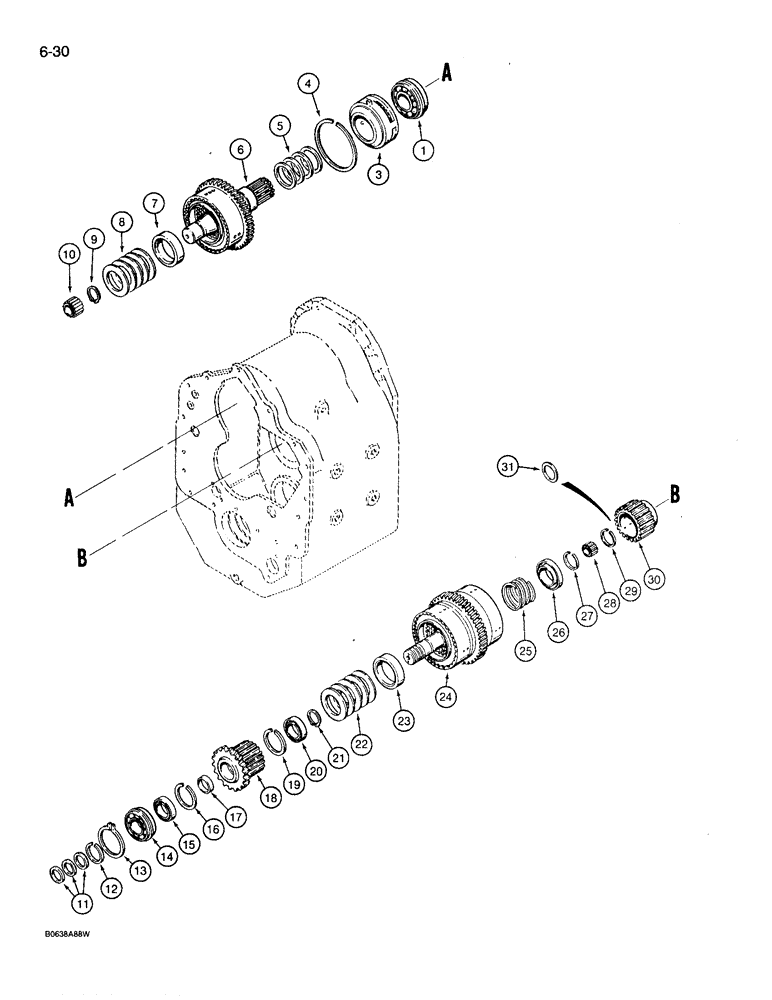

Запчасти Case 780D (6-30) - TRANSMISSION FORWARD, REVERSE, AND SECOND GEARS, 2W & 4WD MODELS (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - two wheel and four wheel drive, see Figure 6-22 for transmission options, parts list Figures 6-22 - 6-46, Includes: Ref. 1 - 31

1шт.

1

N9442

BALL BEARING

BEARING - rear, forward shaft

1шт.

3

E114356

BUSHING

SLEEVE - piston ring

1шт.

4

E114355

RING

- retainer, piston ring sleeve

1шт.

5

A55824

SEAL

RING - piston, forward shaft

4шт.

6

NSS

NOT SOLD SEPARAT

DRUM AND SHAFT ASSEMBLY - forward, parts list Figure 6-28

1шт.

7

N7215

SPACER

- piston return spring

1шт.

8

D87249

SPRING

- Belleville, piston return

5шт.

9

D87257

RING

- snap, spring retainer

1шт.

10

E114339

NEEDLE BEARING,44.44mm ID x 54.02mm OD x 19.05mm W

BEARING - forward pilot shaft

1шт.

11

A17925

SPRING

RING - piston, reverse and second shaft

3шт.

12

L33518

RING

- retainer, front bearing

1шт.

13

S89652

RING

- locating, front bearing

1шт.

14

S89654

BALL BEARING,40mm ID x 90mm OD x 23mm W

BEARING - front, shaft, reverse and second

1шт.

15

A28236

BALL BEARING,1.5743" ID x 2.6772" OD x 0.5906"

BEARING - gear, clutch driven

1шт.

16

E114325

RING, SNAP

RING - retainer, bearing

1шт.

17

E114326

SPACER

- bearing, clutch driven gear

1шт.

18

N7270

GEAR

- reverse clutch, Includes: Ref. 18A

1шт.

18a

N13129

RING

- oil retaining, reverse clutch gear, not shown

1шт.

The oil retaining ring is an internal part of the gear and it is recommended that the ring should not be removed.

1шт.

19

E114325

RING, SNAP

RING - retainer, bearing

1шт.

20

L33513

BALL BEARING,1.6748" ID x 2.6772" OD x 0.5906"

BEARING - gear, clutch driven

1шт.

21

D87257

RING

- snap, spring retainer

1шт.

22

D87249

SPRING

- Belleville, piston return, Replaced by P/N 126570A1 which consists of 5 pieces banded together (serviced as an assembly)

5шт.

23

N7215

SPACER

- spring, piston return

1шт.

24

NSS

NOT SOLD SEPARAT

CLUTCH ASSEMBLY - reverse and second, parts list Figure 6-32

1шт.

25

E114331

SPRING

- piston return

1шт.

26

E114332

RETAINER

- spring

1шт.

27

E114328

RING, SNAP

RING - spring retainer

1шт.

28

N7216

NEEDLE BEARING,1.125" ID x 1.5012" OD x 1"

BEARING - rear, shaft, reverse and second

1шт.

29

E114334

CLIP

RING - retainer, second clutch disc hub

1шт.

30

N8749

GEAR

- second clutch disc hub, Includes: Ref. 31

1шт.

31

N13129

RING

- retaining, second clutch disc hub gear

1шт.

The oil retaining ring is an internal part of the gear and it is recommended that the ring should not be removed.

1шт.
