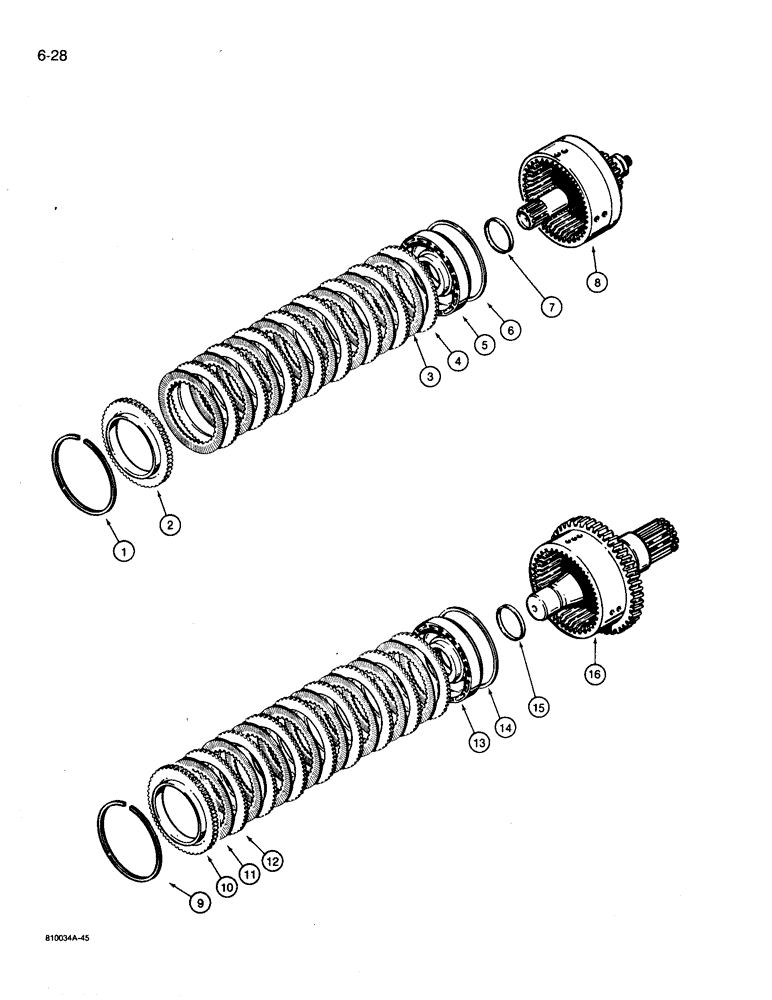

Запчасти Case 780D (6-28) - TRANSMISSION LOW AND FORWARD CLUTCH ASSEMBLIES, 2W & 4WD MODELS (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - two wheel and four wheel drive, see Figure 6-22 for transmission options, parts list Figures 6-22 - 6-46, Includes: Ref. 1 - 16

1шт.

NSS

NOT SOLD SEPARAT

CLUTCH ASSEMBLY - low, Includes: Ref. 1 - 8

1шт.

1

E114380

RING, SNAP

RING - retaining, backing plate

1шт.

2

E114381

PLATE

GEAR - backing plate, clutch disc

1шт.

3

N7219

DISC,92.66mm ID x 133.6mm OD x 2.41mm Thk

- clutch, friction, inner teeth

8шт.

4

E114383

CLUTCH DISC

DISC - clutch, metal, outer teeth

8шт.

5

E114384

PISTON

- clutch

1шт.

6

E114385

SEAL,123.49mm ID x 133.17mm OD x 9.68mm Thk

RING - piston, outer clutch

1шт.

7

E114386

SEAL,50.98mm ID x 58.03mm OD x 3.3mm Thk

- piston, inner clutch

1шт.

8

N7220

DRUM

AND SHAFT - low clutch

1шт.

NSS

NOT SOLD SEPARAT

DRUM AND SHAFT ASSEMBLY - forward, Includes: Ref. 9 - 16

1шт.

9

E114380

RING, SNAP

RING - retaining, backing plate

1шт.

10

E114381

PLATE

GEAR - backing plate, clutch disc

1шт.

11

N7217

DISC,92.66mm ID x 133.6mm OD x 2.41mm Thk

- clutch, friction, inner teeth

8шт.

12

E114383

CLUTCH DISC

DISC - clutch, metal, outer teeth

8шт.

13

E114384

PISTON

- clutch

1шт.

14

E114385

SEAL,123.49mm ID x 133.17mm OD x 9.68mm Thk

RING - piston, outer clutch

1шт.

15

E114386

SEAL,50.98mm ID x 58.03mm OD x 3.3mm Thk

- piston, inner clutch

1шт.

16

N7223

GASKET

DRUM AND SHAFT - forward

1шт.
