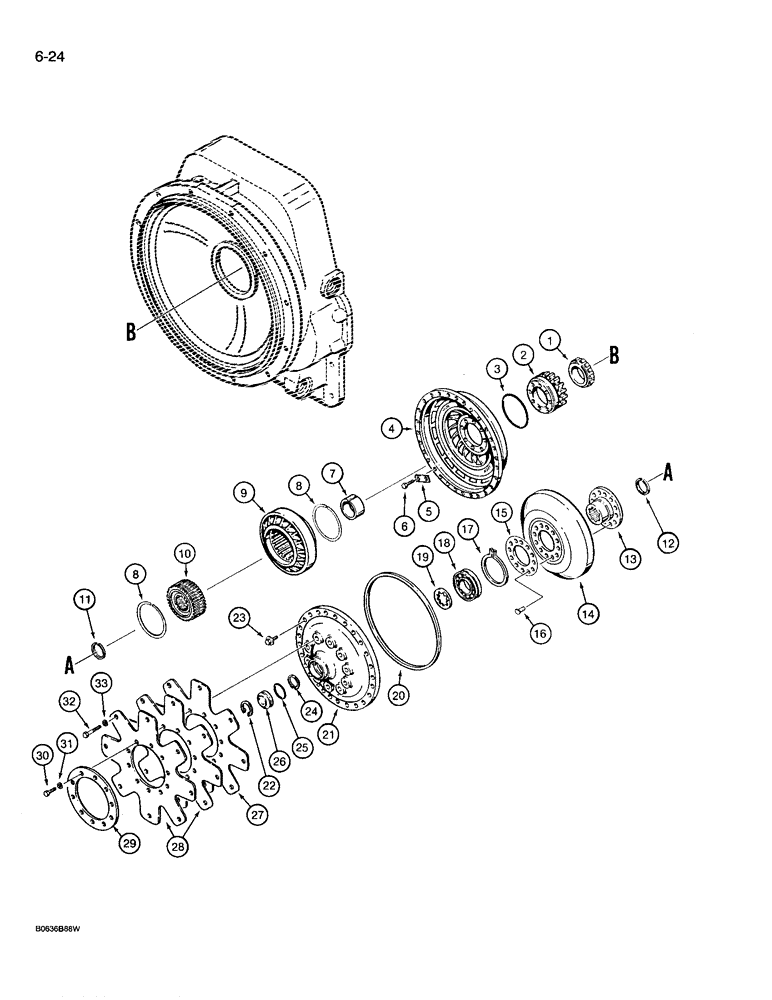

Запчасти Case 780D (6-24) - TRANSMISSION IMPELLER, TURBINE, AND FLEX PLATE, 2W & 4WD MODELS (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - two wheel and four wheel drive, see figure 6-22 for transmission options, parts list Figures 6-22 - 6-46, Includes: Ref. 1 - 31

1шт.

1

N7257

BEARING, ROLLER, CYL,45mm ID x 74.94mm OD x 18.99mm

BEARING - impeller hub gear

1шт.

2

N7191

GEAR

- impeller hub

1шт.

3

E114281

O-RING,3.63mm Thk x 92.89mm ID, 75 Duro

- impeller hub

1шт.

4

N7192

IMPELLER

- torque converter

1шт.

5

E114283

LOCK

TAB - lock, Serial Range: impeller-hub

4шт.

6

28-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 8

- hex head, 3/8" - 24 NF x 3/4", grade 8

8шт.

7

N14257

SPACER

- vane, impeller to hub bearing

1шт.

8

N7262

RING, SNAP

RING - freewheel outer race

2шт.

9

N7377

MEMBER

STATOR - converter

1шт.

10

N7686

CLUTCH ASSEMBLY

CLUTCH - freewheel

1шт.

11

E114286

CIRCLIP

RING - retaining, bearing, small

1шт.

12

E114288

RING

- retaining, hub

1шт.

13

N7378

BRACKET

HUB - turbine

1шт.

14

N7379

TURBINE

- shift

1шт.

15

D142273

WASHER

RING - retainer, Serial Range: turbine-hub

1шт.

16

D142272

LOCK BOLT,Locking, Hex, 3/8" - 24 x 3/4", Gr 8

BOLT - special, Serial Range: turbine-hub

12шт.

17

E114290

RING

- locating, hub bearing

1шт.

18

E114291

BALL BEARING

BEARING - turbine hub

1шт.

19

E114292

WASHER

- bearing retaining

1шт.

20

T42352

SEALING RING,Square, 2.69mm Thk x 64.52mm ID

- impeller to cover

1шт.

N14131

COVER

ASSEMBLY - impeller, Includes: Ref. 21 and 22

1шт.

21

NSS

NOT SOLD SEPARAT

COVER - impeller

1шт.

22

K621779

SNAP RING,1.688, Int, #168

Ring, Snap, 1.688", Int, #168, bore plug

1шт.

23

D58177

CAPTIVE WASHER SCREW,3/8" - 16 x 1"

BOLT - hex head, 3/8" - 16 NC x 1", special

24шт.

24

E114288

RING

- snap, turbine retaining

1шт.

25

A62193

O-RING,1.424" ID x 1.63" OD

- impeller cover, bore plug

1шт.

26

E114296

PLUG

- bore

1шт.

D142271

KIT

- flex plate, drive, Includes: Ref. 27 - 31

1шт.

27

NSS

NOT SOLD SEPARAT

FLEX PLATE - drive, threaded bolt holes

1шт.

28

NSS

NOT SOLD SEPARAT

FLEX PLATE - drive

2шт.

29

E114300

PLATE

RING - flex plate

1шт.

30

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

10шт.

31

92-6

LOCK WASHER,3/8"

10шт.

32

114-204

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

Hex, 3/8-24 x 1 3/4", G5

8шт.

33

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.
