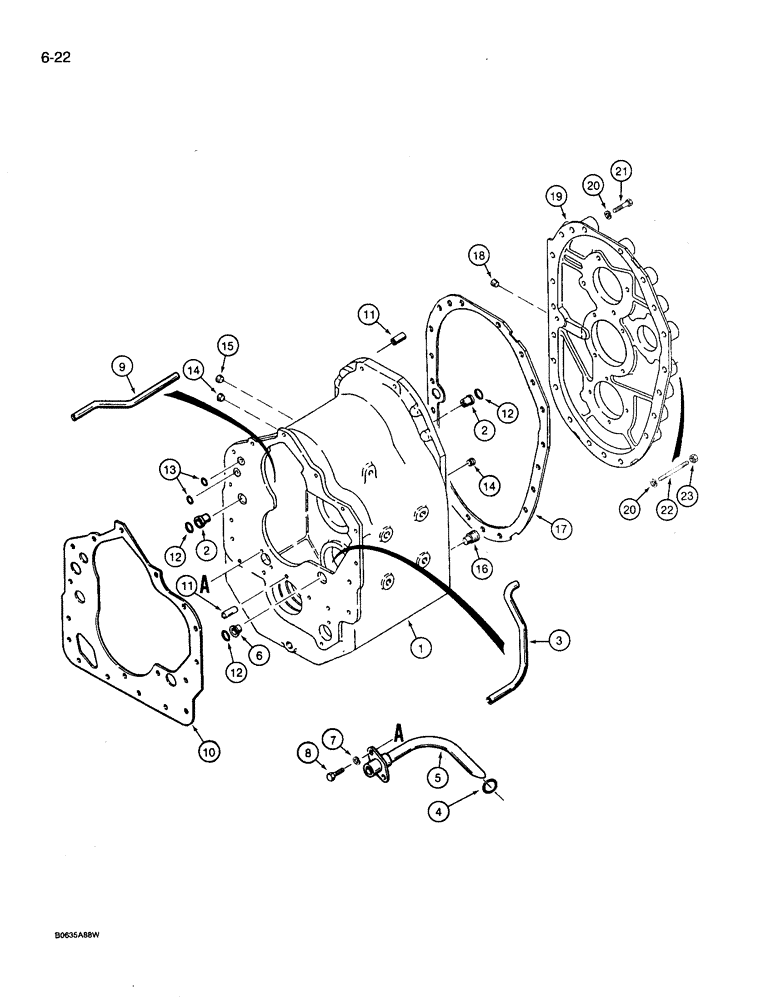

Запчасти Case 780D (6-22) - TRANSMISSION HOUSING, REAR COVER, AND TUBES, 2W & 4WD MODELS (06) - POWER TRAIN

D141242

TRANSMISSION

ASSEMBLY - two wheel drive, forward and reverse, parts list Figures 6-22 - 6-46, Includes: Ref. 1 - 23

1шт.

D141243

TRANSMISSION

ASSEMBLY - four wheel drive, forward and reverse, parts list Figures 6-22 - 6-46, Includes: Ref. 1 - 23, Serial Range: -JJG0071816

1шт.

D147319

TRANSMISSION

ASSEMBLY - four wheel drive, forward and reverse, parts list Figures 6-22 - 6-46, Includes: Ref. 1 - 23, Start Serial: JJG0071816

1шт.

D142548

CASE

HOUSING ASSEMBLY - two wheel drive, transmission case, Includes: Ref. 1 - 9

1шт.

D142596

CASE

HOUSING ASSEMBLY - four wheel drive, transmission case, Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - transmission case

1шт.

2

A55734

SLEEVE

- tube

2шт.

3

N7142

TUBE,0.625" OD x 8.06" L

- clutch lube

1шт.

4

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

- suction tube

1шт.

5

D142566

TUBE ASSY.

TUBE - suction

1шт.

6

D87207

SLEEVE

- tube

1шт.

7

92-5

LOCK WASHER,5/16"

2шт.

8

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

9

N7146

TUBE,12.81" L

- housing

1шт.

10

D142595

GASKET

- transmission housing

1шт.

11

A17924

PIN

- dowel, Serial Range: case-cover

3шт.

12

L33542

O-RING,0.139" Thk x 0.796" ID, -211, Cl 7, 75 Duro

- sleeve tube

3шт.

13

E114251

O-RING

- clutch pressure

2шт.

14

221-841

PLUG

- hex socket head, 1/4" NPT

2шт.

15

221-843

PLUG,Hex Soc, 3/8"-18

- hex socket head, 3/8" NPT

1шт.

16

221-659

DRAIN PLUG,Hex Soc, 3/4" NPT

PLUG - hex socket head, 3/8" NPT, magnetic, drain

1шт.

17

D142547

GASKET

- rear, Serial Range: cover-housing

1шт.

D142543

COVER ASSY

COVER ASSEMBLY - rear, transmission case, Includes: Ref. 18 and 19

1шт.

18

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket head, 1/8" NPT

1шт.

19

NSS

NOT SOLD SEPARAT

COVER - rear, transmission case

1шт.

20

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

20шт.

21

113-323

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

16шт.

22

D142546

STUD

- 7/16" - 14 NC x 3" x 7/16" - 20 NF

4шт.

23

425-117

NUT,7/16"-20, G5

- hex, 7/16" - 20 NF, plated

4шт.
