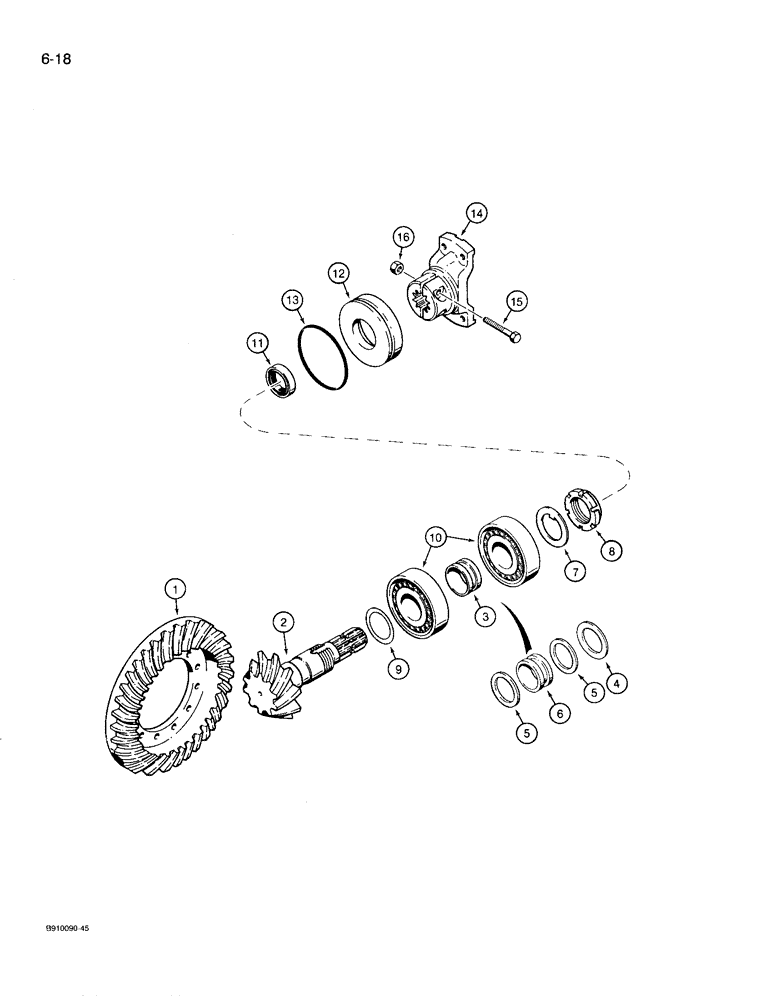

Запчасти Case 780D (6-18) - FOUR WHEEL DRIVE FRONT AXLE, RING AND PINION GEAR SET (06) - POWER TRAIN

A186454

CENTER AXLE

AXLE ASSEMBLY - Carraro 716-21 front four wheel drive, Carraro No. 123072, parts list Figures 6-8 - 6-18, Includes: Ref. 1 - 16

1шт.

D142952

SET

GEAR SET - ring and pinion, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR - ring, differential

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR - pinion, differential

1шт.

3

D142998

SPACER

- bearing, no longer available, order items 4 and 5, washers, and Ref. 6, spacer

1шт.

4

D150105

WASHER

- special

1шт.

5

S300977

WASHER

- bearing spacer, special

2шт.

6

D150104

SPACER

- collapsible, bearing

1шт.

7

D146685

WASHER

- special

1шт.

8

D143000

NUT

RING - nut, pinion gear

1шт.

9

D142953

SHIM,2.50mm Thk

1шт.

9

D142954

BLOCK

SHIM - 2.60 mm thick

1шт.

9

D142955

SHIM,2.70mm Thk

1шт.

9

D142956

SHIM,2.80mm Thk

1шт.

9

D142957

SHIM,2.90mm Thk

1шт.

9

D142958

SHIM,3.00mm Thk

1шт.

9

D142959

SHIM,3.10mm Thk

1шт.

9

D142960

BLOCK

SHIM - 3.20 mm thick

1шт.

9

D142961

SHIM,3.30mm Thk

1шт.

9

D142962

SHIM,3.40mm Thk

1шт.

10

D142963

BEARING

- roller, pinion gear

2шт.

11

N8895

OIL SEAL

- oil

1шт.

12

D142964

FLANGE

COVER - differential

1шт.

13

D142967

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

- cover

1шт.

14

D143026

FLANGE

- drive shaft end

1шт.

15

D142965

SCREW

BOLT - hex head, special

2шт.

16

K965414

NUT

- hex, self-locking, 10 mm - 1.25, special

2шт.
