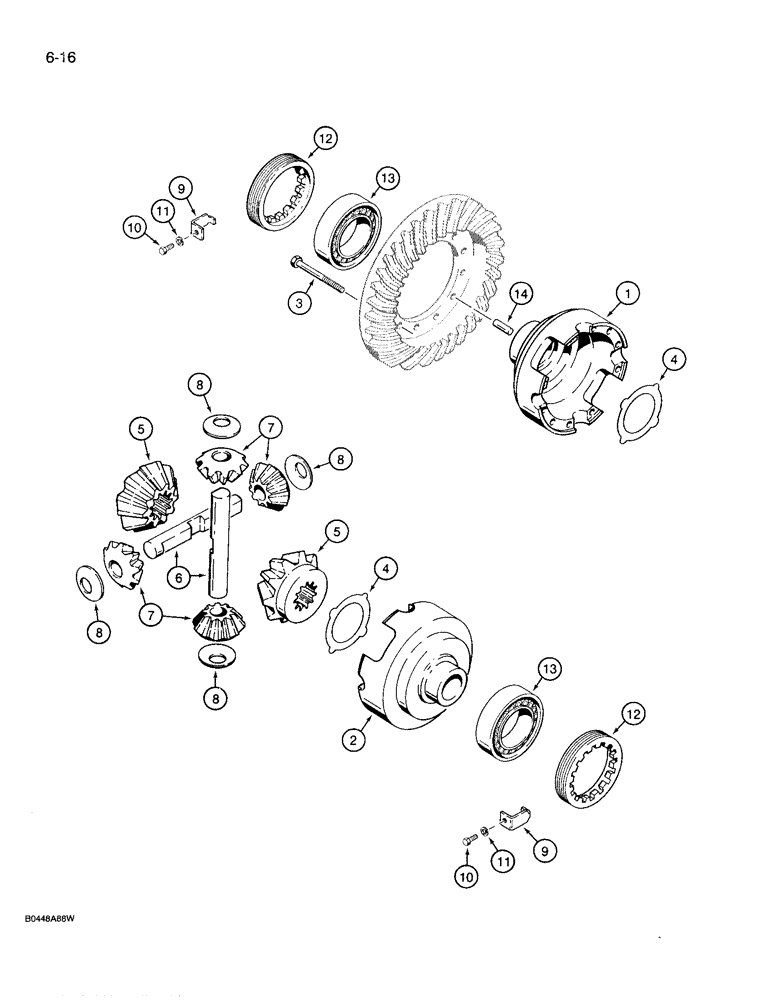

Запчасти Case 780D (6-16) - FOUR WHEEL DRIVE FRONT AXLE, DIFFERENTIAL (06) - POWER TRAIN

A186454

CENTER AXLE

AXLE ASSEMBLY - Carraro 716-21 front four wheel drive, Carraro No. 123072, parts list Figures 6-8 - 6-18, Includes: Ref. 1 - 14

1шт.

D142975

TRANSFER BOX

CASE ASSEMBLY - differential, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

CASE - differential, flange half

1шт.

2

NSS

NOT SOLD SEPARAT

CASE - differential, plain half

1шт.

3

D142974

BOLT

- hex head, special

10шт.

4

D142972

WASHER

SEAL - differential case

2шт.

5

D142971

PINION

GEAR - side, differential

2шт.

6

D142970

SHAFT

- pinion gear

2шт.

7

D142969

SUN GEAR

GEAR - pinion, differential

4шт.

8

D142968

WASHER

- thrust, pinion gear

4шт.

9

K261869

LOCK

BRACKET - lock

2шт.

10

K261871

SCREW

BOLT - hex head, 6 mm - 1 x 12 mm, special

2шт.

11

K261870

WASHER

- lock, 6 mm, special

2шт.

12

D142973

RING

- lock, threaded

2шт.

13

K965339

BEARING

- roller, differential

2шт.

14

D143033

DOWEL

PIN - dowel, ring, Serial Range: gear-case

2шт.
