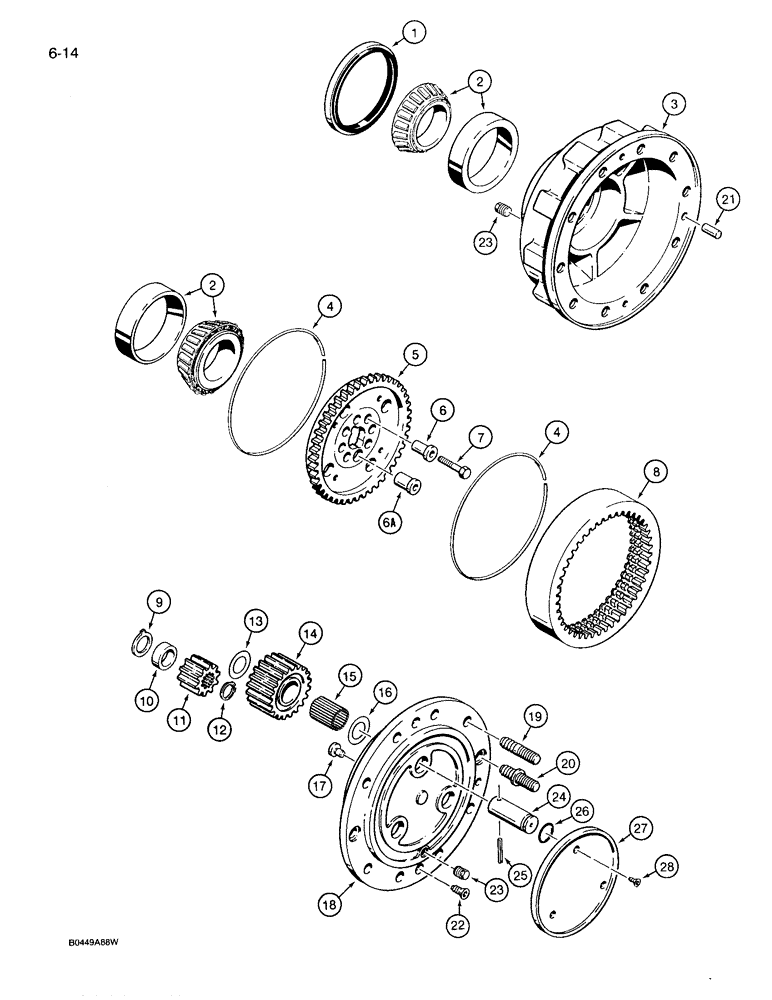

Запчасти Case 780D (6-14) - FOUR WHEEL DRIVE FRONT AXLE, PLANETARY (06) - POWER TRAIN

A186454

CENTER AXLE

AXLE ASSEMBLY - Carraro 716-21 front four wheel drive, Carraro No. 123072, parts list Figures 6-8 - 6-18, Includes: Ref. 1 - 28

1шт.

1

1349265C1

OIL SEAL,149mm ID x 176mm OD x 16mm Thk

- oil, hub, 149 x 176 x 16 (replaces K395102 seal)

2шт.

2

K395101

TAPERED BEARING,109.5mm ID x 126mm x 21.4mm L

BEARING - ball, hub

4шт.

3

D142978

HUB

- wheel attaching

2шт.

4

D142979

RING, SNAP

RING - lock

4шт.

5

D142980

CARRIER

HUB - ring gear

2шт.

6

K395105

RING

BUSHING - 20 mm O.D., centering

14шт.

6a

K395104

RING

BUSHING - 24 mm O.D., centering

2шт.

7

K395131

BOLT,Hex, M14 x 1.5 x 65mm, Cl 10.9

BOLT, , Special Hex, M14 x 65, Cl 10.9

16шт.

8

D142981

GEAR WHEEL

GEAR - ring, planetary

2шт.

9

K395115

WASHER

- tab lock, special

2шт.

10

D142983

SPACER

- pinion gear

2шт.

11

D142982

PINION

GEAR - pinion, axle shaft

2шт.

12

K965313

RING, SNAP

RING - snap, pinion gear retaining

2шт.

13

D142984

WASHER

- thrust, pinion gear, inner

6шт.

14

D142985

SUN GEAR

GEAR - pinion, planetary

6шт.

15

K260211

ROLLER BEARING

BEARING - needle, planetary gear

180шт.

16

D142984

WASHER

- thrust, pinion gear, outer

6шт.

17

K395093

HEADED PIN,12mm OD x 15mm L

PIN - lock, planetary cover

2шт.

18

D142988

CARRIER

COVER - planetary

2шт.

19

D142986

STUD,88mm L

- special, without collar

16шт.

20

D142987

STUD

- special, with collar, for recessed bolt holes

4шт.

21

K395094

DOWEL,M18 x 36

Pin, Planetary cover M18 x 36

4шт.

22

K395029

SCREW

- special, planetary cover

4шт.

23

A156873

PLUG, DRAIN,M22 x 1.5

4шт.

24

D142989

PIN

SHAFT - pinion gear

6шт.

25

K260197

PIN

- pinion gear shaft

6шт.

26

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

- pinion gear shaft

6шт.

27

D143079

COVER

PLATE - planetary cover

2шт.

Ref #27 - D143079 planetary cover plate - This was to sub to D150115 (which is the same except with CASE logo). Both part nbrs are no longer available. Each cover must now be replaced with 3 plugs, part nbr 112624A1.

1шт.

28

K395082

SCREW,M8 x 20mm

- special, planetary cover plate

6шт.

M20704

ADHESIVE

SEALANT - 3 oz. (89 ml) of sealant in a tube, planetary cover to hub, not shown

1шт.
