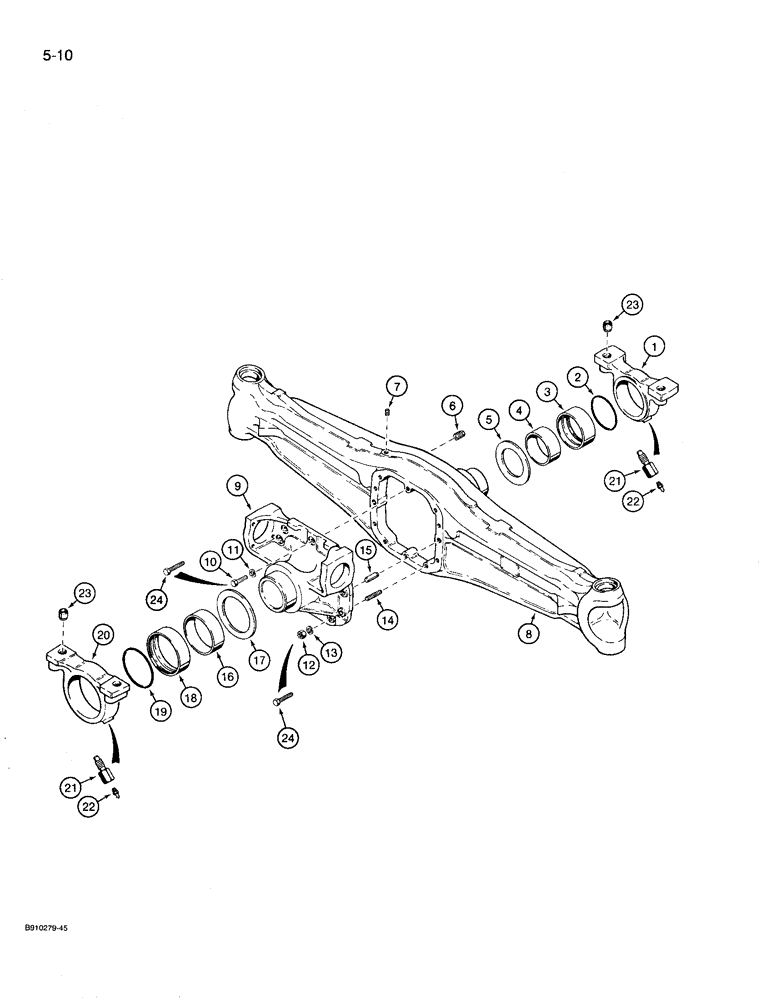

Запчасти Case 780D (5-10) - TWO WHEEL DRIVE FRONT AXLE, AXLE HOUSING, CARRIER, AND SUPPORT (05) - STEERING

D139046

AXLE

ASSEMBLY - Carraro 716-21 front two wheel drive, Carraro No. 123784, parts list Figures 5-10 through 5-14, Includes: Ref. 1 - 24

1шт.

1

D142882

SUPPORT

- front

1шт.

2

K965267

O-RING,0.07" Thk x 4.489" ID

- front support

1шт.

3

K965265

BUSHING

- front support, outer

1шт.

4

K965266

BUSHING

- front support, inner

1шт.

5

K395022

WASHER

- thrust, front support

1шт.

6

A156873

PLUG, DRAIN,M22 x 1.5

Housing, Front M22 x 1.5

1шт.

7

D142898

PLUG,M10 x 1

- housing, top

1шт.

8

D142884

HOUSING

- axle

1шт.

9

D142899

SUPPORT

CARRIER - steering cylinder

1шт.

10

D142889

BOLT

- hex head, 12 mm x 40 mm, no longer available, order Ref. 24, S301064

5шт.

11

K965425

WASHER

- lock, 12 mm, use with Ref. 10, bolt

5шт.

12

905834R1

THIN NUT,M12 x 1.25, Thin

Hex, use with Ref. 14, stud M12 x 1.25, Thin

5шт.

13

K965425

WASHER

- lock, 12 mm, use with Ref. 14, stud

5шт.

14

K262139

STUD

- carrier mounting, no longer available, order Ref. 24, S301064

5шт.

15

D142890

DOWEL

PIN - dowel, carrier

2шт.

16

D142895

BUSHING

- rear support, inner

1шт.

17

D142891

WASHER

- thrust, rear support

1шт.

18

D142892

BUSHING

- rear support, outer

1шт.

19

D142893

O-RING

- rear support

1шт.

20

D142894

SUPPORT

- rear

1шт.

21

D142897

SCREW

- hollow, grease extender

2шт.

22

5194260

LUBE NIPPLE,M6 x 1, 16mm lg

FITTING - grease

2шт.

23

D142896

DOWEL

PIN - dowel, hollow, axle mounting

4шт.

24

5194169

BOLT,Hex Flg, M12 x 33, 12.9

BOLT, , Self-locking, Special Hex Flg, M12 x 33, 12.9

10шт.

M20704

ADHESIVE

SEALANT - 3 oz (89 ml) of sealant in a tube, carrier to axle housing, not shown

1шт.
