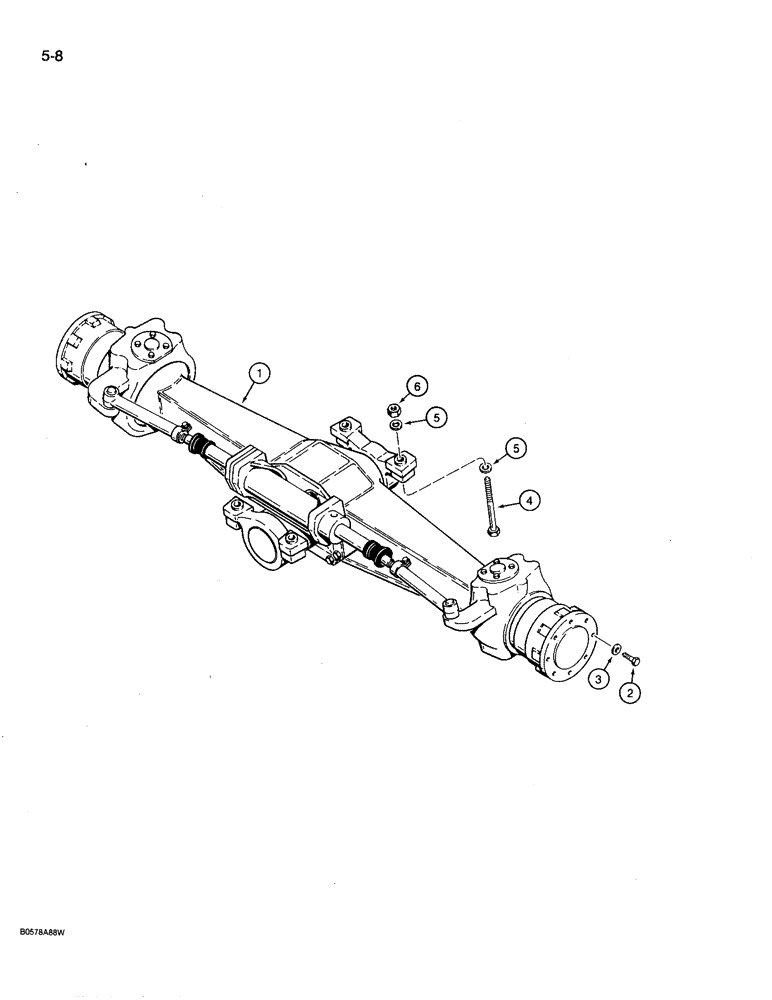

Запчасти Case 780D (5-08) - TWO-WHEEL DRIVE FRONT AXLE AND MOUNTING (05) - STEERING

1

D139046

AXLE

ASSEMBLY - front, two-wheel drive models, parts list Figures 5-10 - 5-14

1шт.

2

114-612

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

16шт.

3

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, 5/8", hardened

16шт.

4

26-12128

BOLT,Hex, 3/4" - 10 x 8", Gr 8

- hex, 3/4 NC x 8 inch, grade 8

4шт.

Do not substitute with plated hardware.

1шт.

5

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, 3/4 inch, hardened

8шт.

Do not substitute with plated hardware.

1шт.

6

29-1012

NUT,3/4"-10, G8

- hex, 3/4 inch NC, grade 8

4шт.

Do not substitute with plated hardware.

1шт.
