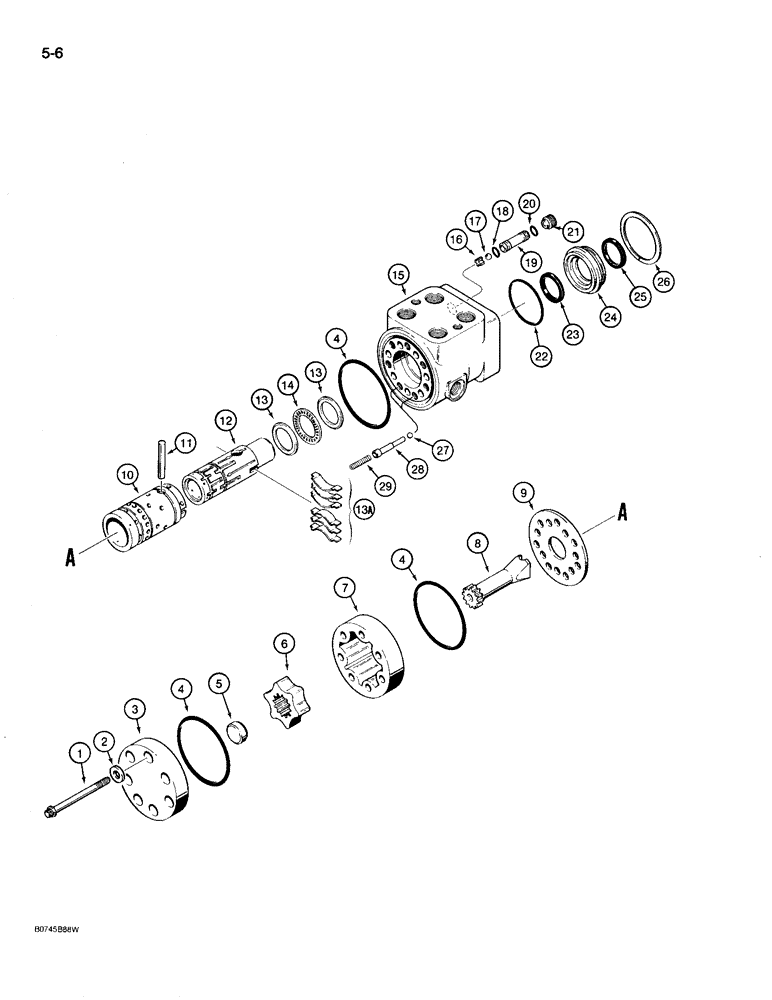

Запчасти Case 780D (5-06) - STEERING CONTROL VALVE (05) - STEERING

D138224

PUMP

CONTROL VALVE ASSEMBLY - steering, Includes: Ref. 1 - 29

1шт.

1

166-529

12 PT SCREW,Flg, 5/16" - 24 x 2", Gr 8

BOLT - Ferry head, 5/16" - 24 NF x 2", grade 8

7шт.

2

D143198

WASHER

- 5/16", special

7шт.

3

D82809

COVER

- end

1шт.

4

N6392

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

- body

3шт.

Part of seal kit P/N D82802.

1шт.

5

D143199

SPACER

- shaft

1шт.

D143197

GEROTOR

SET - steering control valve, Includes: Ref. 6 and 7

1шт.

6

NSS

NOT SOLD SEPARAT

ROTOR - steering control valve

1шт.

7

NSS

NOT SOLD SEPARAT

STATOR - steering control valve

1шт.

8

L30878

DRIVE SHAFT

SHAFT - drive, gerotor set

1шт.

9

S113037

PLATE

- spacer

1шт.

10

NSS

NOT SOLD SEPARAT

SLEEVE - spacer plate

1шт.

11

L30888

PIN

- sleeve

1шт.

12

NSS

NOT SOLD SEPARAT

SPOOL - sleeve

1шт.

13

D82804

RACE

WASHER - thrust, control valve

2шт.

13a

N14250

KIT

- spring, set of six

1шт.

14

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST, Control valve

1шт.

15

NSS

NOT SOLD SEPARAT

BODY - steering control valve

1шт.

16

L35368

RETAINER

- ball

1шт.

17

211-9

BALL,5/16" Dia

- 5/16", grade 200, chrome alloy steel

1шт.

18

L30893

O-RING,1/16" Thk x 5/16" ID

- spool, 7/16 x 5/16 x 1/16 in

1шт.

Part of seal kit P/N D82802.

1шт.

19

D82806

VALVE SEAT

SPOOL - ball retainer

1шт.

20

N8539

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- spool

1шт.

Part of seal kit P/N D82802.

1шт.

21

D82805

SET SCREW

SCREW - set, body

1шт.

22

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

- body

1шт.

Part of seal kit P/N D82802.

1шт.

23

A72029

RING

SEAL - ring

1шт.

Part of seal kit P/N D82802.

1шт.

24

S110170

BUSHING

- seal

1шт.

25

A28211

OIL SEAL

- bushing

1шт.

Part of seal kit P/N D82802.

1шт.

26

S110169

WASHER

RING - retaining, bushing

1шт.

27

211-204

BALL

- 3/16 inch, grade 25, chrome alloy steel

2шт.

28

N14764

PLUG

RETAINER - spring, anticavitation

2шт.

29

N14763

SPRING

- anticavitation

2шт.

D82802

SEAL PACKAGE

KIT - seal, Includes: Ref. 4, 18, 20, 22, 23 and 25

1шт.
