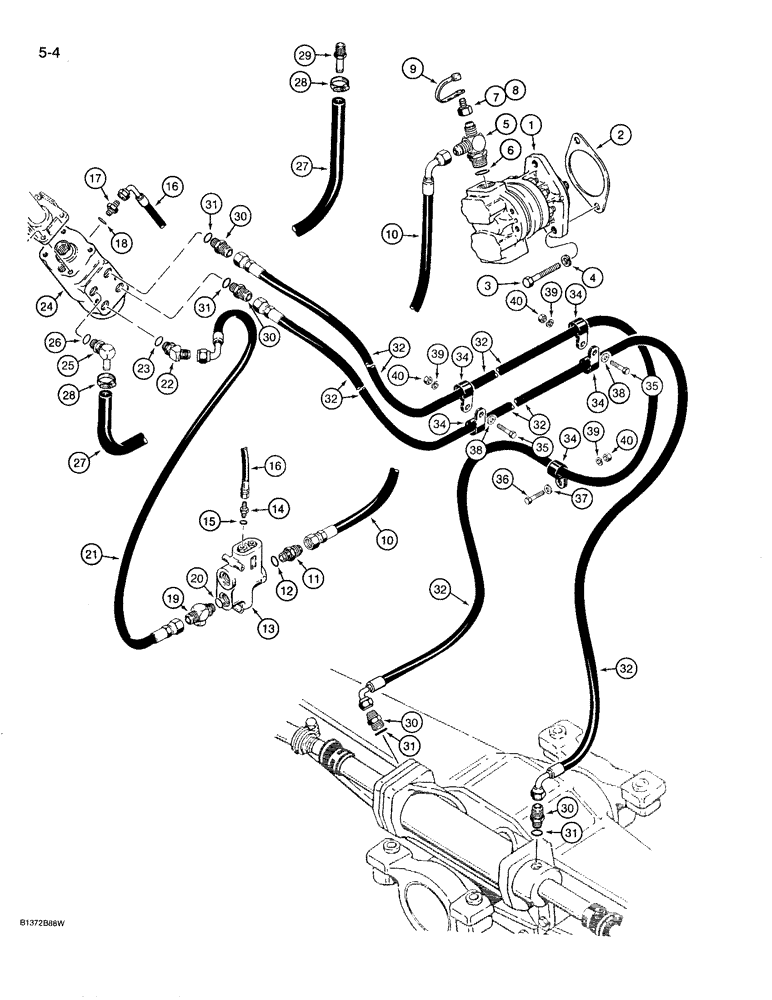

Запчасти Case 780D (5-04) - STEERING HYDRAULIC CIRCUIT, STEERING PUMP TO STEERING CONTROL VALVE & STEERING CYLINDER (05) - STEERING

1

D127917

PUMP

ASSEMBLY - steering hydraulic, front mounted, parts list Figure 8-52

1шт.

2

A77441

GASKET

- hydraulic pump

1шт.

3

814-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

2шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

5

218-5585

TEE,37 Degree, 1 1/16"-12, 1 5/16"-12 O-Ring Run, 1 1/16"-12

- special, Includes: Ref. 6

1шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- tee

1шт.

7

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

COUPLING - pressure check, includes nut, component parts not serviced separately, Includes Ref. 8

1шт.

8

129-132

NUT,1 1/4"-12, G5

Coupling 1 1/4"-12, G5

1шт.

9

H434163

DUST CAP

CAP - dust

1шт.

10

D138296

HOSE ASSY.

HOSE - 25-5/8" (650 mm) long, pump to flow control valve

1шт.

11

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref. 12

1шт.

12

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

13

D132476

VALVE

ASSEMBLY - flow control, parts list Figure 8-94

1шт.

14

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ADAPTER - straight, Incl. Ref. 15

1шт.

15

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Adapter

1шт.

16

D140231

HOSE ASSY.

HOSE - 30-5/16" (770 mm) long, flow control valve to steering control valve

1шт.

17

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ADAPTER - straight, male, Incl. Ref. 18

1шт.

18

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Adapter

1шт.

19

D143744

TEE

- special, Includes: Ref. 20

1шт.

See Figure 8-30 or 8-32 for attaching boom over center anti-leakoff system.

1шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Tee

1шт.

21

D140230

HOSE ASSY.

HOSE - 38" (965 mm) long, steering supply

1шт.

22

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree, Incl. Ref 23

1шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Elbow

1шт.

24

D138224

PUMP

VALVE ASSEMBLY - steering control, parts list Figure 5-6

1шт.

25

217-348

FITTING,90 Degree Elbow, 1/2" Hose Barb x 3/4" - 16 Male ORB

- stem, 90 degree, adjustable, Includes: Ref. 26

1шт.

26

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Stem fitting

1шт.

27

D141874

HOSE

- 15" (380 mm) long, return

1шт.

28

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

29

217-152

FITTING,1/2" Hose Barb x 3/8" Male NPTF

stem, straight 1/2" Hose X 3/8" NPTF Beaded

1шт.

30

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, male, Includes: Ref. 31

4шт.

31

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Adapter

1шт.

32

D138318

HOSE ASSY.

HOSE - 93-3/4" (2380 mm) long, steering control valve to left-hand and right-hand ports of steering cylinder

2шт.

34

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

-, Serial Range: hose-chassis

5шт.

35

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8"-16 NC x 1-1/2"

2шт.

36

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

37

495-21044

WASHER,3/8"

1шт.

38

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch

2шт.

39

492-11038

LOCK WASHER,3/8"

3шт.

40

425-106

NUT,3/8"-16, Cl 5

3шт.
