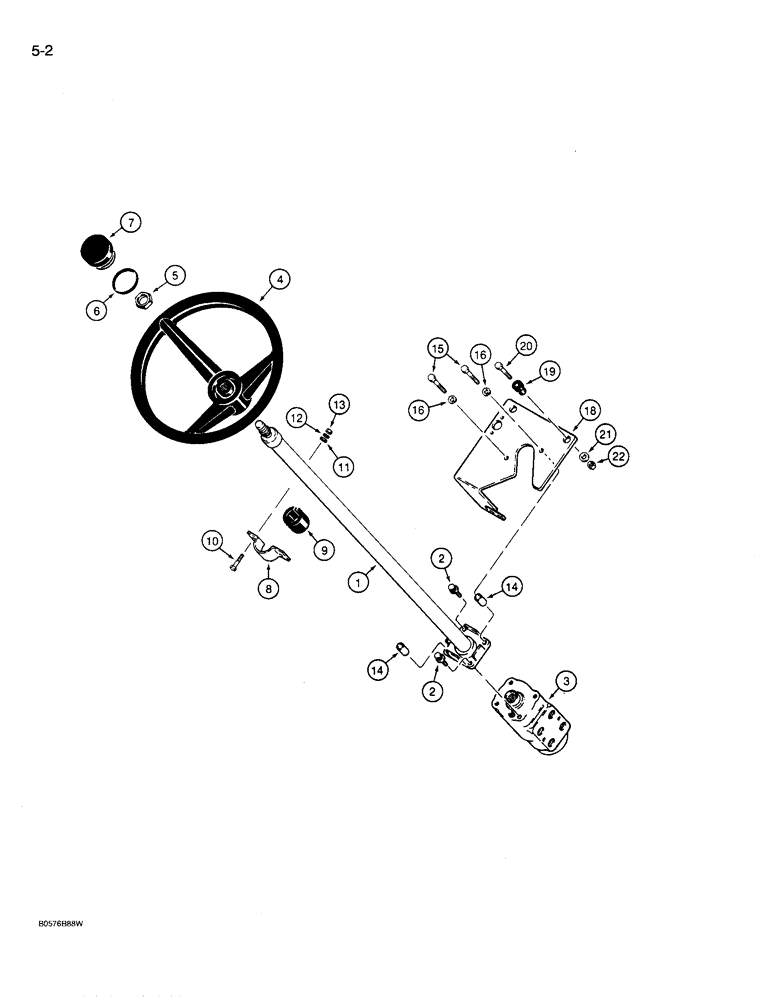

Запчасти Case 780D (5-02) - STEERING WHEEL AND COLUMN (05) - STEERING

1

D80622

STEERING COLUMN

COLUMN ASSEMBLY - steering, component parts not serviced separately

1шт.

2

166-42

12 PT SCREW,Flg, 3/8" - 16 x 5/8", Gr 8

BOLT - Ferry head, 3/8" - 16 NC x 5/8", grade 8

2шт.

3

D138224

PUMP

CONTROL VALVE - steering, parts list Figure 5-6

1шт.

4

A65544

STEERING WHEEL

1шт.

5

F19646

LOCK NUT,13/16"-20, Thin

NUT - special, steering wheel mounting

1шт.

6

A29884

O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

- cap

1шт.

7

114983A1

BEZEL

CAP - steering wheel, (Replaces A62210)

1шт.

A62210 strg wheel cap - This now subs to 114882A1 medallion and A180055 eagle insert. Plain insert is part nbr 1342054C1. In applications other than steering wheel, 114983A1 bezel must also be used. 11/30/95

1шт.

8

D66049

CLAMP

- steering column

1шт.

9

L102644

COLLAR CLAMP

COLLAR - steering column

1шт.

10

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

2шт.

11

495-21038

WASHER,5/16"

2шт.

12

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

13

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

14

D95745

BUSHING

SPACER - plate mounting

2шт.

15

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

2шт.

16

492-11038

LOCK WASHER,3/8"

2шт.

18

L108626

PLATE ASSY.

PLATE - steering mounting

1шт.

19

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

MOUNT - steering

2шт.

20

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

2шт.

21

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- flat, 3/8 inch, hardened

2шт.

22

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

2шт.
