Артикул
Название
Примечание
Количество
D137275
LIGHT, WARNING

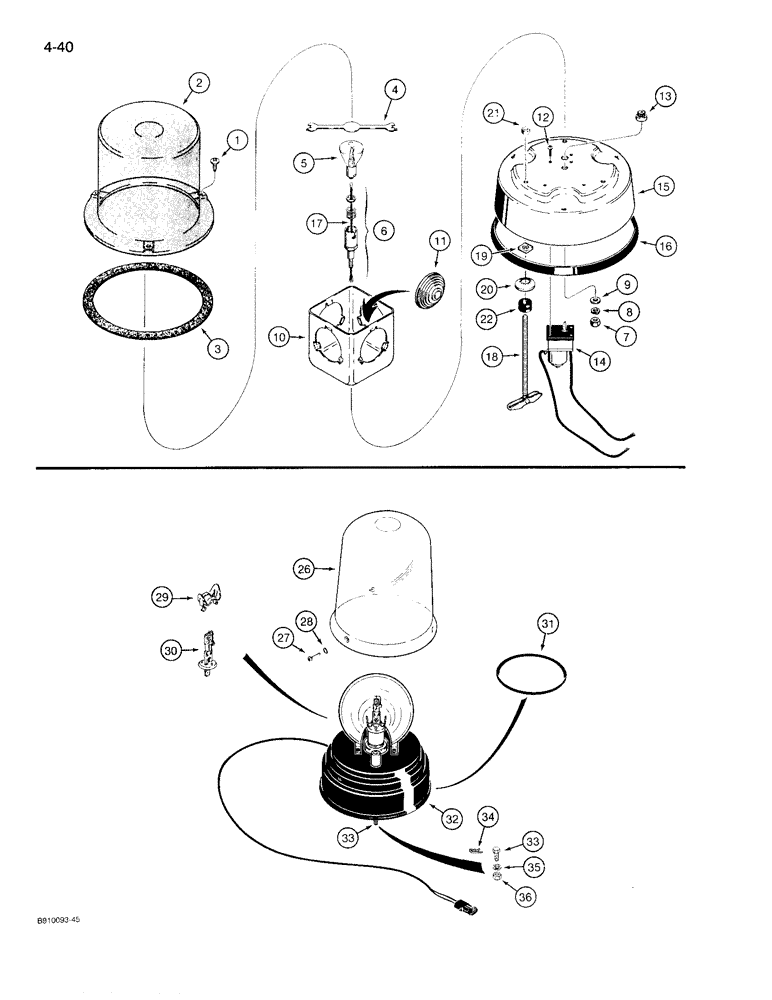

BEACON ASSEMBLY - rotating, Signal Stat, 360 degree, 12 volt, amber lens, no longer available, order D147114 beacon, see below (Ref. 26-36), Includes: Ref. 1 - 25
1шт.
1
187-39
SELF-TAP SCREW,Rd Hd, #12 x 5/8"
SCREW - round head, self-tapping, No. 12 x 5/8"
3шт.
2
N8426
LENS
DOME - rotating beacon
1шт.
3
NSS
NOT SOLD SEPARAT
GASKET - dome
1шт.
4
NSS
NOT SOLD SEPARAT
STRAP - basket
1шт.
5
NLS
NO LONGER SERVICED
- 12 volt, No. 1195
1шт.
6
N8430
SOCKET
ASSEMBLY - beacon, component parts not serviced separately
1шт.
7
9635082
NUT,5/16" - 18, Gr 5
1шт.
8
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
1шт.
9
195-103
WASHER,5/16"
- flat, , plated 5/16"
1шт.
10
NSS
NOT SOLD SEPARAT
BASKET - less lenses
1шт.
11
N8423
GASKET
LENS - beacon
4шт.
12
182-47
SCREW,Sl Pan Hd, #6 - 32 x 5/8"
- machine, pan head slotted, No. 6 - 32 NC x 5/8"
3шт.
13
NSS
NOT SOLD SEPARAT
GEAR - beacon
1шт.
14
N14442
MOTOR
ASSEMBLY - beacon, 12 volt, includes connector which is not serviced separately
1шт.
15
NSS
NOT SOLD SEPARAT
BASE - beacon
1шт.
16
N8422
GASKET
- base
1шт.
17
NSS
NOT SOLD SEPARAT
WIRE - jumper, Serial Range: bulb-motor
1шт.
L35092
KIT
- mounting, includes instruction sheet, Includes: Ref. 18 - 25
1шт.
18
L35148
BOLT
- toggle, No. 10 - 24 NC x 4"
3шт.
19
129-47
NUT
- square, No. 10 - 24 NC, if used
3шт.
20
L35146
LOCK WASHER
WASHER - lock, No. 10
3шт.
21
86625057
NUT,#10-24, GB
NUT, LOCK, #10-24, GB
3шт.
22
F13115
GROMMET
- rubber, mounting
3шт.
23
T29401
NUT
- twist-on, wire, not shown, not required
1шт.
24
A43211
GROMMET
- rubber, wire, if used, not shown
1шт.
25
L35145
HARNESS
WIRE - 8 foot block, not shown
1шт.
D147114
LIGHT, WARNING
BEACON ASSEMBLY - rotating, Britax, 360 degree, 12 volt, amber lens, Includes: Ref. 26 - 36
1шт.
26
A187542
LENS
- beacon, amber
1шт.
27
168-71
DRIVE SCREW,Type U, Rnd Hd, #8 x 1/2"
- drive, No. 8 x 1/2 inch, Lens mounting
3шт.
28
S5598
O-RING,0.106" ID x 0.218" OD x 0.73"
SEAL - lens mounting screw
3шт.
29
NSS
NOT SOLD SEPARAT
CLIP - bulb
1шт.
30
3217312R1
BULB,H1, 12V, 55W
12V - 55W, Halogen, Rotating beacon
1шт.
31
A187575
O-RING
Drive Motor, Rotating Beacon
1шт.
32
NSS
NOT SOLD SEPARAT
BASE ASSEMBLY - with drive motor, rotating beacon
1шт.
33
814-6020
BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd
- hex, 6 mm - 1.0 x 20 mm
3шт.
34
136-54
PIN
- cotter, retains bolt, Serial Range: head-base
3шт.
35
NSS
NOT SOLD SEPARAT
WASHER - lock, 6 mm
3шт.
36
NSS
NOT SOLD SEPARAT
NUT - hex, 6 mm - 1
3шт.
Выбрано товаров: 39
