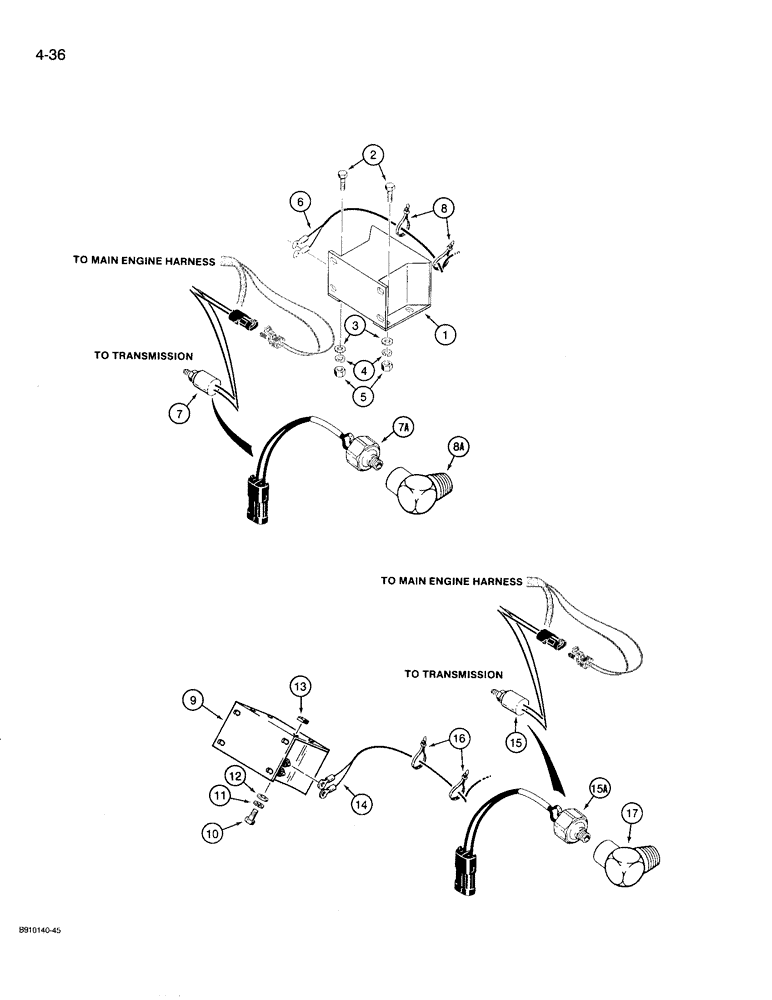

Запчасти Case 780D (4-36) - BACKUP ALARM, REAR CHASSIS MOUNTED (04) - ELECTRICAL SYSTEMS

1

D121972

ALARM

- backup, electric, rectangular type

1шт.

2

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

3

195-103

WASHER,5/16"

- flat, , plated 5/16"

2-4шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

5

9635082

NUT,5/16" - 18, Gr 5

2шт.

6

D137816

HARNESS

WIRE - harness to backup alarm

1шт.

7

L116235

IGNITION SWITCH

SWITCH - pressure, alarm, to transmission, no longer available, order Ref. 7A, D147334 switch and 8A, 217-1014 elbow

1шт.

7a

D147334

IGNITION SWITCH

SWITCH - pressure, Serial Range: alarm-transmission

1шт.

8

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

8a

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

Street 90º, 1/8"-27 Female x 1/8"-27 Male

1шт.

9

D121972

ALARM

- backup, electric, rectangular type, fuel tank mounted

1шт.

10

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

Fuel tank mounted Hex, 5/16"-18 x 5/8", G5, Full Thd

2шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Fuel tank mounted 5/16"

2шт.

12

195-103

WASHER,5/16"

- flat, 5/16 inch, fuel tank mounted

2шт.

13

25-225

SQUARE NUT,Sq, 5/16"-24

- square, 5/16 inch NC, fuel tank mounted

2шт.

14

D137816

HARNESS

WIRE - harness to backup alarm, fuel tank mounted

1шт.

15

L116235

IGNITION SWITCH

SWITCH - pressure, alarm to transmission, no longer available, order Ref. 15A, D147334 switch and 15A, 217-1014 elbow, fuel tank mounted

1шт.

15a

D147334

IGNITION SWITCH

SWITCH - pressure, alarm to transmission, fuel tank mounted

1шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon, fuel tank mounted

1шт.

17

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

Street, Fuel tank mounted 90º, 1/8"-27 Female x 1/8"-27 Male

1шт.
