Запчасти Case 780D (4-30) - TRACTOR LAMP ELECTRICAL CIRCUIT, WITH CAB (04) - ELECTRICAL SYSTEMS

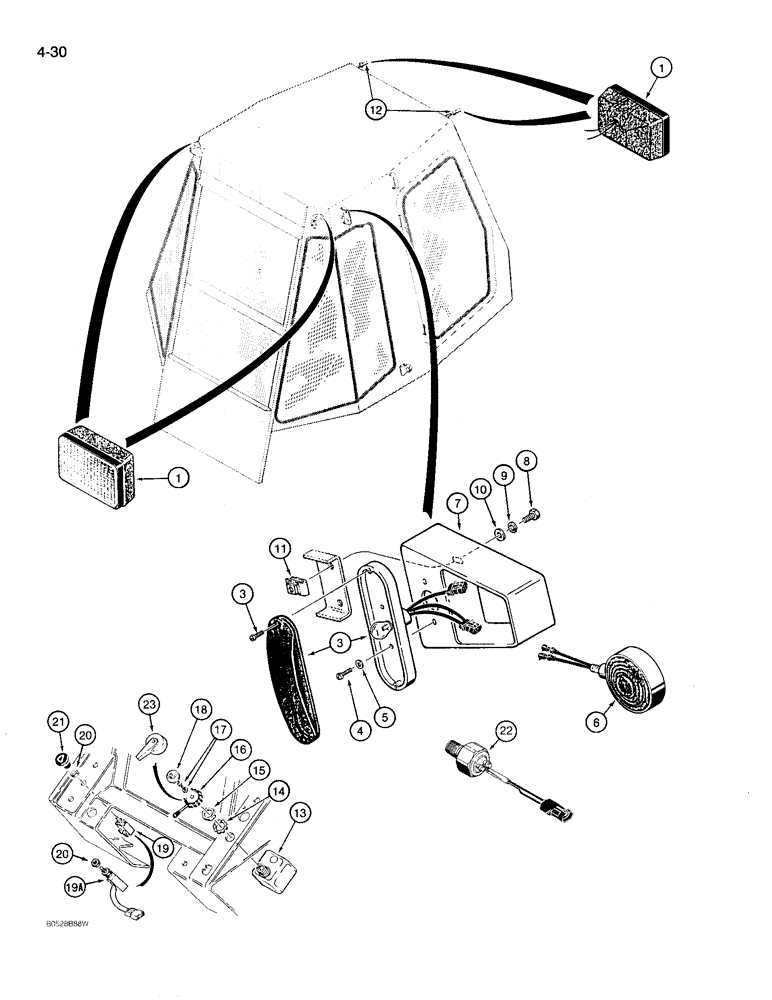

Схема запчастей Case 780D - (4-30) - TRACTOR LAMP ELECTRICAL CIRCUIT, WITH CAB (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

D137294

LIGHT ASSY.

LAMP ASSEMBLY - front driving and rear flood, halogen, front driving used without hinge bracket, parts list Figure 4-32, for lamp mounting see Figure 9-92, for cab harness, see Figure 9-108

4шт.

3

D137293

LAMP

ASSEMBLY - stop and tail, parts list Figure 4-32

2шт.

4

187-1917

SELF-TAP SCREW,Pan Hd, #8-16 x 5/8"

SCREW - pan head, self-tapping, No. 8 x 5/8", plated

4шт.

5

195-510

WASHER,#8

- flat, No. 8, plated

4шт.

6

D137290

LAMP

ASSEMBLY - flasher and turn signal, parts list Figure 4-34

2шт.

7

D120124

BRACKET

- side lamps

2шт.

8

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

10

195-103

WASHER,5/16"

- flat, , plated 5/16"

4шт.

11

131-636

SPRING NUT,J, Ret, 5/16"-18

- J-type, 5/16" - 18 NC

4шт.

12

D137814

HARNESS

- cab, see Figure 9-108 for cab harness and control panel

1шт.

13

A77184

SWITCH

- turn signal

1шт.

14

193-98

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

1шт.

15

D91352

JAM NUT

- special

1шт.

16

A141736

KNOB

- turn signal switch, no longer available, order A177140 knob, Ref. 23

1шт.

17

193-556

SCREW,SEMS, Pan Hd, #5-40 x 1/2"

- with lock washer, No. 5 - 40 NC x 1/2", black

1шт.

18

A160035

PLATE

- knob, turn signal switch insert, used with A141736 knob, item 16

1шт.

19

D74330

SWITCH

- flasher, no longer used, order D145075 switch, Ref. 19A, see Figure 4-20 for front and rear lamp switches

1шт.

19a

D145075

SWITCH

- flasher, see Figure 4-20 for front and rear lamp switches, Includes: Ref. 20

1шт.

20

N7557

NUT

- special, 38" - 24 NF, switch retaining

1шт.

21

D88134

KNOB

- flasher switch

1шт.

22

D138955

SWITCH

- pressure, stop lamp, mounts in tee at brake master cylinder, see Figure 7-6, Ref. 18, for tee

2шт.

23

A177140

KNOB

- turn signal switch

1шт.

Выбрано товаров: 23
