Артикул
Название
Примечание
Количество

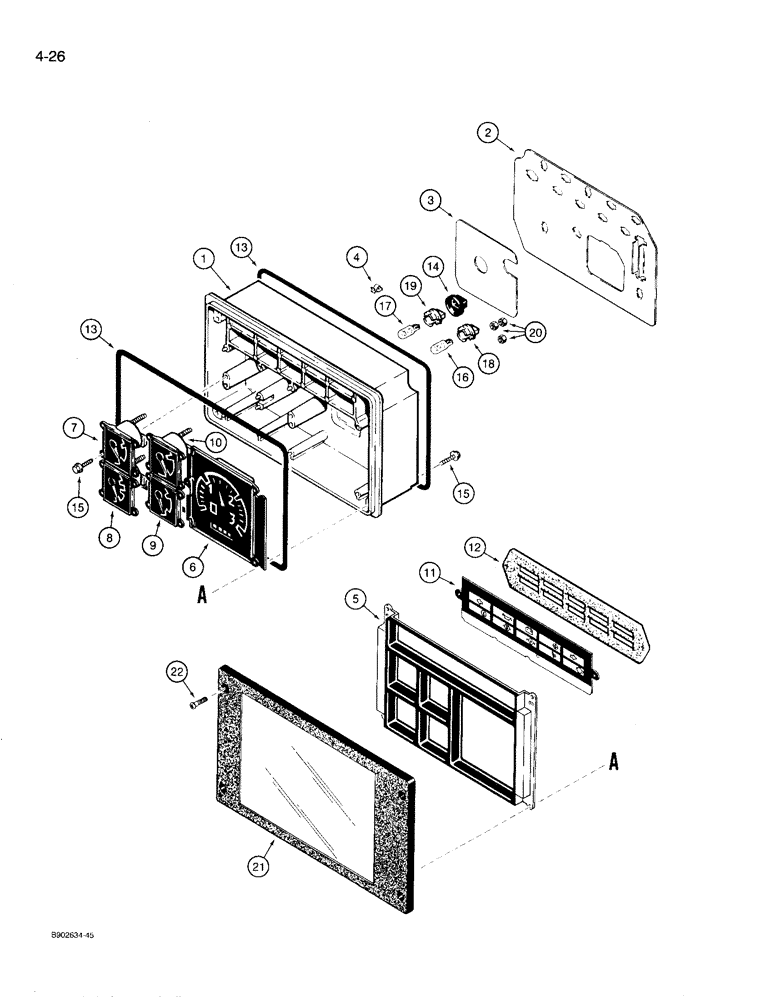

A187965
CLUSTER
ASSEMBLY - instrument, tractor (replaces D144970 cluster), Includes: Ref. 1 - 21
1шт.
A187965R
REMAN-INSTR CLUSTER
780D
1шт.
A187965C
CORE-CLUSTER, INSTR
Return Number
1шт.
A191114
HOUSING
ASSEMBLY - instrument cluster, Includes: Ref. 1 - 4
1шт.
1
N13545
INSTRUMENT PANEL
- instrument cluster
1шт.
2
H422774
BOARD, PRINTED CIRCU
BOARD - printed circuit, instrument cluster
1шт.
3
H422758
GASKET,1.52mm Thk
- housing
1шт.
4
H422766
CLIP, SPRING
CLIP - gauges
12шт.
5
N14227
COVER
- instrument cluster
1шт.
6
N13543
TACHOMETER
GAUGE - tachometer, includes hourmeter
1шт.
7
N13542
GAUGE
- water temperature
1шт.
8
A47688
ELECTRICAL GAUGE
GAUGE - fuel level
1шт.
9
N6807
ELECTRICAL GAUGE
GAUGE - voltmeter
1шт.
10
N13546
GAUGE
- oil temperature
1шт.
11
D146335
BAND
LENS - identification, warning lamps
1шт.
12
D71342
GASKET,3.05mm Thk
- lens
1шт.
13
D71343
GASKET,4.45mm Thk x 249.68mm ID
- instrument cluster
2шт.
14
D71344
COVER
BOOT - lamp socket, rubber
3шт.
15
A45093
SCREW,Hex Slotted, 12.70"
- special
12шт.
16
D71346
TAIL LAMP,12V
BULB - warning, No. 168
8шт.
17
W10478
LAMP
BULB - illumination, No. 194
3шт.
18
A47123
SOCKET/RECEPTACLE
SOCKET - lamp
8шт.
19
A47125
PEDESTAL
SOCKET - lamp, green
3шт.
20
225-14106
NUT,#6-32
3шт.
21
N14225
SHIELD
- instrument cluster
1шт.
22
440-1108
SCREW,Cross Pan Hd, #10-24 x 1/2"
- machine, pan head Phillips, No. 10 NC x 1/2 inch
4шт.
Выбрано товаров: 26
