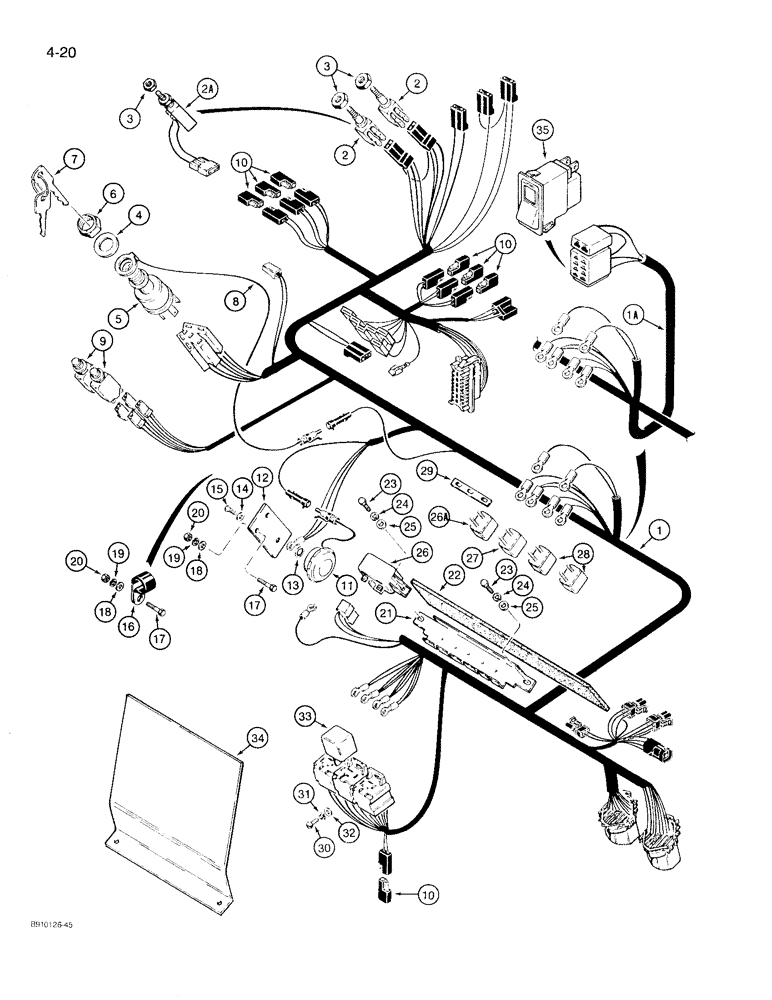

Запчасти Case 780D (4-20) - ELECTRICAL CIRCUIT, INSTRUMENT HARNESS AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

D145590

HARNESS

- instrument, no longer available, order item 1A, D147731 harness

1шт.

1a

D147731

HARNESS

- instrument

1шт.

This harness includes a connector for the four wheel drive engagement/disengagement switch. This connector is not used on models prior to P.I.N. JJG0071816.

1шт.

2

D74330

SWITCH

- lamp, no longer used, order D145075 switch, Ref. 2A

2шт.

2a

D145075

SWITCH

- lamp, Includes: Ref. 3

2шт.

3

N7557

NUT

- special, 3/8" - 24 NF, switch retaining

1шт.

4

L31557

WASHER

- special, if used

1шт.

D134737

IGNITION SWITCH

KEY SWITCH ASSEMBLY - includes keys, Includes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

KEY SWITCH - without keys

1шт.

6

A77314

NUT

- key switch mounting

1шт.

7

A77313

SET OF 2 KEYS

KEYS - set of two; metal without padding

1шт.

8

D137820

HARNESS

WIRE - ignition, Serial Range: switch-ground

1шт.

9

D141170

BREAKER

- circuit, 12 ampere

2шт.

10

L71879

DIODE ELEMENT,400V, 3A

DIODE - isolation

7шт.

11

D137308

ALARM

- warning, buzzer

1шт.

12

L105849

BRACKET

- insulating

1шт.

13

193-91

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, Int Tooth, #8

1шт.

14

195-510

WASHER,#8

- flat, No. 8, plated

1шт.

15

182-510

SCREW,Sl Pan Hd, #8 - 32 x 1/2"

- machine, pan head slotted, No. 8 - 32 NC x 1/2", plated

1шт.

16

R14668

CLAMP

- harness

1шт.

17

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

18

195-102

WASHER,1/4"

- flat, , plated 1/4"

3шт.

19

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

20

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

3шт.

21

D75355

BRACKET

- circuit breaker mounting

1шт.

22

K303176

FOAM

STRIP - 1-29/32" (49 mm) wide x 14-23/32" (374 mm) long x 5/32" (4 mm) thick, foam, adhesive back

1шт.

23

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

3шт.

24

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

25

195-102

WASHER,1/4"

- flat, , plated 1/4"

3шт.

26

1546541C1

RELAY

- starter, Replaces: P/N D144471

1шт.

P/N D144471 starter relay now subs to P/N 1546541C1 relay which is a sealed unit. Production unit is not sealed.

1шт.

26a

D137004

BREAKER

- circuit, 15 amperes

1шт.

27

D137003

BREAKER

- circuit, 20 amperes

1шт.

28

D137002

BREAKER

- circuit, 30 amperes

2шт.

29

D137652

BAR

PLATE - circuit breaker bar

1шт.

30

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- machine, pan head slotted, No. 10 - 24 NC x 1/2", plated

3шт.

31

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

3шт.

32

195-101

WASHER,3/16"

- flat, , plated 3/16"

3шт.

33

D128310

RELAY

- 30 amperes, cab, main, and parking brake alarm

3шт.

P/N D128310 relay is marked 40 amp. on the relay-this is the RESISTANCE rating. The INDUCTIVE rating is 30 amps. We use this inductive rating in our literature.

1шт.

34

D138725

GUARD

PLATE - harness guard

1шт.

35

92343C1

SWITCH

- four wheel drive engagement/disengagement, see Figure 9-136 for decal, Ref. 65, Start Serial: JJG0071816

1шт.
