Артикул
Название
Примечание
Количество

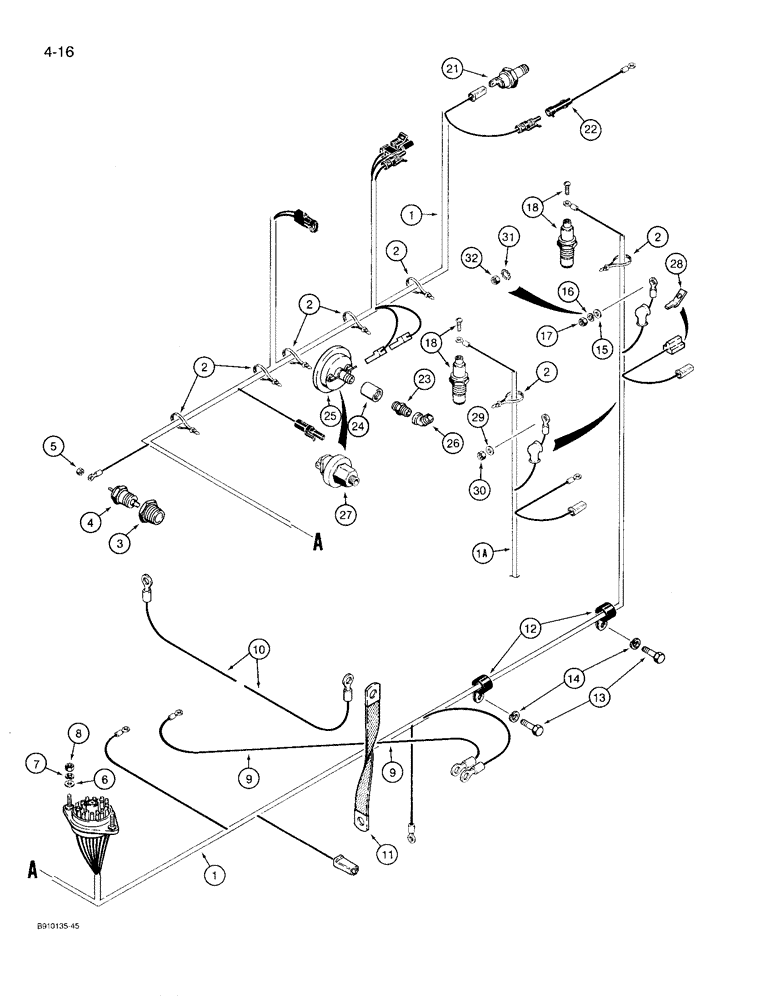

1
D145591
HARNESS
- front, has contact lock-type connector to alternator D+ terminal
1шт.
1a
D148447
HARNESS
- front, has eyelet connector to connect to alternator D+ terminal
1шт.
2
L18337
CABLE TIE,9.95"-12.1" lg
STRAP - tie, 15 inch, nylon
6шт.
3
221-1093
REDUCER,Hex, 3/4" x 1/2" NPT
- 3/4" x 1/2" NPT, water temperature sender
1шт.
5
193-1000
NUT,Keps, w/LW,#10-32
- with lock washer, No. 10 - 32 NF, plated
1шт.
6
195-102
WASHER,1/4"
- flat, , plated 1/4"
2шт.
7
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
2шт.
8
7770
NUT,Hex, 1/4 - 20, Cl 5
1/4"-20, G5
2шт.
9
D137651
CABLE
WIRE - battery circuit, Serial Range: breaker-starter
1шт.
10
D137670
CABLE
WIRE - ground
1шт.
11
D127018
STRAP
- ground
1шт.
12
49836
CLAMP
- harness
2шт.
13
814-12025
BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd
- hex head, 12 mm - 1.75 x 25 mm, plated
2шт.
14
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
15
195-518
WASHER,1/4", SAE
- flat, 1/4", plated, A186125 alternator
1шт.
16
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, , A186125 alternator 1/4"
1шт.
17
825-1106
NUT,Hex, M6, Cl 8
- hex, 6 mm-1, plated, A186125 alternator
1шт.
18
L107257
SWITCH
SENDER - temperature
1шт.
22
D138756
ELECTRICAL WIRE
WIRE - fuel shutoff
1шт.
23
D36264
FITTING
- filter, air restriction indicator, if used
1шт.
24
221-1335
COUPLING,Pipe, 1/8" NPT
if used Pipe, 1/8" NPT
1шт.
25
L103131
INDICATOR
SENDER - air filter restriction indicator, if used
1шт.
26
221-365
ELBOW,45 Degree, 1/8" NPT
- 45 degree, at air cleaner
1шт.
27
1983233C1
RESTRICTION SWITCH
SENDER - air filter restriction indicator switch, replaces Ref. 23, 24, and 25 shown above
1шт.
28
A187990
TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm
TERMINAL - blade, alternator, if used, use with A187873 alternator on models with D145591 harness
1шт.
29
493-21020
LOCK WASHER,Int Tooth, #10
WASHER, LOCK, (3/16"), A187873 alternator Int Tooth, #10
1шт.
30
825-1105
NUT,M5, Cl 8
- hex, 5 mm - .8, A187873 alternator
1шт.
31
493-21033
LOCK WASHER,Int Tooth, 5/16"
WASHER - external tooth lock, 5/16 inch, A187873 alternator
1шт.
32
825-1108
NUT,Hex, M8, Cl 8
A187873 alternator Hex, M8, Cl 8
1шт.
Выбрано товаров: 31
